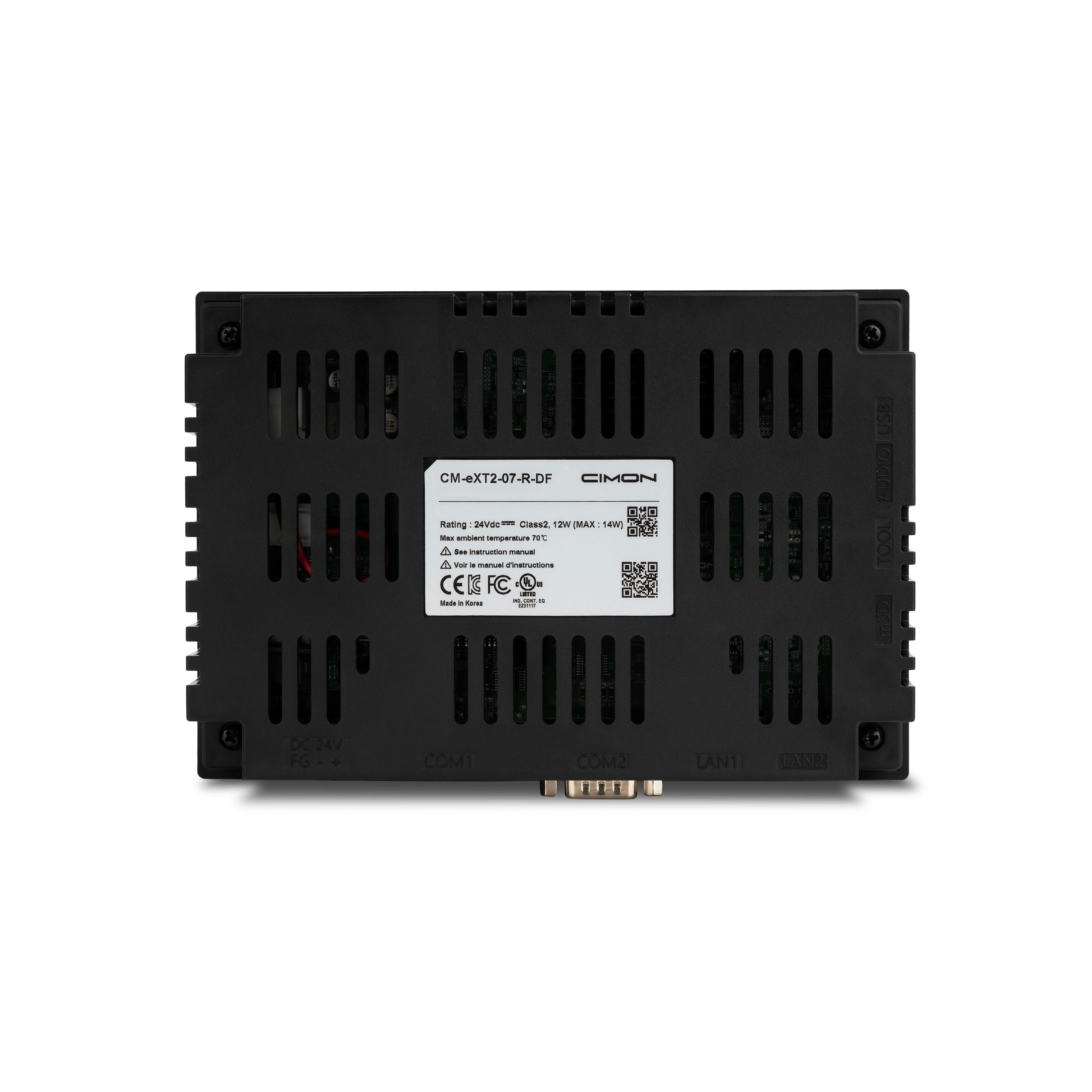

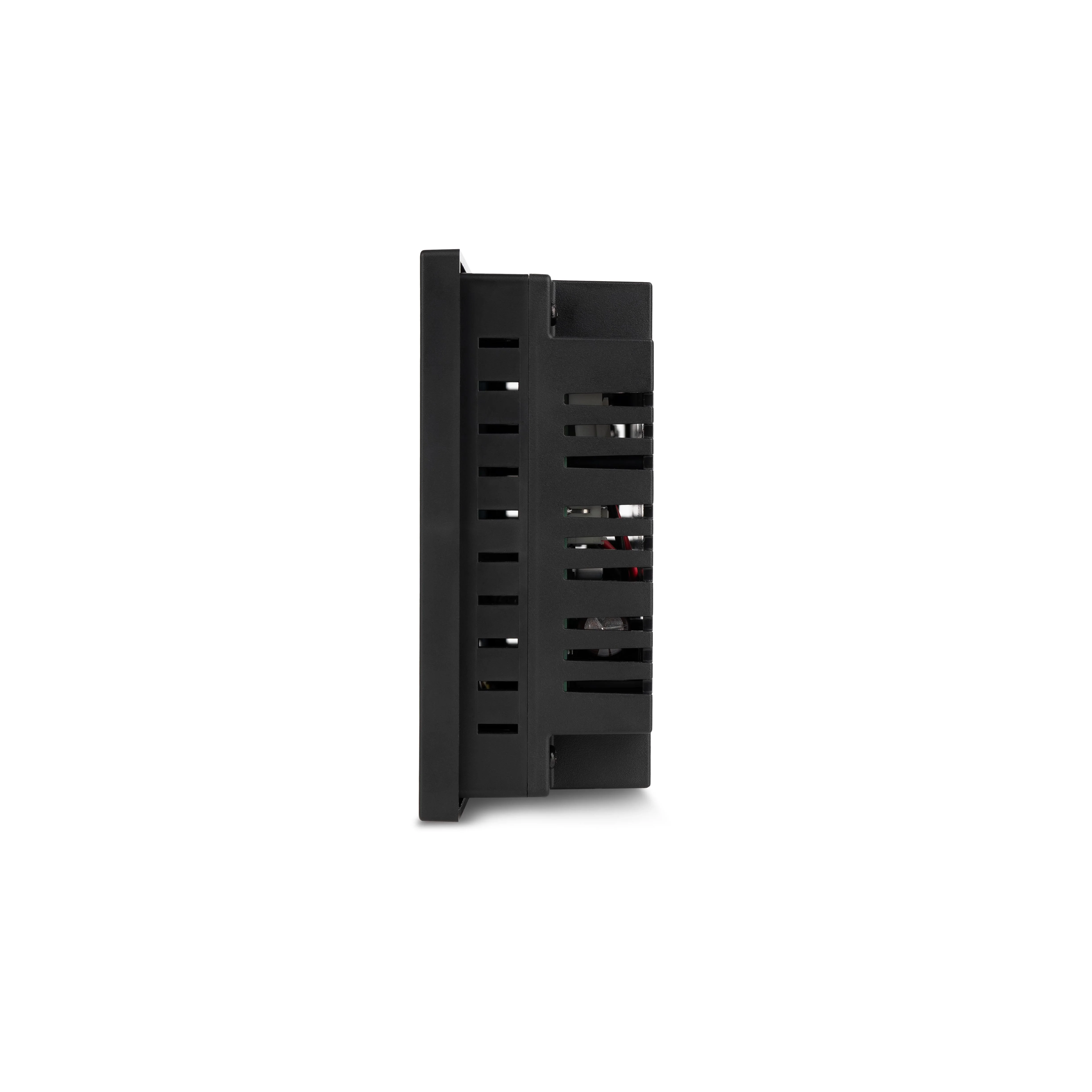

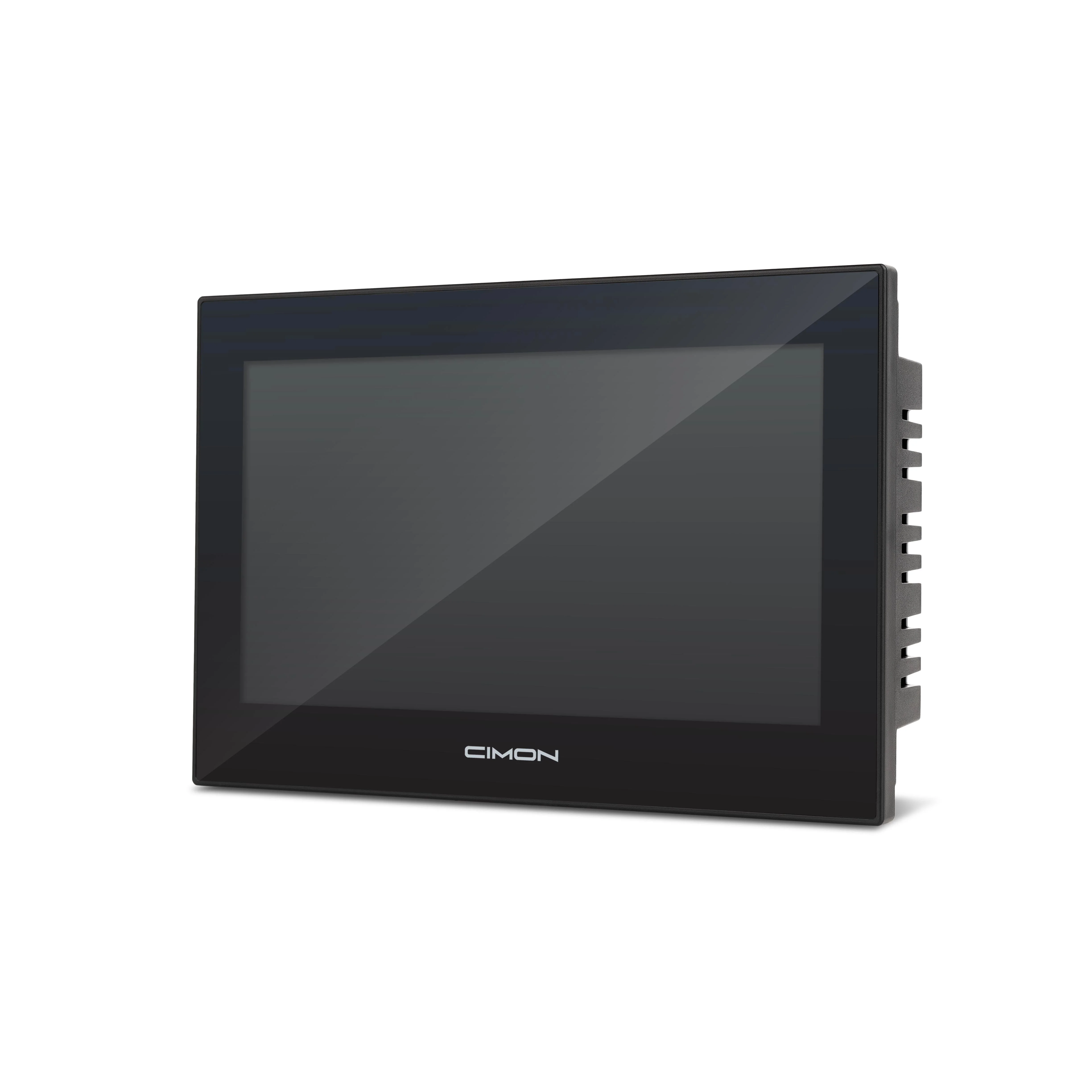

7 inch eXT2 Xpanel Advanced HMI (CM-eXT2-07-R-DF)
1024 x 600 high resolution display
IP68 protection with industrial durability
Dual Ethernet connectivity
Price
Price Available on Request
Fast Shipping Available
Technical Support Included
Certifications: UL, CE, FCC, IP68
Technical Specifications at a Glance
Detailed technical specifications for the Cimon eXT2 HMI display system with industrial-grade performance and connectivity.
PARAMETER
SPECIFICATION
Display Size
7 inch
Display Type
Wide TFT Color
Resolution
1024 x 600 WSVGA
Touch Type
4-wire resistive single touch
RAM
2 GB LPDDR4
Storage
8 GB eMMC
Power
24 VDC, 12W
Operating Temperature
-20 to +70°C
Dimensions
185 x 127 x 51.9 mm
Country of Origin
🇰🇷
South Korea
Engineered to Outperform
Advanced features and industrial-grade construction deliver reliable performance in demanding manufacturing environments.
High Resolution Display
1024 x 600 WSVGA resolution with 16.7M colors delivers crisp, clear visual data for precise monitoring and control in industrial environments.
Industrial Protection
IP68 front protection rating ensures reliable operation in harsh environments with dust, moisture, and chemical exposure protection.
Dual Connectivity
Dual Ethernet ports provide redundant connectivity and enhanced network reliability for mission-critical industrial automation systems.
Powerful Processing
2 GB LPDDR4 RAM and 8 GB eMMC storage deliver fast response times and reliable data processing for complex HMI applications.
Wide Temperature Range
Operating temperature range of -20 to +70°C ensures reliable performance across diverse industrial environments and climate conditions.
Flexible Connectivity
Multiple communication ports including RS-422/485, RS-232C, USB Type A, and USB-C provide versatile integration options.
Frequently Asked Questions
What connectivity options are available?

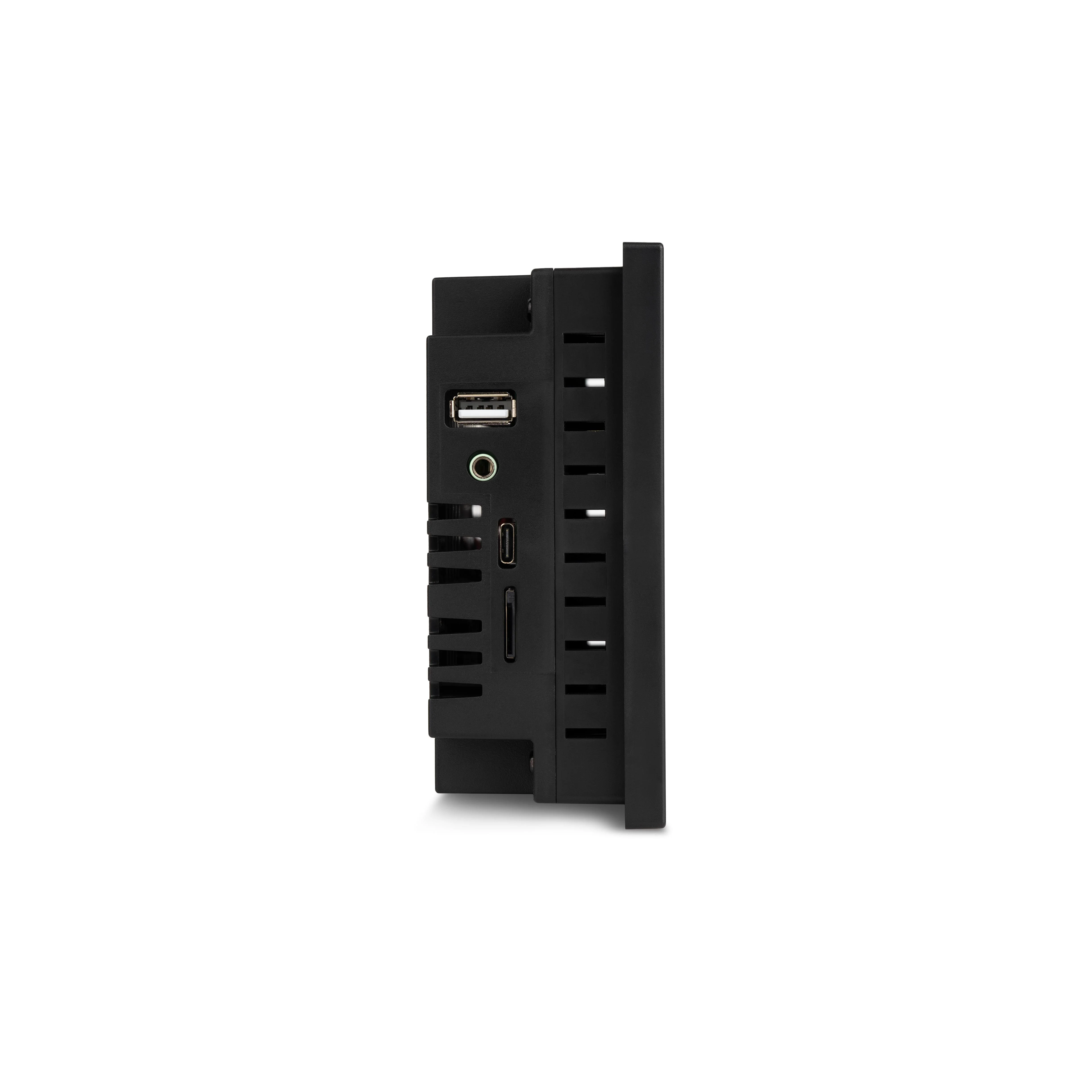

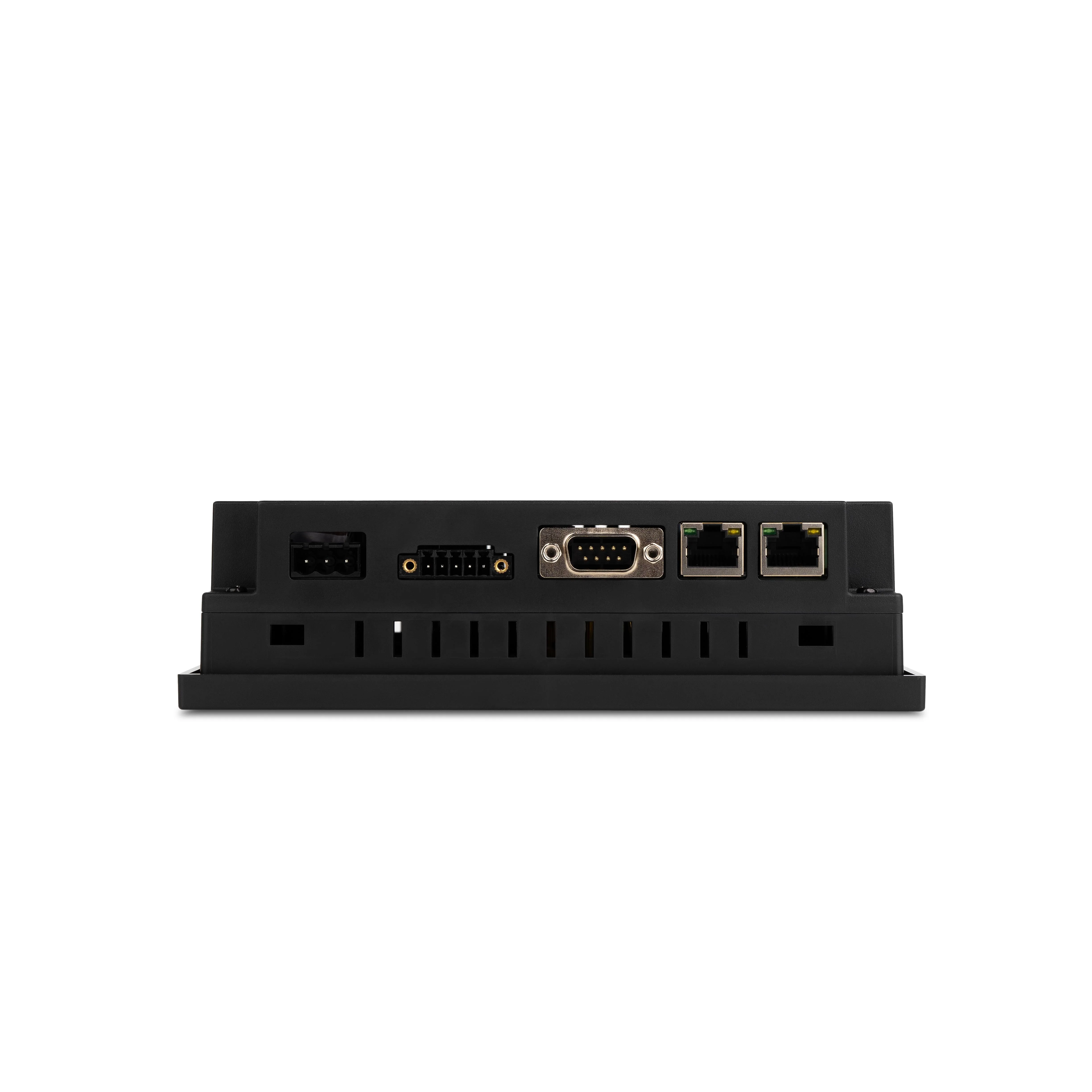

The unit includes dual Ethernet ports (10/100/1000), RS-422/485 and RS-232C serial ports, USB Type A, USB-C tool port, MicroSD card slot, and audio line-out for comprehensive connectivity options.
How accurate is the touch interface?
The 4-wire resistive single touch interface provides ±2% accuracy, ensuring precise control input for industrial applications requiring reliable and accurate operator interaction.
What are the power requirements?
The unit operates on 24 VDC with 12W power consumption and 14W maximum power draw. Maximum inrush current is 30A, making it suitable for standard industrial power systems.
Is technical support available for installation and configuration?
Yes, ValuAdd provides comprehensive technical support including installation guidance, configuration assistance, and ongoing support. Manual and datasheet resources are also available for reference.
