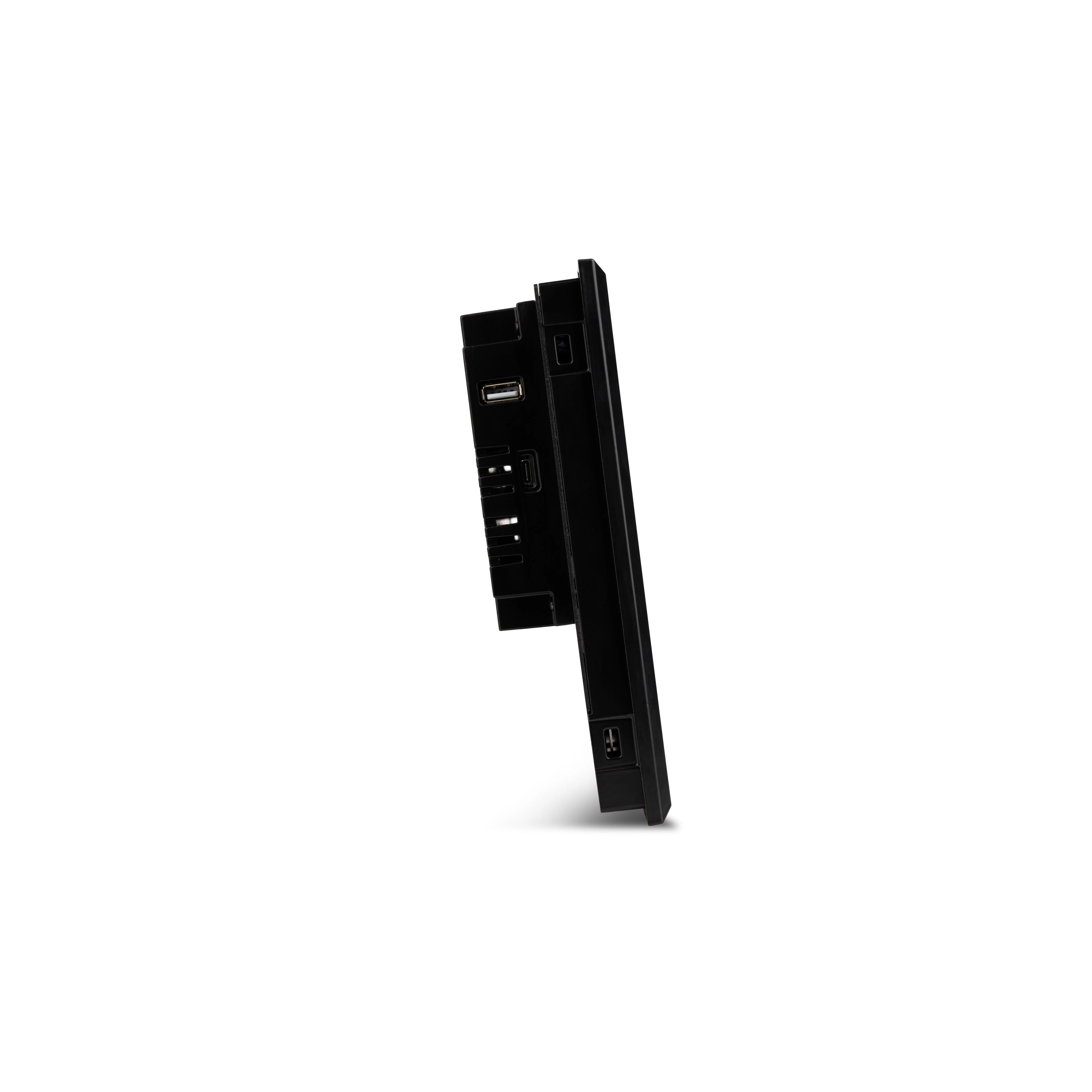

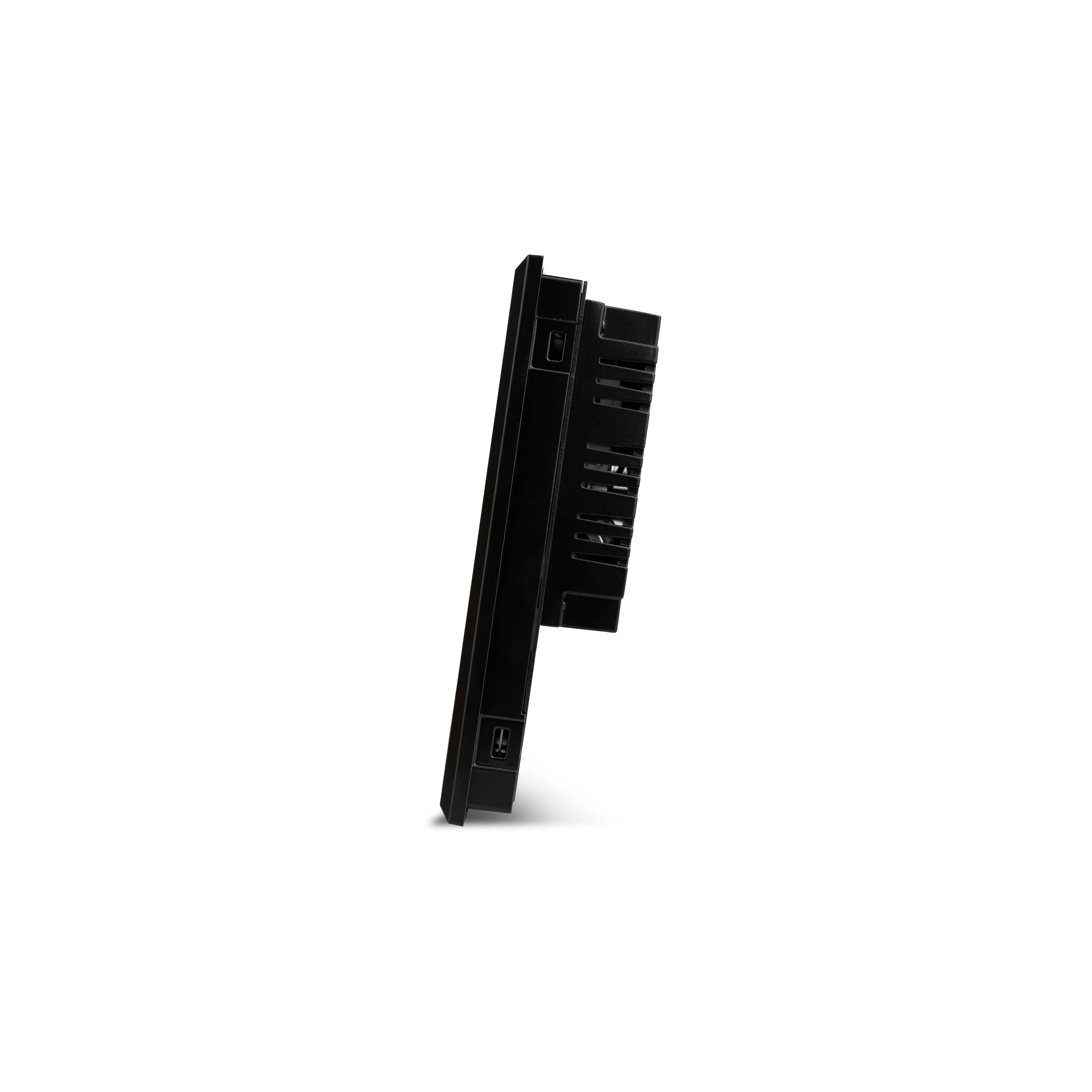

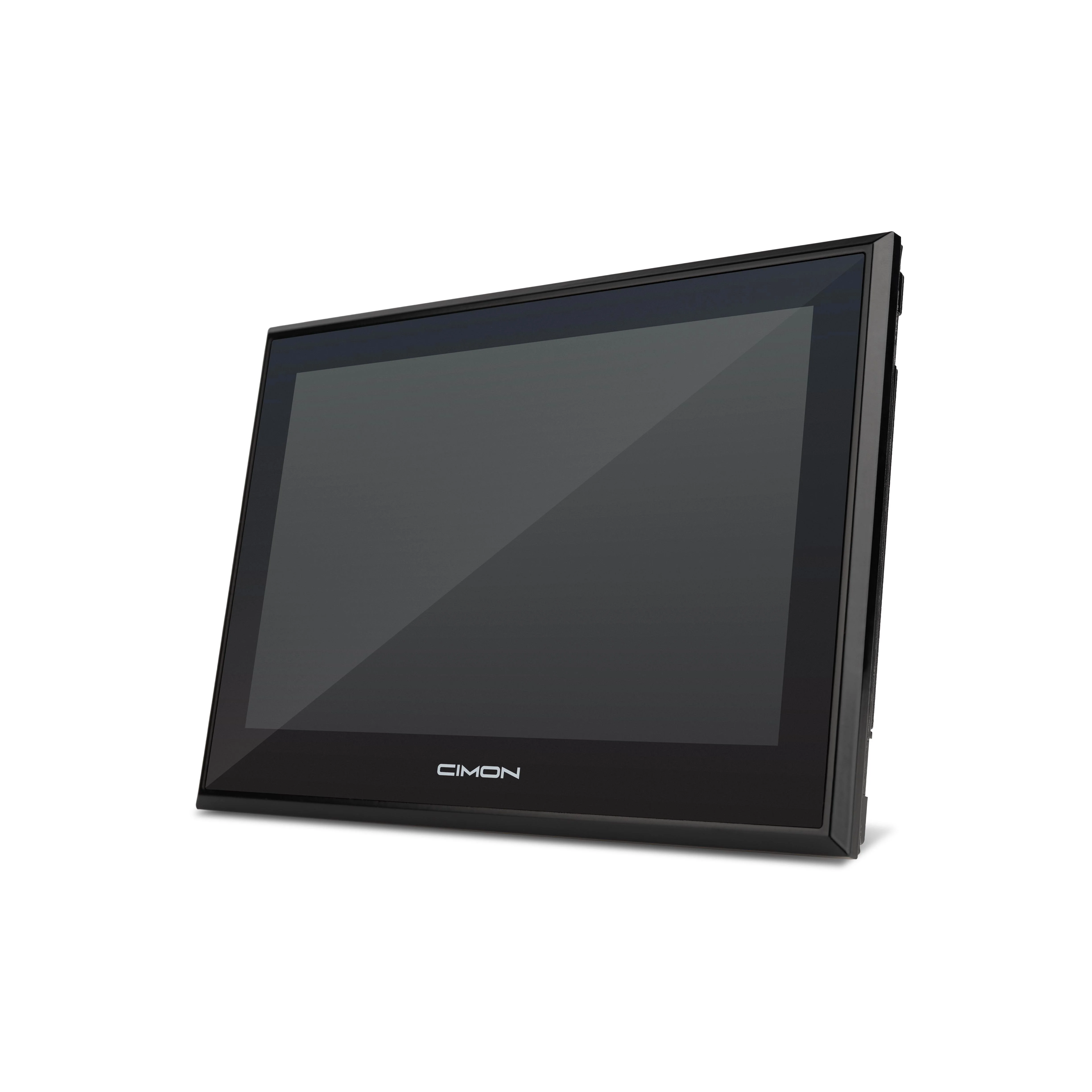

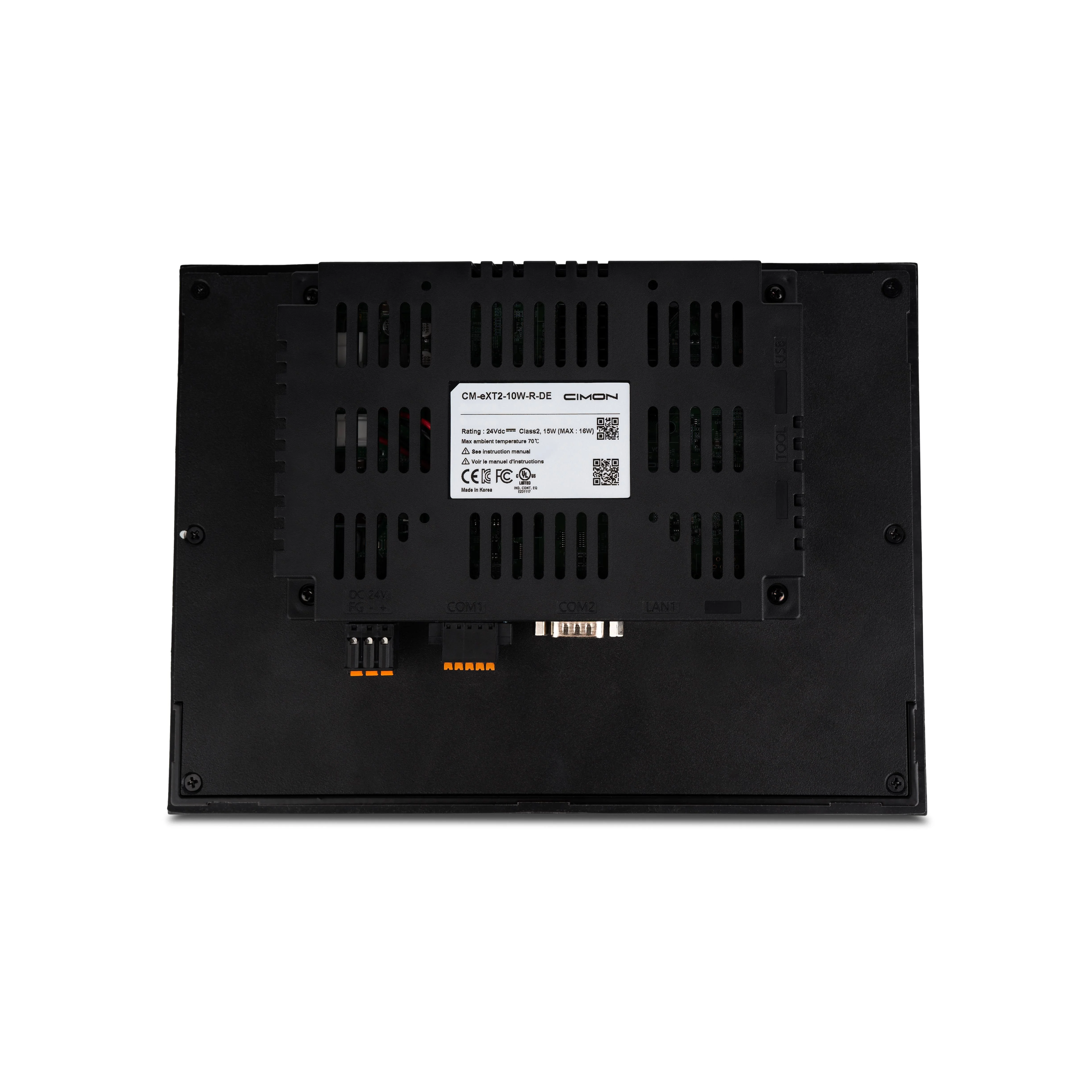

CM-eXT2-10W-R-DE - 10.1 inch, eXT2 Xpanel, Base HMI
10.1" TFT Color Display with 1280 x 800 Resolution
IP66 Front Protection with NEMA 4X/12 Rating
Embedded Linux OS with 2GB LPDDR4 Memory
Price
Price Available on Request
Fast Shipping Available
Technical Support Included
Certifications: UL, CE, FCC, IP66
Technical Specifications at a Glance
Complete technical specifications for the CM-eXT2-10W-R-DE HMI panel system including display, connectivity, and performance parameters.
PARAMETER
SPECIFICATION
Display Size
10.1 inch
Display Type
Wide TFT Color
Resolution
1280 x 800 WXGA (16:10)
Touch Panel
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Connectivity
Ethernet (10/100/1000), RS-422/485, RS-232C
Power Consumption
15W (16W max)
Operating Temperature
0-65°C
Protection Rating
IP66 front, NEMA Type 4X/12
Country of Origin
🇰🇷
South Korea
Engineered for Industrial Excellence
Advanced HMI technology designed to deliver reliable performance, robust connectivity, and seamless integration in demanding industrial environments.
High-Resolution Display
Crystal-clear 10.1-inch TFT color display with 1280 x 800 resolution provides excellent visibility and precise touch control for complex industrial applications.
Industrial Protection
IP66 front protection and NEMA Type 4X/12 ratings ensure reliable operation in harsh industrial environments with dust, moisture, and temperature variations.
Versatile Connectivity
Multiple communication ports including Ethernet, RS-422/485, RS-232C, and USB connections enable seamless integration with various industrial systems.
Powerful Performance
Embedded Linux OS with 2GB LPDDR4 memory and 8GB eMMC storage delivers fast processing and reliable operation for demanding HMI applications.
Precise Touch Control
5-wire resistive touch panel with ±2% accuracy provides reliable tactile feedback and precise control even when wearing industrial gloves.
Easy Integration
Compact design with standard panel cut dimensions and comprehensive software support simplifies installation and configuration in existing automation systems.
Frequently Asked Questions
What connectivity options are available on this HMI panel?

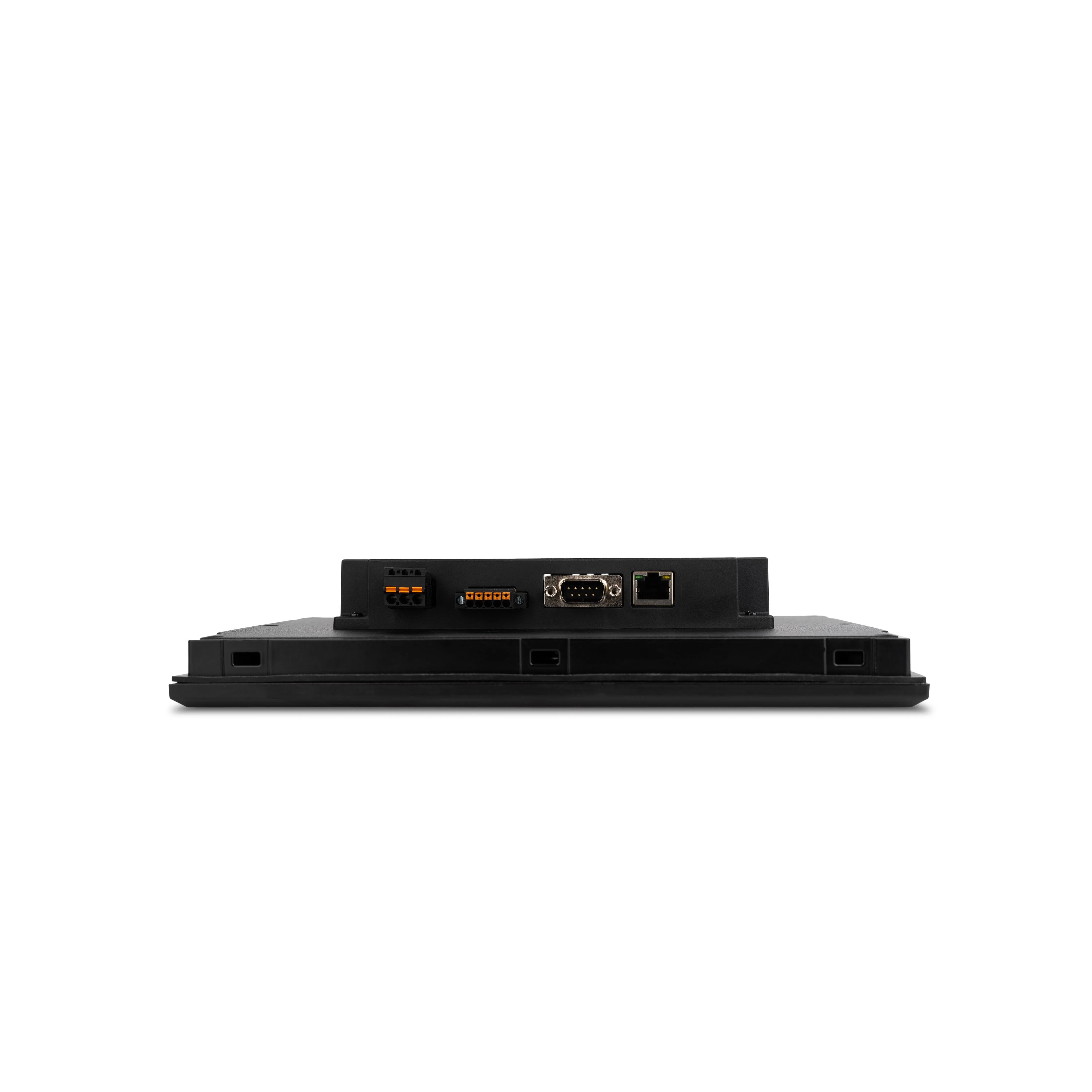

The unit includes 1x Ethernet (10/100/1000), 2x Serial ports (RS-422/485 and RS-232C), 1x USB Type A host port, and 1x USB-C tool port, providing comprehensive connectivity for industrial automation systems.
What is the protection rating and environmental specifications?
The HMI has IP66 front protection (NEMA Type 4X, 12), operates from 0-65°C, storage temperature range of -25 to +75°C, and humidity tolerance of 10-90% RH, making it suitable for harsh industrial environments.
What are the memory and processing specifications?
The HMI is equipped with 2 GB LPDDR4 RAM, 8 GB eMMC storage, embedded Linux operating system, 250 MB project memory, 4 GB user memory, and built-in realtime clock with 10-year backup.
What certifications and safety standards does this HMI meet?
The unit complies with UL61010-1/UL61010-2-201, CE Electromagnetic Compatibility Directive 2014/30/EU (EMC), FCC 47 CFR Part 2/15/18, KC Registration standards, and holds IP66 protection and NEMA Type 4X/12 ratings.
