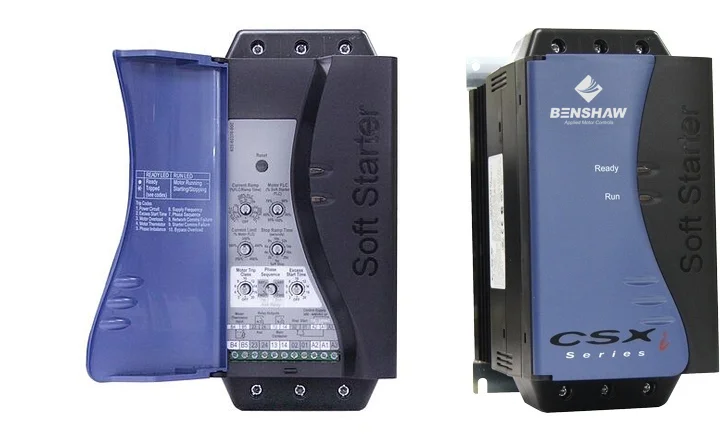

CSXi Series Compact Low Voltage Soft Starters

Compact 6.5" deep design
99.5% efficiency during run
Built-in motor protection
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Rapid delivery available
Protected chassis units
Benshaw quality standard

Technical Specifications Overview

Comprehensive specifications for the CSXi Series Compact Low Voltage Soft Starters including dimensional, electrical and performance parameters.

PARAMETER
SPECIFICATION
Depth
6.5 inches (165mm)
Motor Current Range
up to 60A for DIN-rail mounting
Control Voltage
380/440 VAC
Efficiency During Run
99.5%
Thermal Protection
trips at 105% of user set motor trip class
Mounting Options
DIN-rail, horizontal mounting
Protection Features
Built-in motor overload protection
Start Technology
Constant current start with TVR soft stop
Bypass Function
Integral bypass contactor included
Country of Origin
🇺🇸 United States

Engineered for Superior Performance

Discover the key advantages of CSXi Series soft starters that deliver reliable motor control with exceptional efficiency and compact design.

Compact Design

Only 6.5 inches deep for easy mounting in shallow enclosures and non-vented spaces, maximizing installation flexibility.

Energy Efficient

Achieves 99.5% efficiency during run with internal bypass function, reducing energy costs and heat generation significantly.

Built-in Protection

Eliminates need for external motor overload devices with integrated protection features and thermal overload capabilities.

Easy Setup

Simplified configuration via potentiometer settings with LED status indicators for quick commissioning and troubleshooting.

Flexible Mounting

DIN-rail mounting option for motors up to 60A with horizontal mounting capability to optimize space utilization.

Communication Ready

Easy-to-install communication interfaces supporting multiple protocols for seamless integration into control systems.

Frequently Asked Questions

What makes CSXi Series soft starters ideal for shallow enclosures?
The CSXi Series is designed with a compact profile of only 6.5 inches (165mm) deep, making it perfect for installation in shallow enclosures and MCC applications where space is limited. The integral bypass contactor allows mounting in non-vented enclosures.
How does the built-in motor protection work?
The CSXi Series features integrated motor protection that eliminates the need for external motor overload devices. It includes thermal overload protection that trips at 105% of the user-set motor trip class, providing comprehensive motor protection during operation.
What are the available mounting options for CSXi soft starters?
CSXi soft starters offer DIN-rail mounting for motors up to 60A and can be mounted horizontally to use less space. This flexibility allows for optimal installation in various panel configurations and tight spaces.
How energy efficient are CSXi Series soft starters?
CSXi soft starters achieve 99.5% efficiency during run operation through their internal bypass function. This energy-saving design reduces operating costs and produces no harmonics, making them ideal for sensitive electrical environments.
What communication protocols are supported by CSXi soft starters?
The CSXi Series features easy-to-install communication interfaces that support multiple protocols for seamless integration into existing control systems. Specific protocol support varies by model and communication module selection.

Versatile Applications Across Multiple Industries

CSXi Series soft starters provide reliable motor control solutions across diverse industrial applications with superior performance and efficiency.

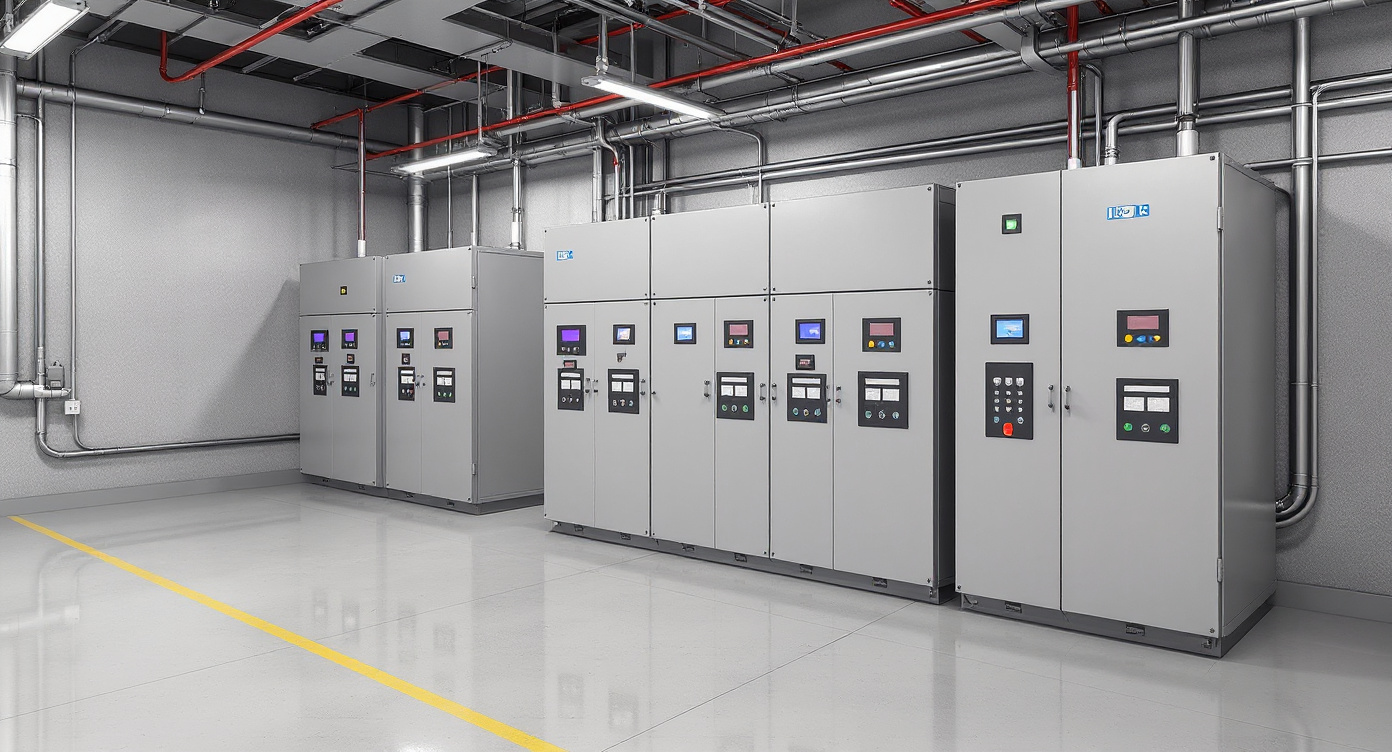

Motor control cabinets and electrical panels for three phase motor starting applications#16:9

Motor Starting Control

Three phase motor starting and stopping control applications with constant current start technology for smooth operation.

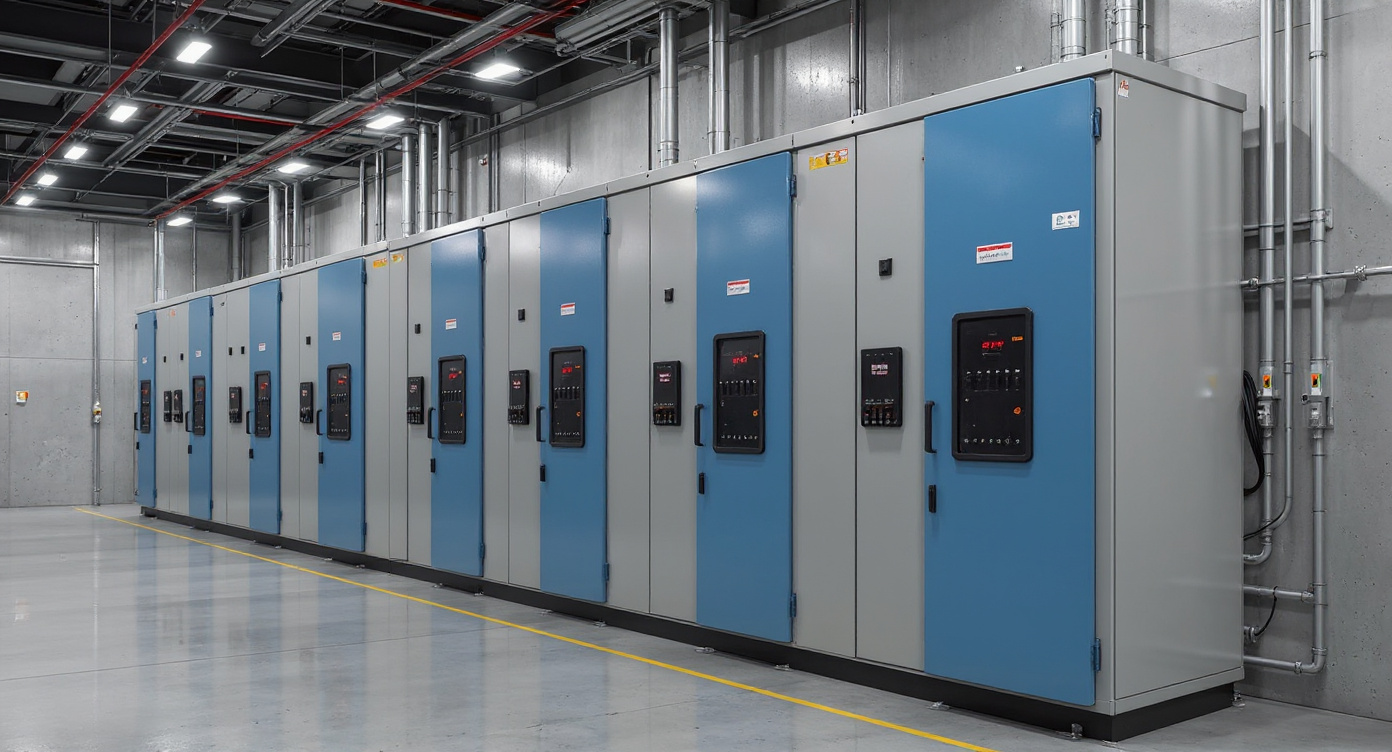

MCC panel installations and low profile electrical enclosures for industrial motor control#16:9

MCC Installations

MCC and low-profile enclosure installations with compact design fitting in shallow spaces for optimal panel utilization.

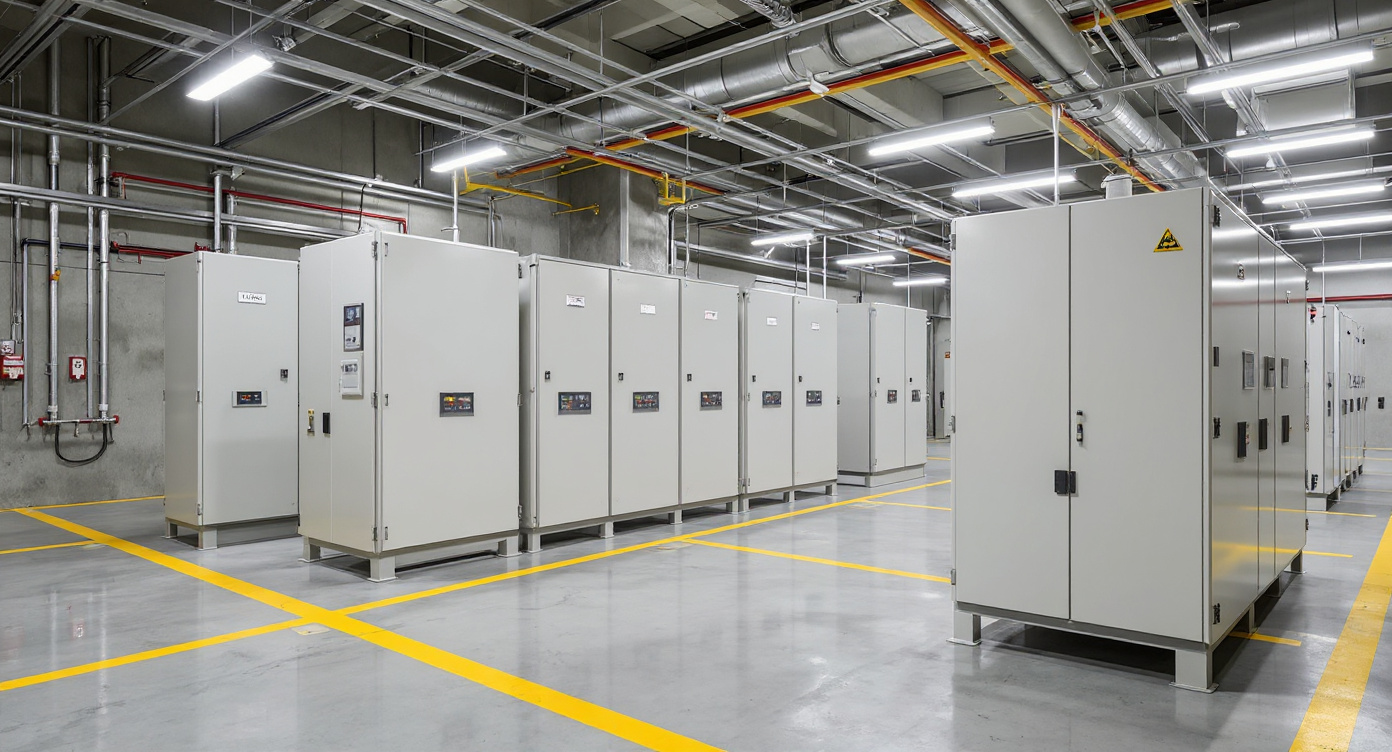

Power factor correction capacitor control systems for energy efficiency improvement#16:9

Power Factor Correction

Power factor correction capacitor control for improved energy efficiency and reduced electrical costs in industrial facilities.

What Our Industrial Partners Say

Discover how CSXi Series soft starters have improved motor control performance and reliability for manufacturing professionals across various industries.

Technical Excellence Delivered

ValuAdd's technical expertise saved us weeks of troubleshooting on our motor control issues. Their deep product knowledge and hands-on support made all the difference in our CSXi installation.

MJ

Michael Johnson

Maintenance Manager, ABC Manufacturing

Reliable Partnership

Their component selection support and reliability have made ValuAdd our go-to partner for all electrical panel design projects. Truly knowledgeable representatives who understand our CSXi requirements.

ST

Sarah Thompson

Design Engineer, TechSystems Inc

Exceptional Local Support

The local support and territory-based service from ValuAdd is exceptional. They understand our industry challenges and provide CSXi solutions that work perfectly for our applications.

RD

Robert Davis

Operations Director, Industrial Solutions LLC

Proven Reliability

The CSXi Series has delivered consistent performance in our demanding industrial environment. ValuAdd's support throughout the selection and installation process was outstanding.

JW

Jennifer Wilson

Plant Engineer, Midwest Food Processing

Technical Innovation

The compact design and advanced features of CSXi soft starters have allowed us to optimize our panel layouts significantly. ValuAdd's expertise made the transition seamless.

DM

David Martinez

Electrical Manager, Advanced Panel Solutions

Outstanding Service

From initial consultation to ongoing support, ValuAdd has exceeded our expectations. Their deep understanding of CSXi applications has been invaluable to our automation projects.

LL

Lisa Lee

Automation Specialist, AutoTech Manufacturing
