ANSI certified#1.0 ANSI C12.20
UL certified#1.0 UL 61010-1
CSA certified#1.0 CSA-C22.2

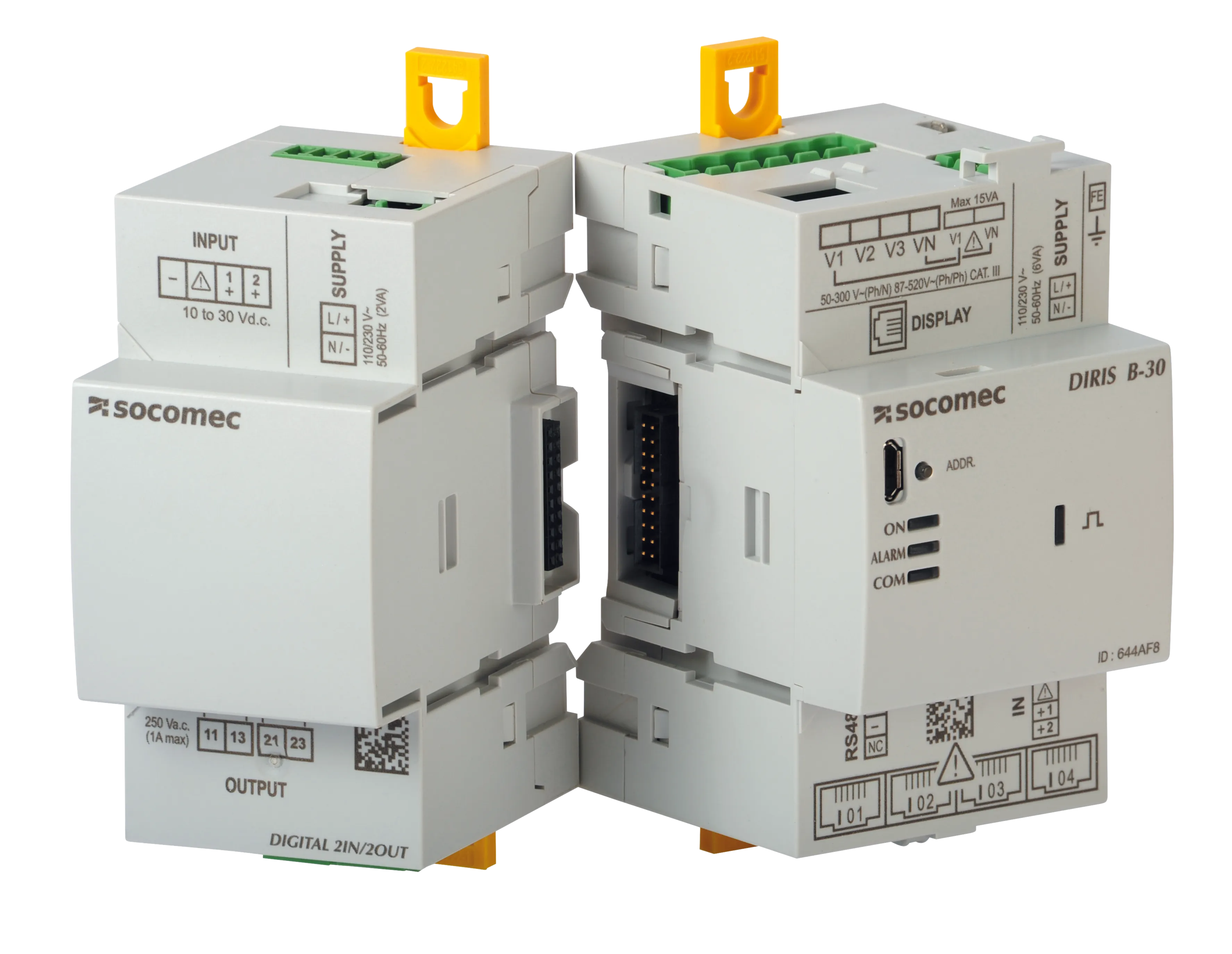

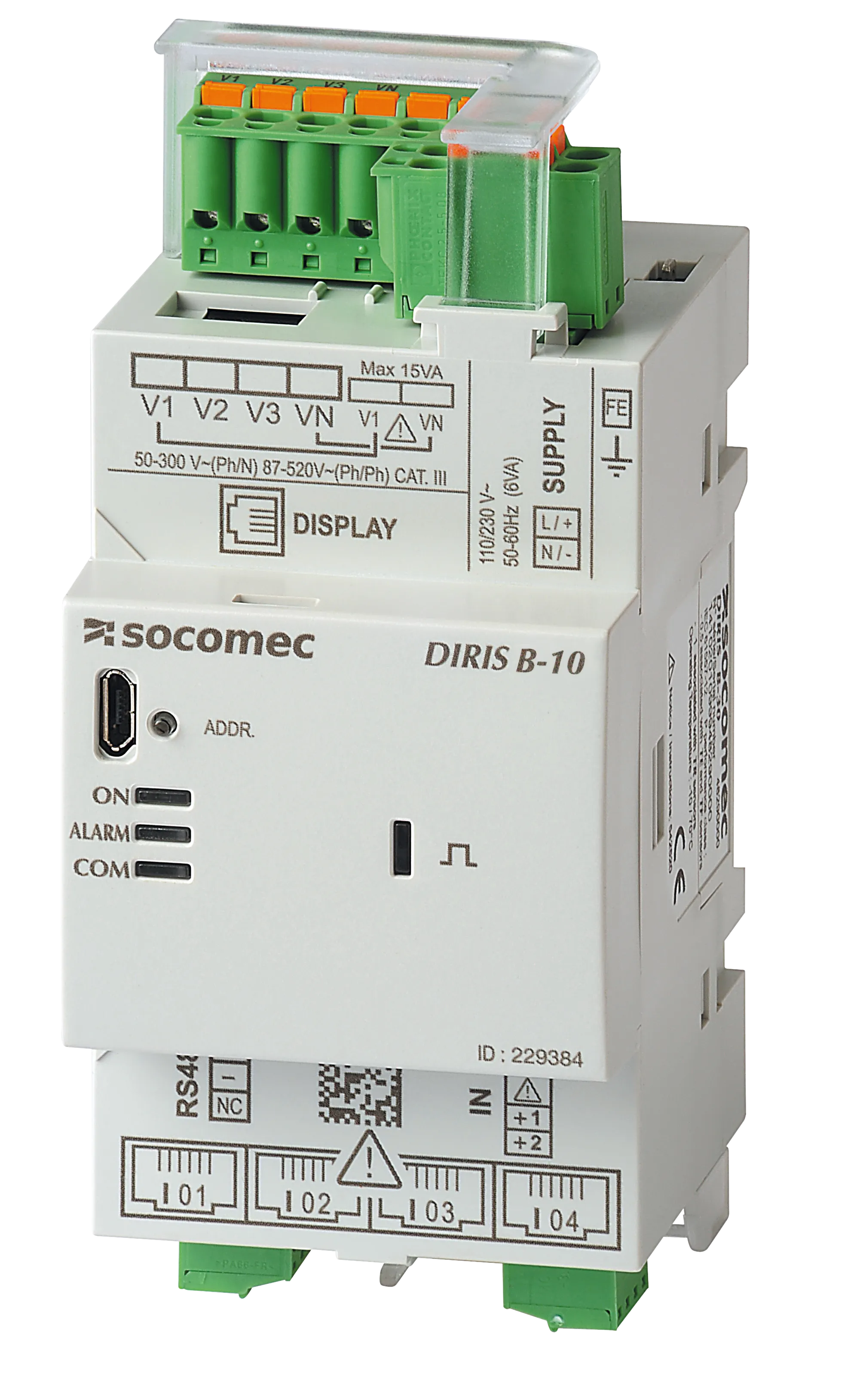

DIRIS B

DIN-rail Mounted Design
Class 0.2 Accuracy
Multi-Circuit Monitoring
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Factory Direct Support
Certifications: UL, CSA, ANSI

Technical Specifications at a Glance

Comprehensive technical specifications for the DIRIS B power monitoring device to ensure optimal performance in your industrial application.

Parameter
Specification
Accuracy Class
Class 0.2 (ANSI C12.20)
System Accuracy
Class 0.5 (with TE/iTR/TF sensors)
Communication
Modbus RTU via RS485
Current Inputs
4 independent RJ12 inputs
Digital Inputs
2 native digital inputs
Mounting Type
DIN-rail mounted
Current Sensor Range (TE)
5-2000A
Current Sensor Range (TR/iTR)
25-600A
Current Sensor Range (TF)
100-6000A
Country of Origin
🇫🇷 France

Engineered for Industrial Excellence

Discover the advanced features and benefits that make DIRIS B the preferred choice for industrial power monitoring applications.

High Accuracy Monitoring

Class 0.2 accuracy according to ANSI C12.20 standards ensures precise power measurements for critical industrial applications and billing-grade metering requirements.

Plug & Play Installation

Color-coded RJ12 cables and automatic sensor detection eliminate installation complexity, reducing setup time and minimizing potential wiring errors in your electrical panels.

Multi-Circuit Capability

Monitor up to 4 independent circuits simultaneously with flexible current sensor compatibility, perfect for comprehensive power analysis across multiple electrical feeds.

Advanced Communication

Modbus RTU communication enables seamless integration with building management systems and SCADA platforms for centralized monitoring and control capabilities.

Safe Operation

Low-voltage mV current sensors can be safely disconnected under load without shorting blocks, ensuring operator safety during maintenance and system modifications.

DIN-Rail Design

Compact DIN-rail mounting saves valuable panel space while providing secure installation in standard electrical enclosures for industrial and commercial applications.

Frequently Asked Questions

What current sensor types are compatible with DIRIS B?
DIRIS B is compatible with TE (5-2000A), TR/iTR (25-600A), and TF (100-6000A) smart current sensors. The device automatically detects the sensor type and rating for seamless integration.
How does the Modbus RTU communication work?
DIRIS B features built-in Modbus RTU communication via RS485, allowing integration with building management systems, SCADA platforms, and remote monitoring through DIRIS Digiware gateway systems.
Can I monitor single-phase and three-phase circuits?
Yes, DIRIS B supports both single-phase load monitoring (up to 4 circuits) and three-phase circuit monitoring with neutral measurement, making it versatile for various electrical configurations.
What accuracy class does DIRIS B provide?
DIRIS B provides Class 0.2 accuracy according to ANSI C12.20 standards for precise measurements, and Class 0.5 system accuracy when combined with compatible current sensors from 2% to 120% of rated current.
Is an optional display available for local monitoring?
Yes, an optional display can be plugged into DIRIS B for local visualization and monitoring. The device also supports versatile connectivity to remote DIRIS D-30 screen for enhanced monitoring capabilities.

Versatile Applications for Power Monitoring

DIRIS B delivers precise power monitoring across diverse industrial and commercial environments with unmatched reliability and accuracy.

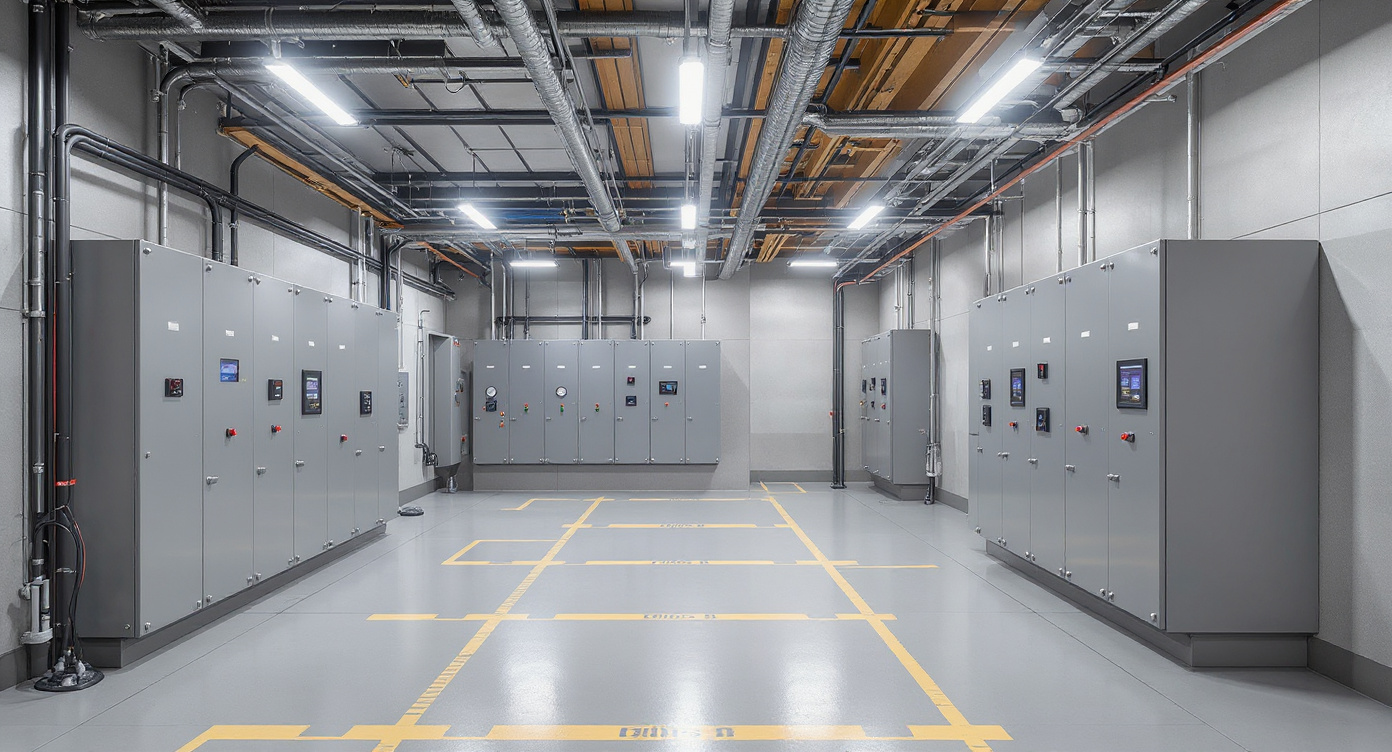

Manufacturing facility with power monitoring systems for electrical installations and energy management#1.9

Manufacturing Plants

Monitor multi-circuit power consumption and electrical loads in manufacturing environments for energy optimization and preventive maintenance.

Commercial building with building management system integration and power metering infrastructure#1.9

Building Management

Integrate with building management systems via Modbus RTU for centralized monitoring and control of electrical distribution systems.

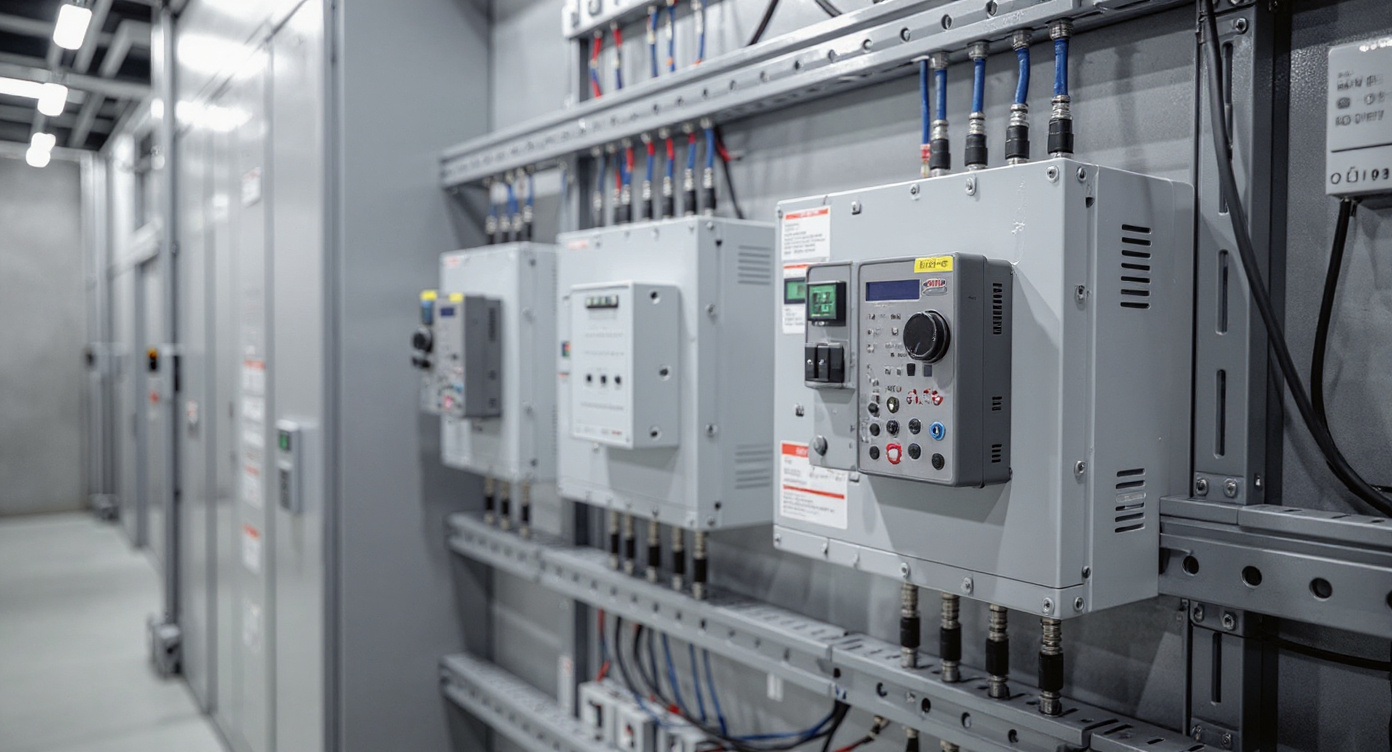

Industrial panel installation with DIN-rail mounted power monitoring devices for electrical analysis#1.9

Panel Integration

Perfect for local panel door display applications with DIN-rail mounting and plug-and-play installation in electrical enclosures.

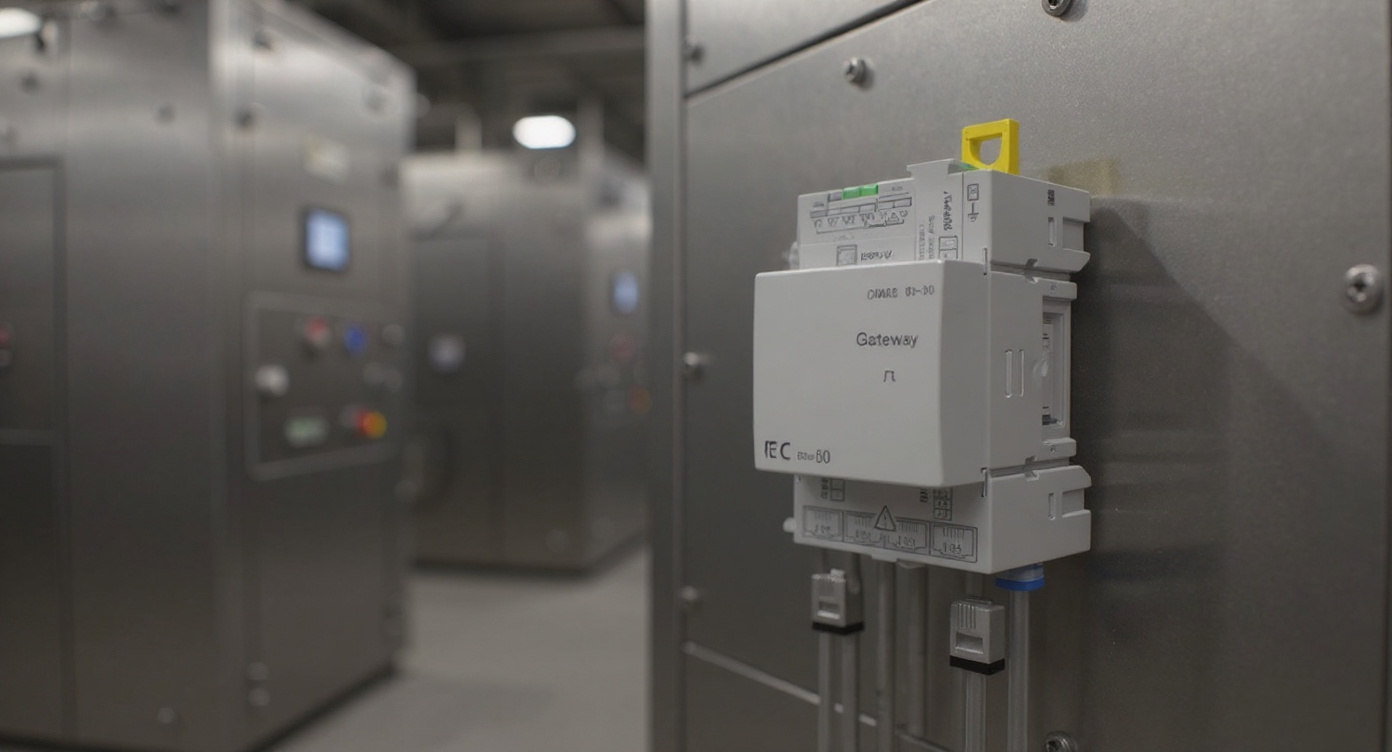

Remote monitoring system with gateway connections for industrial power analysis and data collection#1.9

Remote Monitoring

Enable remote monitoring through DIRIS Digiware gateway systems for comprehensive power analysis and data collection.

Three-phase electrical system with neutral measurement and circuit monitoring for industrial applications#1.9

Three-Phase Systems

Monitor three-phase circuit systems with neutral measurement capability for comprehensive electrical analysis in industrial settings.

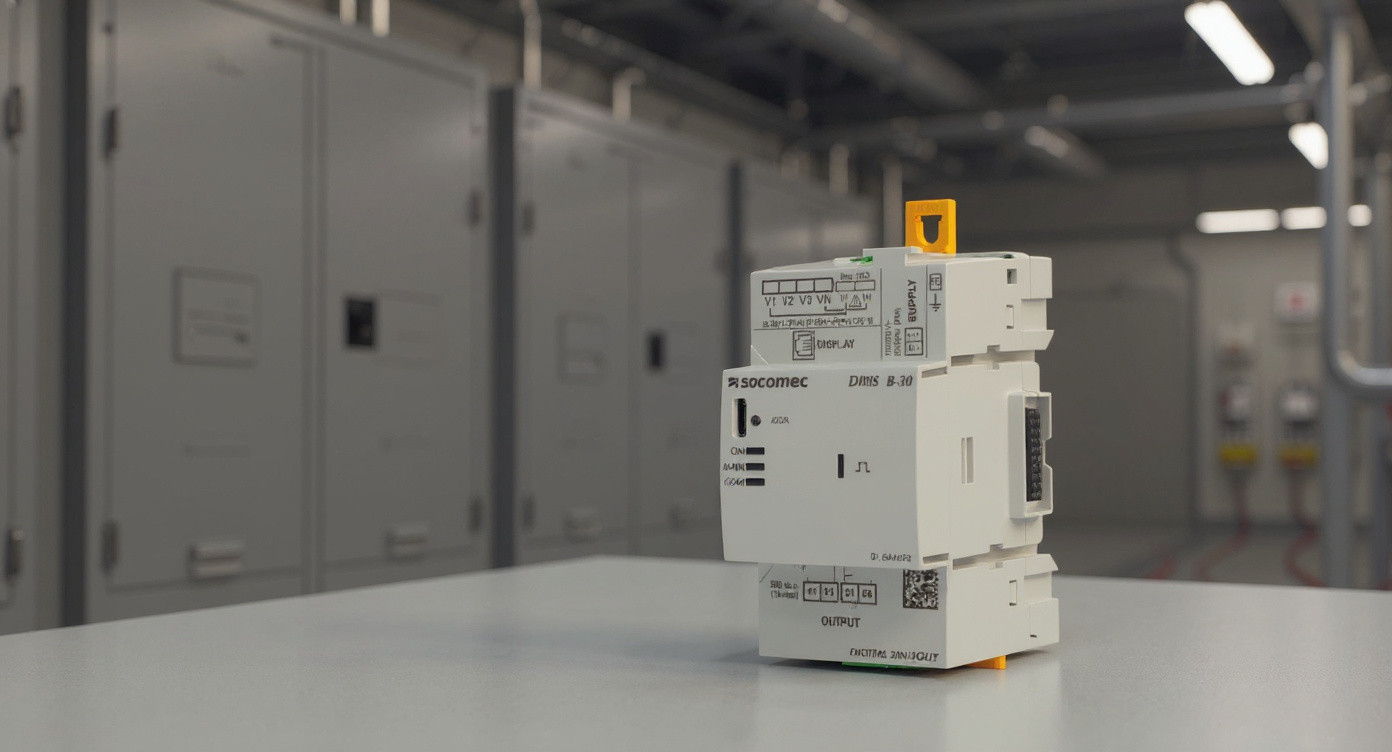

Single-phase load monitoring setup for commercial electrical installations and power metering#1.9

Single-Phase Monitoring

Support single-phase load monitoring up to 4 circuits for smaller commercial installations and distributed power systems.

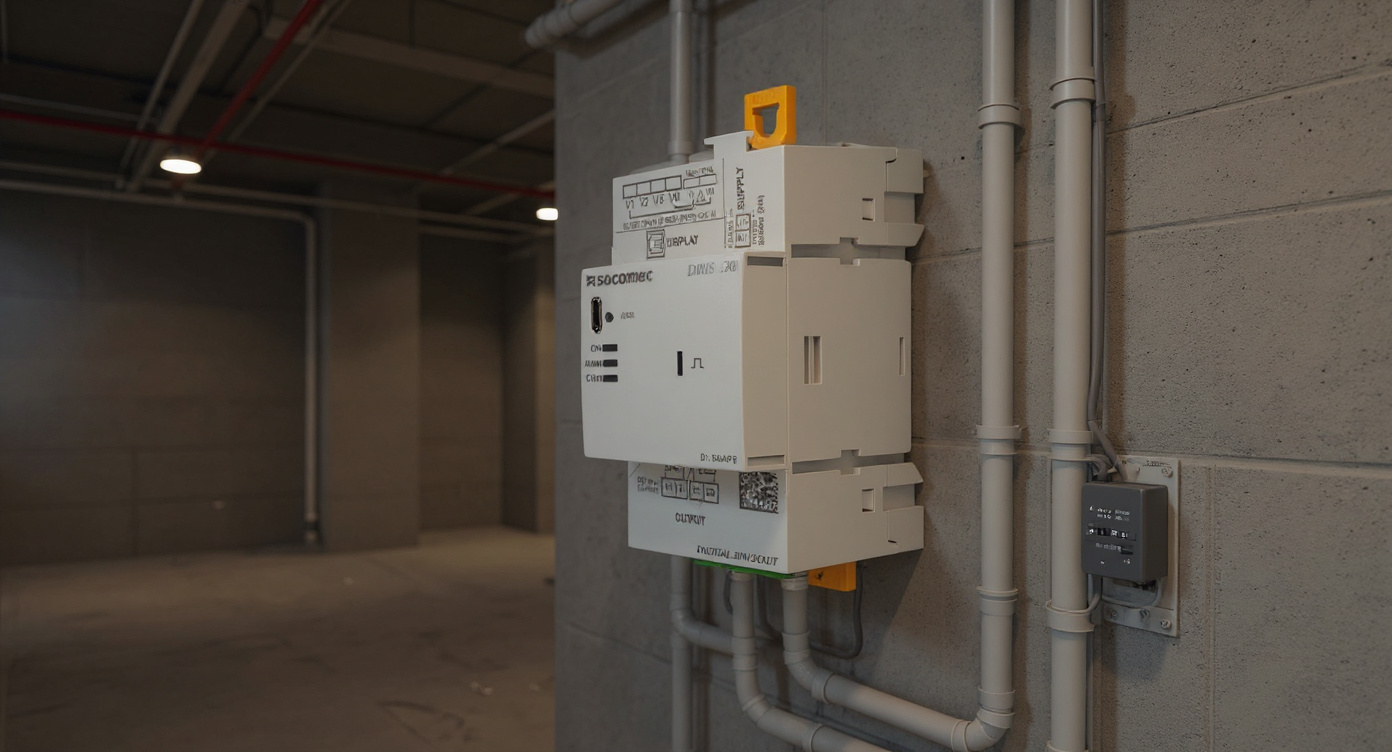

New electrical installation with power monitoring device integration for existing and new construction projects#1.9

New Installations

Ideal for power monitoring and metering in both new electrical installations and retrofit applications with existing systems.

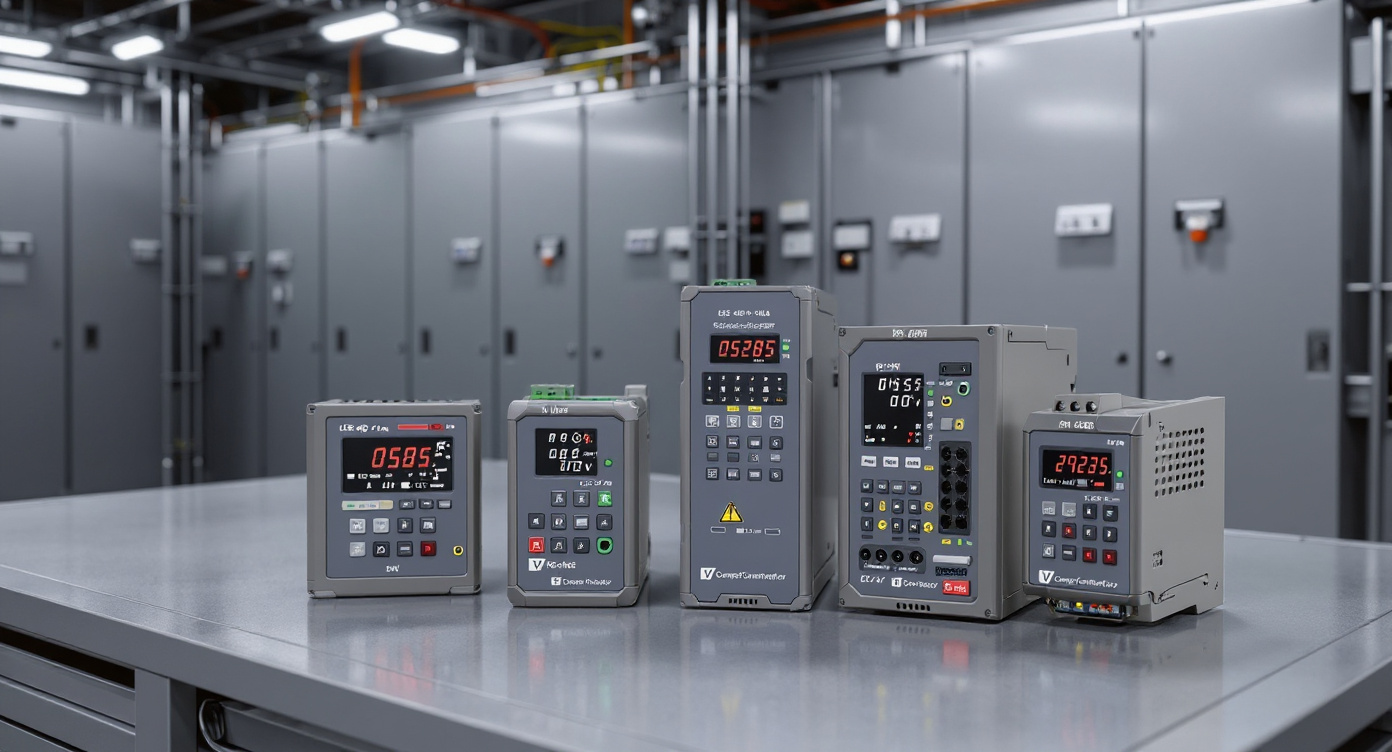

Commercial power analysis system with industrial metering capabilities for energy management#1.9

Commercial Analysis

Provide industrial and commercial power analysis with revenue-grade accuracy for energy billing and consumption tracking.

What Our Industry Partners Say

Discover how DIRIS B has transformed power monitoring capabilities for industrial and commercial facilities across diverse applications.

Exceptional Power Monitoring Accuracy

The DIRIS B has revolutionized our facility's power monitoring capabilities with its Class 0.2 accuracy. The plug-and-play installation saved us significant time during our electrical system upgrade.

MJ

Michael Johnson

Maintenance Manager, ABC Manufacturing

Perfect Building Management Integration

The Modbus RTU communication seamlessly integrated with our building management system. ValuAdd's technical expertise made the implementation smooth and efficient for our commercial facility.

ST

Sarah Thompson

Design Engineer, TechSystems Inc

Outstanding Multi-Circuit Monitoring

The multi-circuit capability and automatic sensor detection feature eliminated our installation complexity. The local support from ValuAdd's team was exceptional throughout the project.

RD

Robert Davis

Operations Director, Industrial Solutions LLC

Reliable Remote Monitoring Solution

The DIRIS Digiware gateway integration provides us with comprehensive remote monitoring capabilities. The revenue-grade accuracy ensures our energy billing is always precise and reliable.

JW

Jennifer Wilson

Facility Manager, Midwest Food Processing

Exceptional Panel Integration

The DIN-rail design and compact form factor made integration into our existing panels seamless. The safe disconnection feature of current sensors improved our maintenance safety protocols significantly.

DM

David Martinez

Electrical Engineer, Advanced Panel Solutions

Smart Automation Integration

The automatic sensor detection and color-coded cables streamlined our installation process. ValuAdd's technical knowledge and manufacturer relationships provided excellent project support throughout.

LB

Lisa Brown

Project Manager, AutoTech Manufacturing
