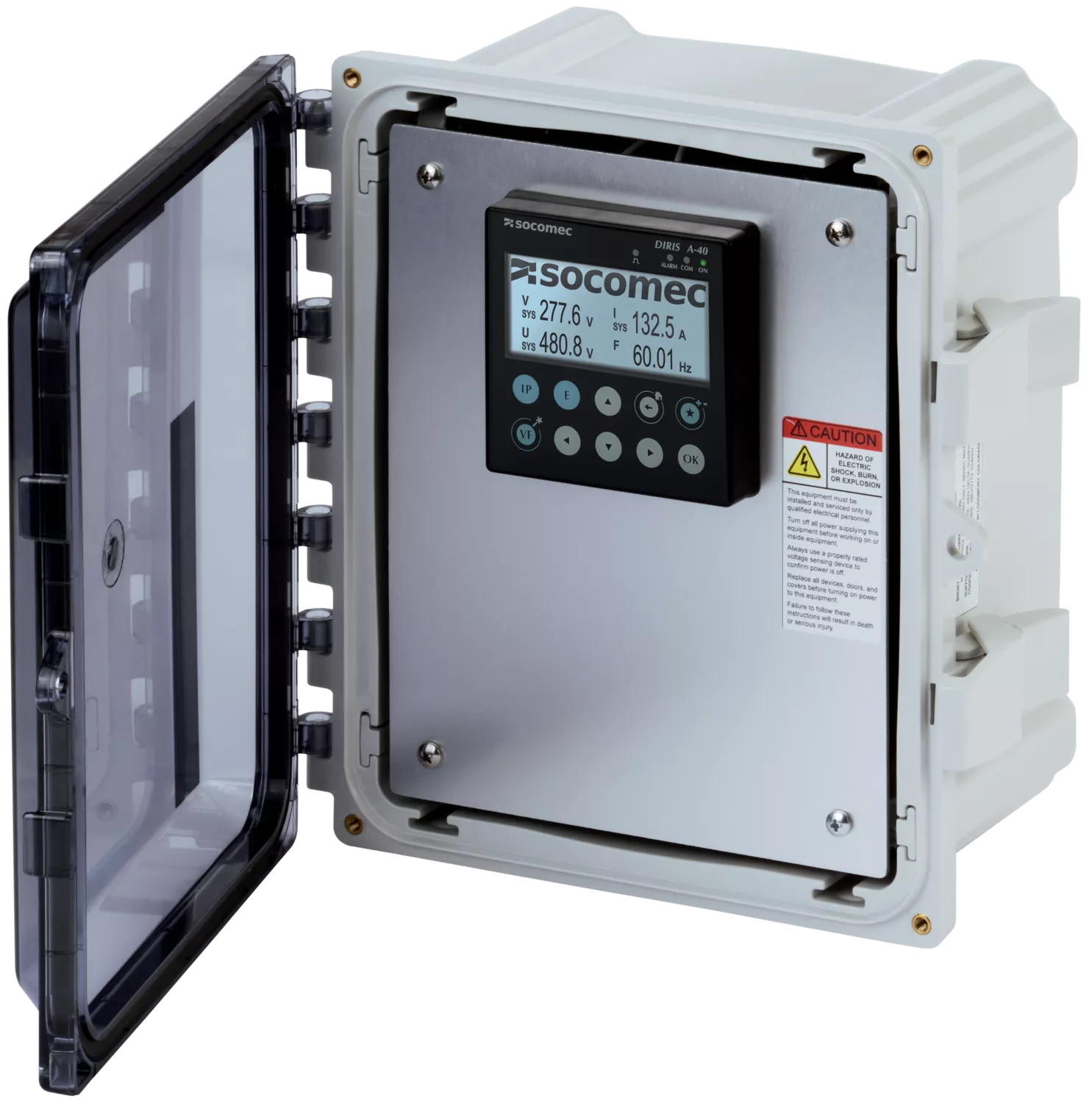

DIRIS DigiBOX A

Easy-to-install enclosed single-point submetering solution
Plug & Play design with color-coded RJ12 cables
NEMA 3R, 12, 4, 4X rated for indoor/outdoor use
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Contact for Shipping
Expert Technical Support
Certifications: cULus 508A, ANSI C12.20, IEC 61557-12

Technical Specifications at a Glance

Detailed technical specifications for the DIRIS DigiBOX A power monitoring solution

Parameter
Specification
Communication Protocols
Modbus RTU, Modbus TCP, BACnet IP, FTP(S)
Communication Ports
RS485, Ethernet
Available Versions
USDBPA40ET, USDBPA200RJ
System Accuracy
Class 0.5 (Meter + TE/iTR/TF current sensors)
Meter Accuracy
Class 0.2
Current Range
2% to 120% of rated current
Protection Rating
NEMA 3R, 12, 4, 4X
Installation Type
Indoor or outdoor installations
Current Sensor Technology
Low-voltage mV current sensors
Country of Origin
🇫🇷 France

Engineered to Perform

Experience the advantages of our complete submetering solution designed for reliability and ease of use

Plug & Play Installation

Simply select current sensors from our wide plug-and-play selection to complete your system. Color-coded RJ12 cables ensure easy phase identification during installation.

Universal Compatibility

Universal system voltage and power supply capabilities with automatic detection of current sensor type and rating for seamless integration across diverse applications.

Indoor/Outdoor Ready

NEMA 3R, 12, 4, 4X rated enclosures ensure reliable performance in both indoor and outdoor environments with cULus listed components for safety assurance.

Advanced Monitoring

Powered by DIRIS A-40 and DIRIS A-200 power monitoring devices with flexible I/Os and multiple communication protocols including Modbus and BACnet.

Safety Features

Low-voltage mV current sensors eliminate the need for shorting blocks and can be safely disconnected under load. Fused voltage connections provide additional protection.

Complete Solution

Two part numbers address a wide range of metering applications with detailed installation and commissioning instruction guides for professional deployment.

Frequently Asked Questions

What applications is the DIRIS DigiBOX A suitable for?
The DIRIS DigiBOX A is designed for a wide range of metering applications for complete submeter installation, suitable for both indoor and outdoor environments with NEMA 3R, 12, 4, 4X protection ratings.
How does the plug-and-play installation work?
Simply select current sensors from our wide selection and use the color-coded RJ12 cables for easy phase identification. The system automatically detects current sensor type and rating for seamless setup.
What communication protocols are supported?
The DIRIS DigiBOX A supports Modbus RTU, Modbus TCP, BACnet IP, and FTP(S) communication protocols through RS485 and Ethernet ports for flexible system integration.
What certifications does the DIRIS DigiBOX A have?
The device is certified to cULus 508A, ANSI C12.20, IEC 61557-12, and UL 61010-1 CSA-C22.2 No. 61010-1 Guide PICQ standards ensuring compliance and safety for North American installations.
Is it safe to disconnect current sensors under load?
Yes, the DIRIS DigiBOX A uses low-voltage mV current sensors that eliminate the need for shorting blocks and can be safely disconnected under load for maintenance and installation convenience.

Versatile Applications Across Multiple Industries

From manufacturing plants to commercial buildings, our submetering solutions provide accurate power monitoring for diverse applications

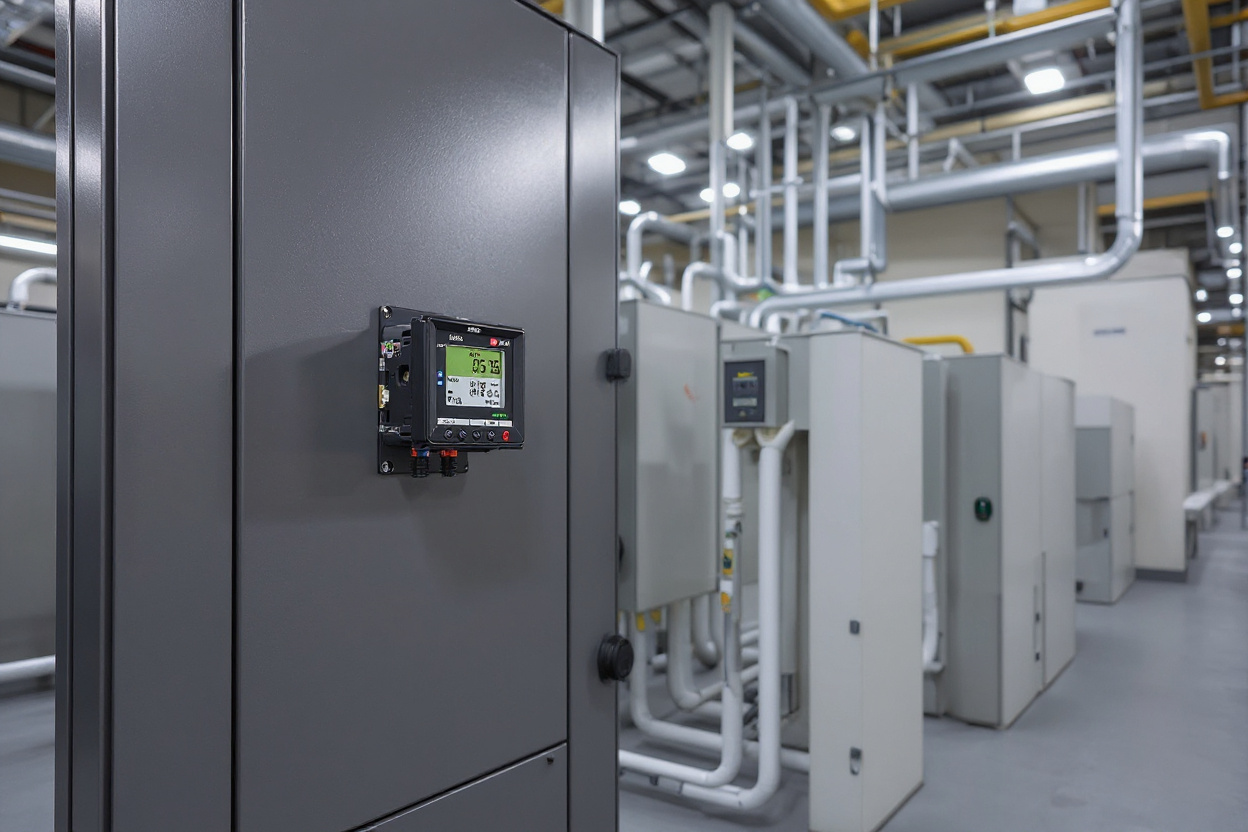

Metering applications for complete submeter installation in manufacturing facilities#1.5

Submeter Installation

Complete submetering solutions for manufacturing facilities requiring precise energy monitoring and billing allocation across multiple departments and production lines

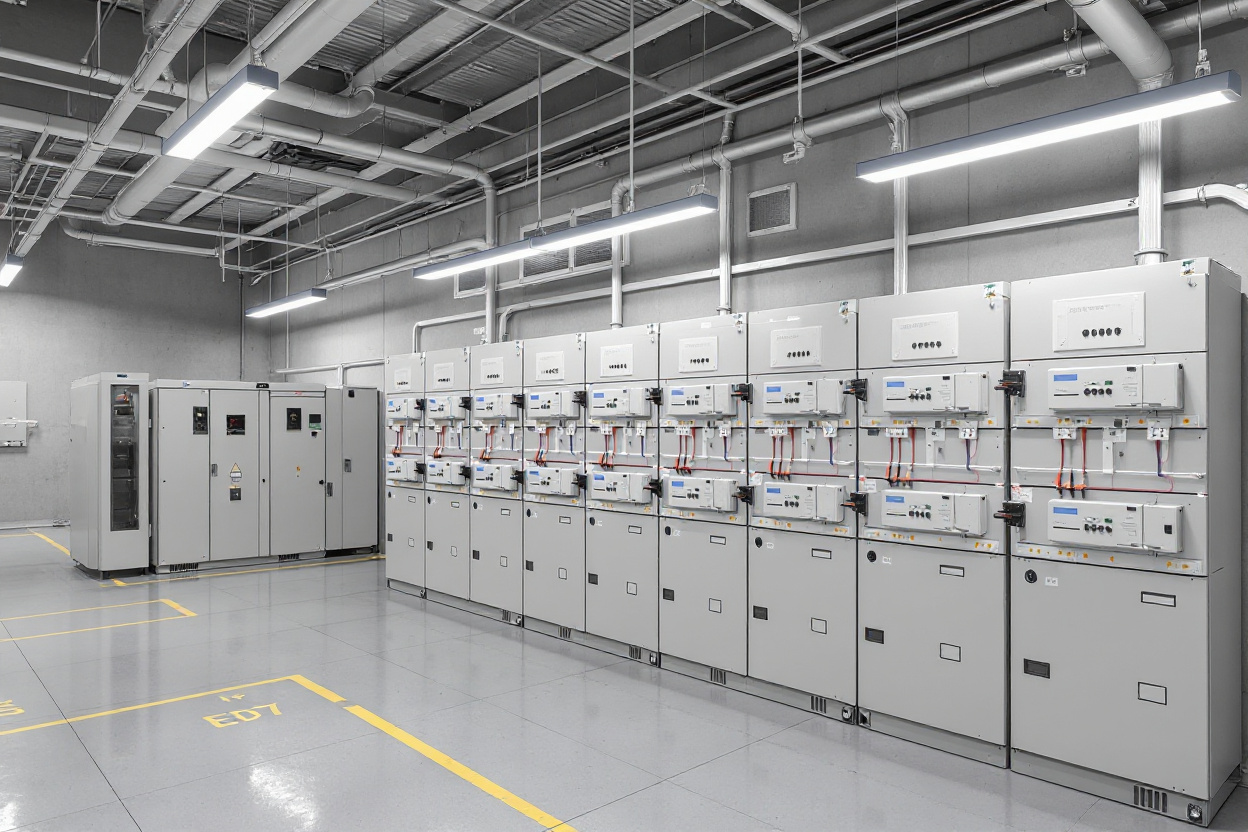

Indoor outdoor NEMA rated power monitoring installations in commercial buildings#1.5
