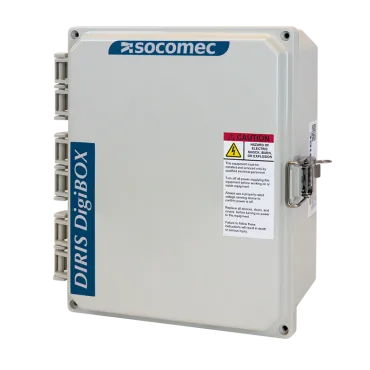

DIRIS DigiBOX B

Plug & Play Design
Auto CT Detection
Modbus RTU Communication
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Available on Request
Expert Technical Support
Territory-Based Service
Certifications: cULus 508A, ANSI C12.20, IEC 61557-12

Technical Specifications at a Glance

Comprehensive technical details for the DIRIS DigiBOX B power monitoring solution.

Parameter
Specification
Communication Protocol
Modbus RTU
Communication Port
RS485
System Accuracy
Class 0.5 (2% to 120% rated current)
Meter Accuracy
Class 0.2
Part Numbers
USDBBB30ND0, USDBPB30ND0
Current Range
2% to 120% of rated current
Compliance Standards
ANSI C12.20, IEC 61557-12
Safety Certifications
cULus 508A, UL 61010-1
Country of Origin
🇺🇸 United States

Engineered for Reliability

Experience the advantages of advanced power monitoring technology designed for industrial applications.

Plug & Play Installation

Easy installation with color-coded RJ12 cables for quick phase identification and reduced wiring errors. Complete system setup in minutes.

Automatic CT Detection

Intelligent sensor recognition automatically detects current transformer type and rating, eliminating manual configuration and reducing setup time.

Safe Disconnection

Low-voltage mV current sensors eliminate the need for shorting blocks, allowing safe disconnection under load without safety hazards.

Modbus RTU Communication

Industry-standard communication protocol enables seamless integration with existing building management and industrial automation systems.

Certified Quality

Meets stringent safety and accuracy standards including cULus 508A, ANSI C12.20, and IEC 61557-12 for reliable performance.

Wide Application Range

Versatile solution addresses multiple metering applications with just two part numbers, simplifying specification and inventory management.

Frequently Asked Questions

What makes DIRIS DigiBOX B different from other submetering solutions?
DIRIS DigiBOX B offers a unique plug & play design with automatic CT detection, color-coded cables, and safe low-voltage operation. This eliminates traditional wiring complexity and safety concerns while maintaining industry-leading accuracy.
Can the system be integrated with existing building management systems?
Yes, DIRIS DigiBOX B communicates via standard Modbus RTU protocol over RS485, making it compatible with most building management systems and industrial automation platforms.
What current sensors are compatible with this system?
The system features automatic detection of current sensor type and rating from a wide selection of plug-and-play CTs. This flexibility allows you to select the optimal sensors for your specific application requirements.
What accuracy can I expect from the DIRIS DigiBOX B?
The system delivers Class 0.5 system accuracy from 2% to 120% of rated current, with the DigiBOX B meter itself offering Class 0.2 accuracy, meeting ANSI C12.20 and IEC 61557-12 standards.
Is installation support available from ValuAdd?
Yes, ValuAdd provides comprehensive technical support including installation guidance, system configuration assistance, and ongoing technical consultation through our territory-based experts.

Versatile Applications for Complete Submetering

DIRIS DigiBOX B adapts to diverse electrical monitoring requirements across multiple industries and applications.

Comprehensive submetering solutions for diverse electrical monitoring applications in industrial and commercial settings#1.6

Wide Range Metering

Complete submeter installation for diverse electrical monitoring and measurement applications across various facility types.

Single-point submetering solution for electrical monitoring systems in manufacturing and industrial facilities#1.6

Single-Point Submetering

Ideal single-point submetering solution for comprehensive electrical monitoring and measurement in various industrial applications.

What Our Clients Say About ValuAdd

Discover why industrial professionals trust ValuAdd for their electrical monitoring and power management needs.

Technical expertise saved us weeks

ValuAdd's technical expertise saved us weeks of troubleshooting on our motor control issues. Their deep product knowledge and hands-on support made all the difference.

MJ

Michael Johnson

Maintenance Manager, ABC Manufacturing

Go-to partner for electrical panels

Their component selection support and reliability have made ValuAdd our go-to partner for all electrical panel design projects. Truly knowledgeable representatives.

ST

Sarah Thompson

Design Engineer, TechSystems Inc

Exceptional local support and service

The local support and territory-based service from ValuAdd is exceptional. They understand our industry challenges and provide solutions that work.

RD

Robert Davis

Operations Director, Industrial Solutions LLC

Technical expertise saved us weeks

ValuAdd's technical expertise saved us weeks of troubleshooting on our motor control issues. Their deep product knowledge and hands-on support made all the difference.

MJ

Michael Johnson

Maintenance Manager, ABC Manufacturing

Go-to partner for electrical panels

Their component selection support and reliability have made ValuAdd our go-to partner for all electrical panel design projects. Truly knowledgeable representatives.

ST

Sarah Thompson

Design Engineer, TechSystems Inc

Exceptional local support and service

The local support and territory-based service from ValuAdd is exceptional. They understand our industry challenges and provide solutions that work.

RD

Robert Davis

Operations Director, Industrial Solutions LLC

Explore Our Complete DIRIS System

Discover complementary products that work seamlessly with DIRIS DigiBOX B for comprehensive power monitoring solutions.

DIRIS Digiware C-31

Compact RS485 system interface that centralizes system data with single auxiliary 24 VDC power supply feeding entire system through Digiware bus.

ignoreGeneration#DIRIS Digiware C-31 Learn More

DIRIS Digiware RJ45 bus termination

Essential RJ45 terminating resistor for Digiware bus that must be placed on the last module of the Digiware bus for proper system operation.

ignoreGeneration#DIRIS Digiware RJ45 bus termination Learn More

DC sensor Molex RJ12 cables

Plug & Play cables with pre-crimped RJ12 and MOLEX connectors, color-coded to avoid errors with safe low voltage output and multiple length options.

ignoreGeneration#DC sensor Molex RJ12 cables Learn More

Need a Custom Power Monitoring Solution?

Our technical experts can help design the optimal submetering system for your specific application requirements.

Technical Resources

Download comprehensive documentation and resources for DIRIS DigiBOX B implementation and support.

DIRIS DigiBOX Product Brochure
PDF
Power Monitoring Selection Guide
PDF
DIRIS DigiBOX Catalogue Pages
PDF

Let's Build Your Power Monitoring Solution

Ready to implement DIRIS DigiBOX B in your facility? Our technical experts are here to help you succeed.
