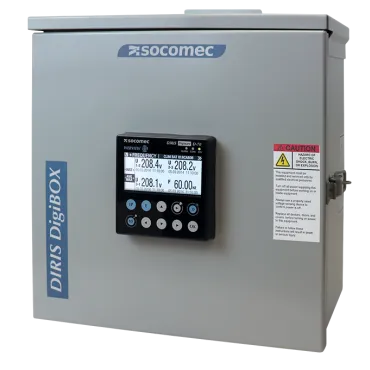

DIRIS DigiBOX M

Plug & Play Design
NEMA 12, 3R Enclosures
Multi-Circuit Monitoring
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Available on Request
Contact for Shipping
Technical Support Available
Certifications: cULus, ANSI, IEC

Technical Specifications at a Glance

Comprehensive technical specifications for the DIRIS DigiBOX M multi-circuit metering solution.

Parameter
Specification
Communication Protocols
Modbus RTU, Modbus TCP, BACnet IP, SNMP v1/v2/v3, FTP(S)
Communication Ports
RS485, Ethernet
Accuracy Standards
ANSI C12.20 and IEC 61557-12
System Accuracy
Class 0.5 (Meter + Current Sensors) from 2% to 120% rated current
DigiBOX Accuracy
Class 0.2
Enclosure Rating
NEMA 12, 3R
Available Versions
8 versions with different communication options
Design Type
Plug & Play with factory pre-wired technology
Listings
cULus listed enclosures and components
Country of Origin
🇫🇷 France

Engineered for Performance

Experience the advanced features and benefits of the DIRIS DigiBOX M multi-circuit metering solution.

Plug & Play Design

Factory pre-wired technology with color-coded RJ12 cables for easy phase identification and automatic detection of current sensor types and ratings.

Safe & Reliable

Durable NEMA 12, 3R enclosures with cULus listed components and fused voltage connections ensure maximum safety and reliability.

Low Voltage Sensors

Low-voltage mV current sensors require no shorting blocks and can be safely disconnected under load for enhanced operational safety.

Scalable Technology

Customizable Digiware technology provides flexibility and scalability for various multi-circuit metering requirements and retrofit applications.

Cost Effective

Provides considerable savings in installation costs and minimizes customer site downtime through efficient design and installation process.

Indoor & Outdoor Use

Complete modular multi-circuit metering solution designed for both indoor and outdoor installations with weather-resistant enclosures.

Frequently Asked Questions

What makes the DIRIS DigiBOX M different from other metering solutions?
The DIRIS DigiBOX M features Plug & Play design with factory pre-wired technology, color-coded cables for easy installation, and NEMA 12, 3R enclosures suitable for both indoor and outdoor use.
What communication protocols are supported by the DigiBOX M?
The DigiBOX M supports multiple communication protocols including Modbus RTU, Modbus TCP, BACnet IP, SNMP v1/v2/v3, and FTP(S) with RS485 and Ethernet ports.
Is the DigiBOX M suitable for retrofit applications?
Yes, the DIRIS DigiBOX M is specifically designed for retrofit applications and submetering installations requiring accurate power monitoring and measurement capabilities.
What accuracy standards does the DigiBOX M meet?
The DigiBOX M meets ANSI C12.20 and IEC 61557-12 standards with Class 0.5 system accuracy and Class 0.2 DigiBOX accuracy from 2% to 120% of rated current.
How many versions of the DigiBOX M are available?
There are 8 different versions of the DigiBOX M available, each offering different communication options to meet specific application requirements.

Versatile Applications Across Multiple Industries

The DIRIS DigiBOX M provides reliable multi-circuit metering solutions for diverse industrial applications.

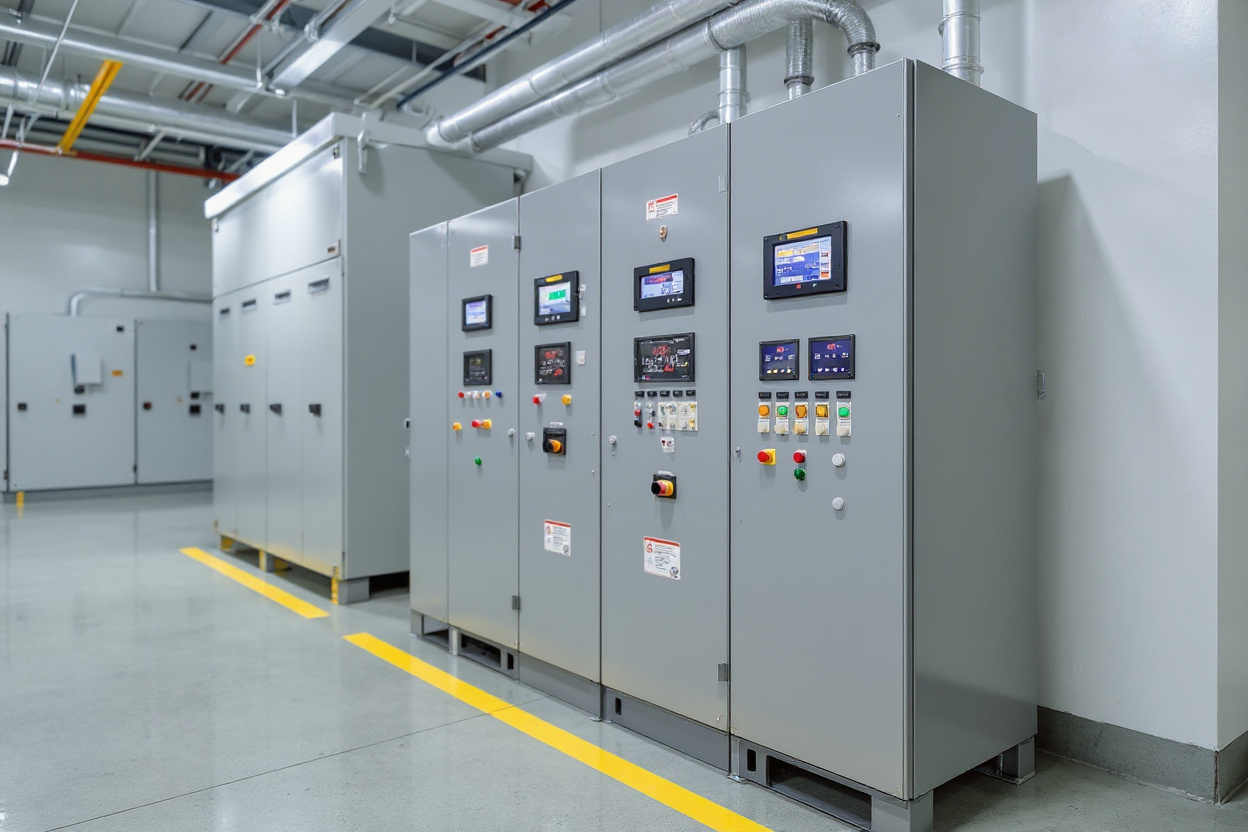

Multi-circuit metering solution for industrial electrical monitoring and measurement applications#1.5

Multi-Circuit Metering

Complete modular metering solutions for indoor and outdoor electrical monitoring applications

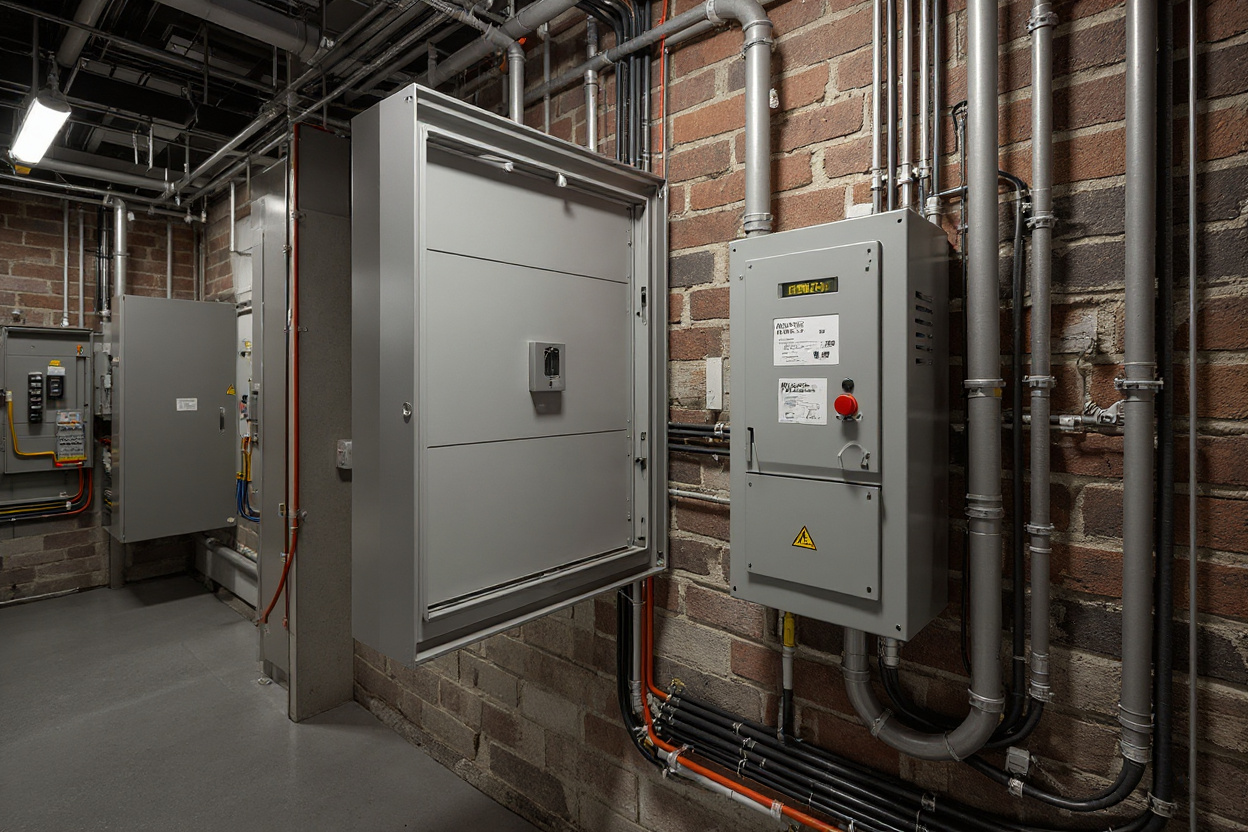

Retrofit electrical installations requiring accurate power monitoring in existing buildings#1.5

Retrofit Applications

Ideal for upgrading existing electrical systems with advanced power monitoring capabilities

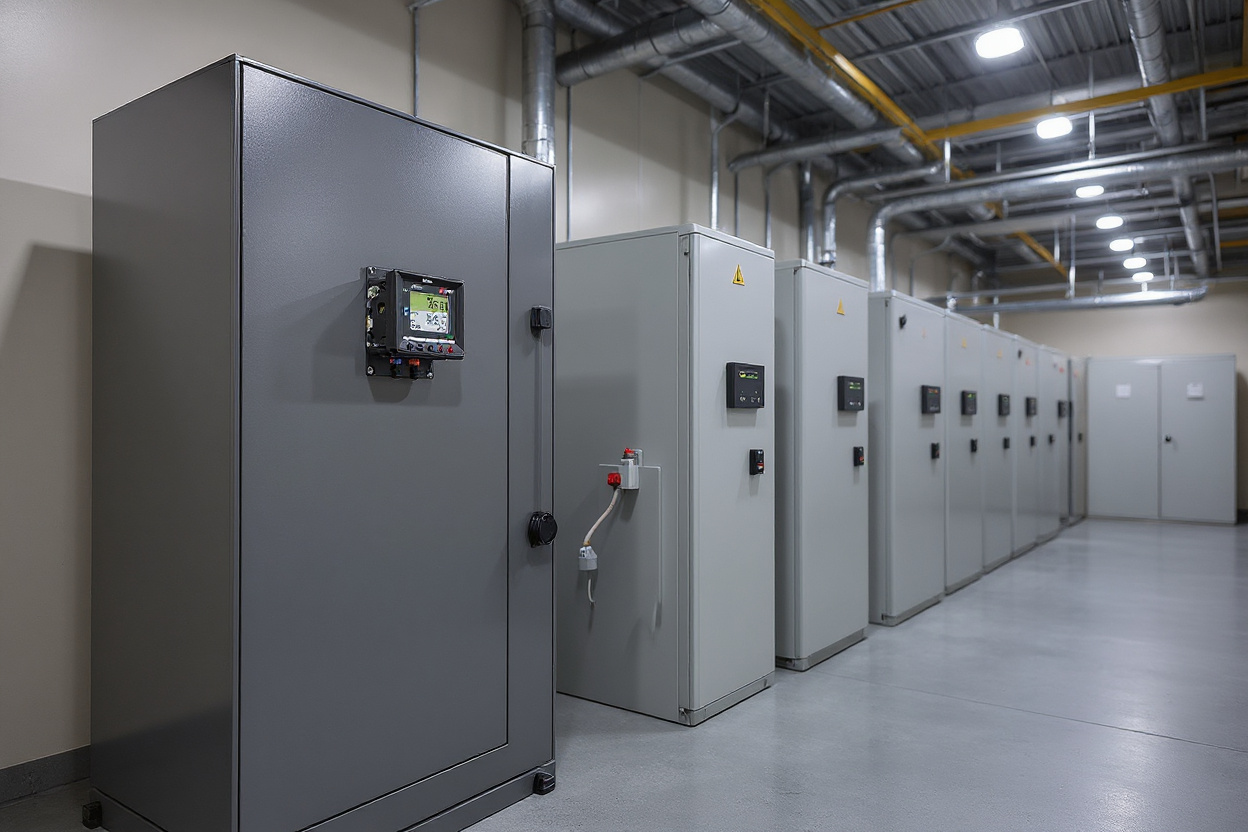

Submetering applications for accurate power measurement in commercial and industrial facilities#1.5

Submetering Solutions

Precise power measurement and monitoring for commercial and industrial submetering requirements
