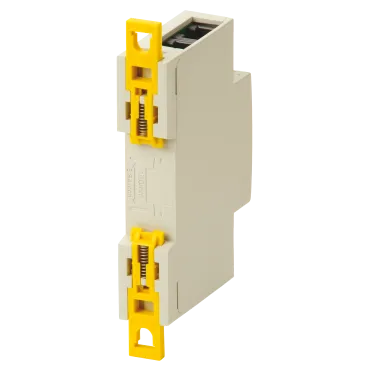

DIRIS Digiware C-32

24 VDC bus repeater with 20W power
Extends bus by 100 meters
Compact 18mm module design
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Fast Shipping Available
Expert Support Included
Certifications: IEC 61557-12, UL 61010, ANSI C12.20
View Specs

Technical Specifications at a Glance

Comprehensive technical details for the DIRIS Digiware C-32 bus repeater module specifications.

Parameter
Specification
Input Voltage
24 VDC
Additional Power Provided
20W
Bus Extension Distance
100 meters
Maximum Repeaters per System
2 per system
Total Bus Reach
up to 300 meters
Module Dimensions
1 Module size (18mm wide)
Safety Classification
24 VDC SELV (Safety Extra Low Voltage)
Installation Type
Plug & Play
Manufacturer
Socomec
Country of Origin
🇫🇷 France

Engineered for Reliable Performance

Advanced bus repeater technology delivering enhanced power monitoring capabilities for industrial applications.

Extended Power Reach

Provides additional 20W power supply while extending bus distance by 100 meters, ensuring reliable power distribution across extended monitoring systems.

Plug & Play Installation

Simple integration directly within the Digiware bus system without complex wiring or configuration, reducing installation time and potential errors.

Safe Operation

24 VDC Safety Extra Low Voltage (SELV) design eliminates dangerous voltages, ensuring safe installation and maintenance in industrial environments.

Compact Design

Ultra-compact one module wide (18mm) design optimizes panel space utilization while maintaining full functionality and performance.

Expandable System

Supports up to 2 repeaters per system, enabling total bus reach of up to 300 meters for large-scale monitoring applications.

Industry Certified

Complies with IEC 61557-12, UL 61010, and ANSI C12.20 standards, ensuring reliability and safety in critical industrial applications.

Frequently Asked Questions

What is the maximum bus extension distance with the C-32?
The DIRIS Digiware C-32 extends the bus by 100 meters per repeater, with a maximum of 2 repeaters per system, allowing total bus reach up to 300 meters for comprehensive power monitoring coverage.
How much additional power does the C-32 provide?
The C-32 bus repeater provides an additional 20W of power to support extended Digiware bus systems, ensuring reliable operation of connected monitoring devices across longer distances.
Is the C-32 safe for industrial installations?
Yes, the C-32 operates on 24 VDC Safety Extra Low Voltage (SELV), eliminating dangerous voltages and ensuring safe installation and maintenance in industrial environments.
What applications is the C-32 suitable for?
The C-32 is ideal for multi-point metering systems, power monitoring systems, electrical distribution monitoring, industrial power management, and Digiware bus extension applications.
How easy is it to install the C-32?
The C-32 features Plug & Play installation, allowing it to be directly added within the Digiware bus without complex wiring or configuration, making installation quick and error-free.

Versatile Applications Across Multiple Industries

The DIRIS Digiware C-32 serves diverse industrial power monitoring needs with reliable bus extension capabilities.

Packaging Materials

Multi-point Metering

Enables comprehensive energy monitoring across multiple measurement points in complex electrical distribution systems.

Fishnet Manufacturing

Power Monitoring Systems

Supports advanced power monitoring networks requiring extended bus reach for comprehensive electrical system oversight.

PPMF Tapes & Twines

Electrical Distribution Monitoring

Facilitates monitoring of electrical distribution panels and switchgear across large industrial facilities and buildings.

Knitting Machine Yarns

Industrial Power Management

Enables efficient power management in manufacturing plants and industrial facilities requiring extended monitoring coverage.

Packaging Materials

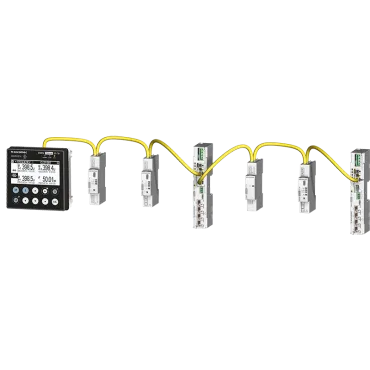

Digiware Bus Extension

Expands Digiware communication networks for larger installations requiring extended reach and additional power distribution.
