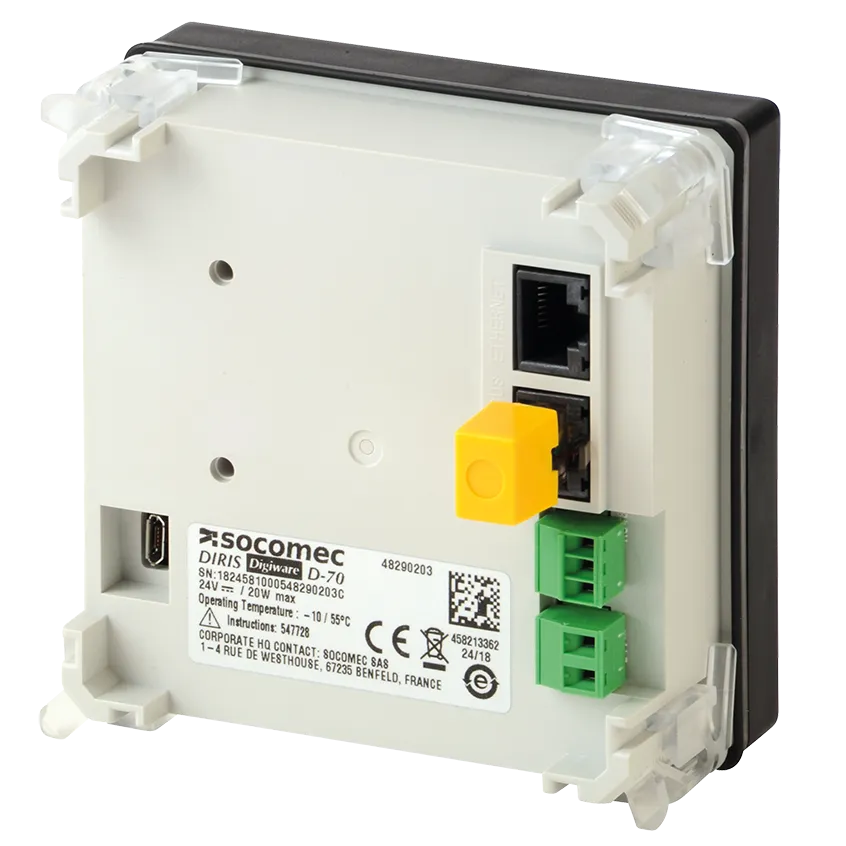

DIRIS Digiware D

Monitor up to 196 circuits
Centralized 24V DC power supply
Ethernet gateway with webserver
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Contact for Lead Time
Technical Support Available
Certifications: UL, IEC, RoHS, REACH
View Specs

Technical Specifications at a Glance

Complete technical details for the DIRIS Digiware D power monitoring system.

Parameter
Specification
Dimensions
96x96 mm
Power Supply
24 VDC Safety Extra-Low Voltage
Power Consumption
0.5 W per module
Communication Protocols
Modbus RTU/TCP, SNMP, BACnet IP, HTTP(S)
Communication Ports
RS485, Ethernet, Digiware, USB
Circuit Monitoring
Up to 196 circuits
Available Models
D-50 (Item 48290204), D-70 (Item 48290203)
Certifications
UL 61010, IEC 62443, REACH, RoHS
Special Features
Embedded webserver, Email notifications, Screen sleep mode
Country of Origin
🇫🇷 France
Request a Quote

Engineered for Superior Performance

Advanced power monitoring capabilities with centralized management and comprehensive connectivity solutions.

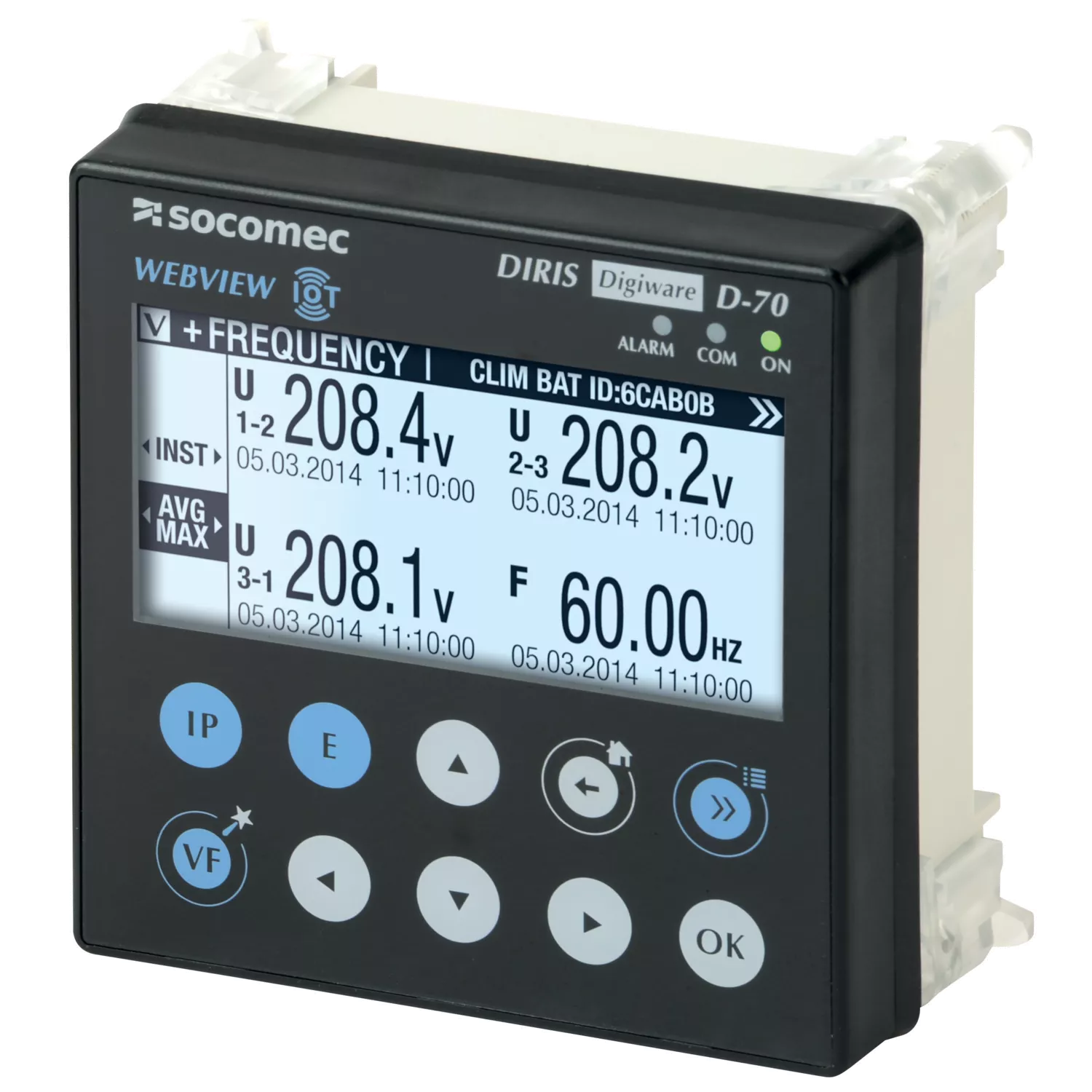

Local Visualization

Direct local visualization of measurements from all DIRIS Digiware modules with intuitive interface design for easy monitoring and control of your power systems.

Centralized Power Supply

Single 24 VDC power supply feeds the entire system through the Digiware bus, eliminating the need for multiple power sources and simplifying installation requirements.

Ethernet Gateway

Acts as a comprehensive Ethernet gateway with embedded webserver capabilities, enabling seamless integration with existing network infrastructure and remote monitoring systems.

Plug & Play Setup

Automatic detection and configuration capabilities ensure quick and easy installation with minimal setup time, reducing commissioning costs and complexity for system integrators.

Enhanced Security

IEC 62443 compliant cybersecurity features provide robust protection against cyber threats while maintaining reliable communication protocols for industrial environments.

Smart Notifications

Email notifications for alarm conditions with intelligent screen sleep mode functionality to optimize energy consumption while ensuring critical alerts are never missed.

Frequently Asked Questions

What is the maximum number of circuits the DIRIS Digiware D can monitor?
The DIRIS Digiware D system can monitor up to 196 circuits, providing comprehensive multi-circuit monitoring capabilities for large industrial installations and building management systems.
What communication protocols are supported by the DIRIS Digiware D?
The system supports multiple protocols including Modbus RTU, Modbus TCP, SNMP v1/v2/v3 with Traps, BACnet IP, HTTP(S), FTP(S), and SMTP(S) for comprehensive connectivity options.
What are the key differences between the D-50 and D-70 models?
The D-70 model includes an embedded webserver (WEBVIEW-M) for enhanced local visualization capabilities, while the D-50 provides basic monitoring functions. Both models offer the same communication protocols and circuit monitoring capacity.
Is the DIRIS Digiware D suitable for cybersecurity-sensitive applications?
Yes, the DIRIS Digiware D is compliant with IEC 62443 cybersecurity standards, making it suitable for industrial environments where data security and network protection are critical requirements.
What power supply requirements does the DIRIS Digiware D have?
The system operates on 24 VDC Safety Extra-Low Voltage with only 0.5W consumption per module, providing energy-efficient operation while centralizing power distribution through the Digiware bus.

Versatile Applications Across Multiple Industries

From manufacturing plants to smart buildings, the DIRIS Digiware D delivers comprehensive power monitoring solutions.

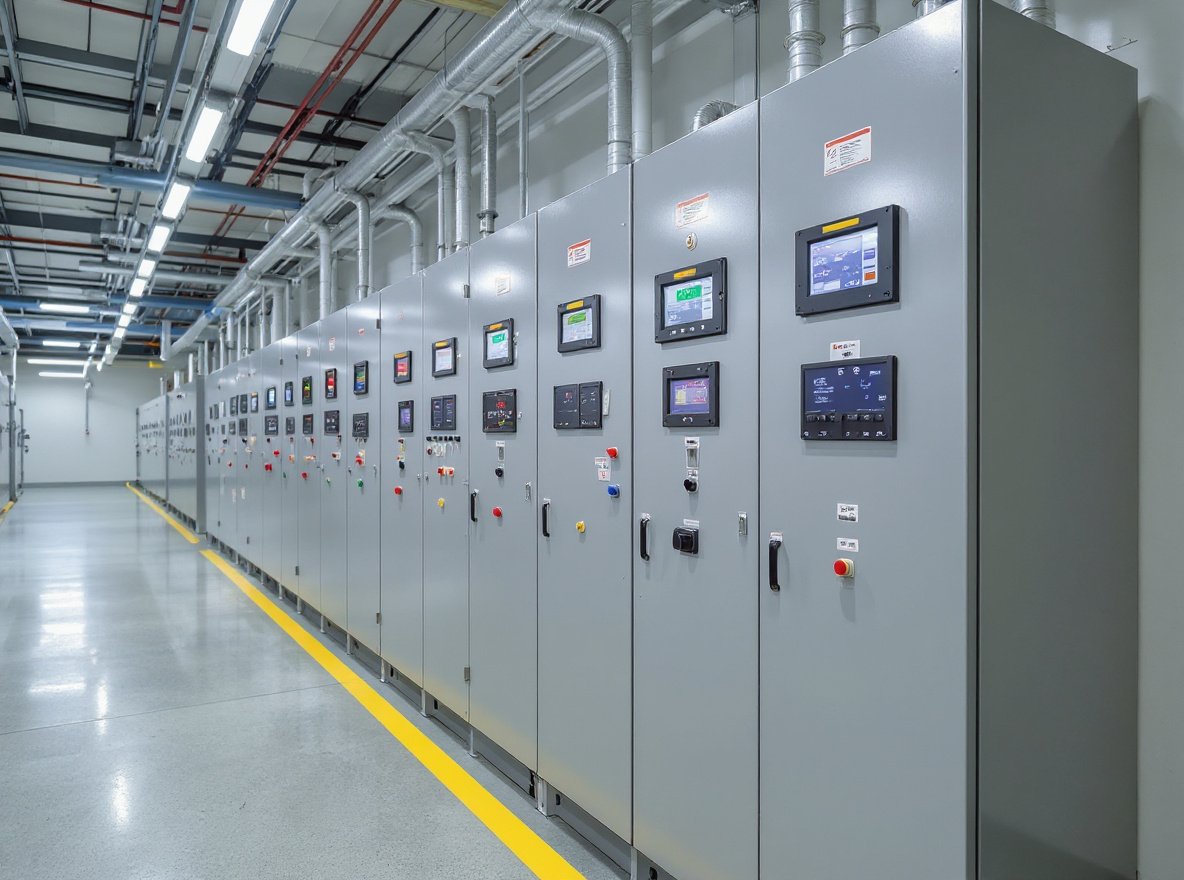

Industrial facility with power monitoring equipment for multi-circuit measurement systems#1.2

Multi-Circuit Power Metering

Comprehensive power monitoring systems for industrial facilities requiring precise measurement across multiple electrical circuits.

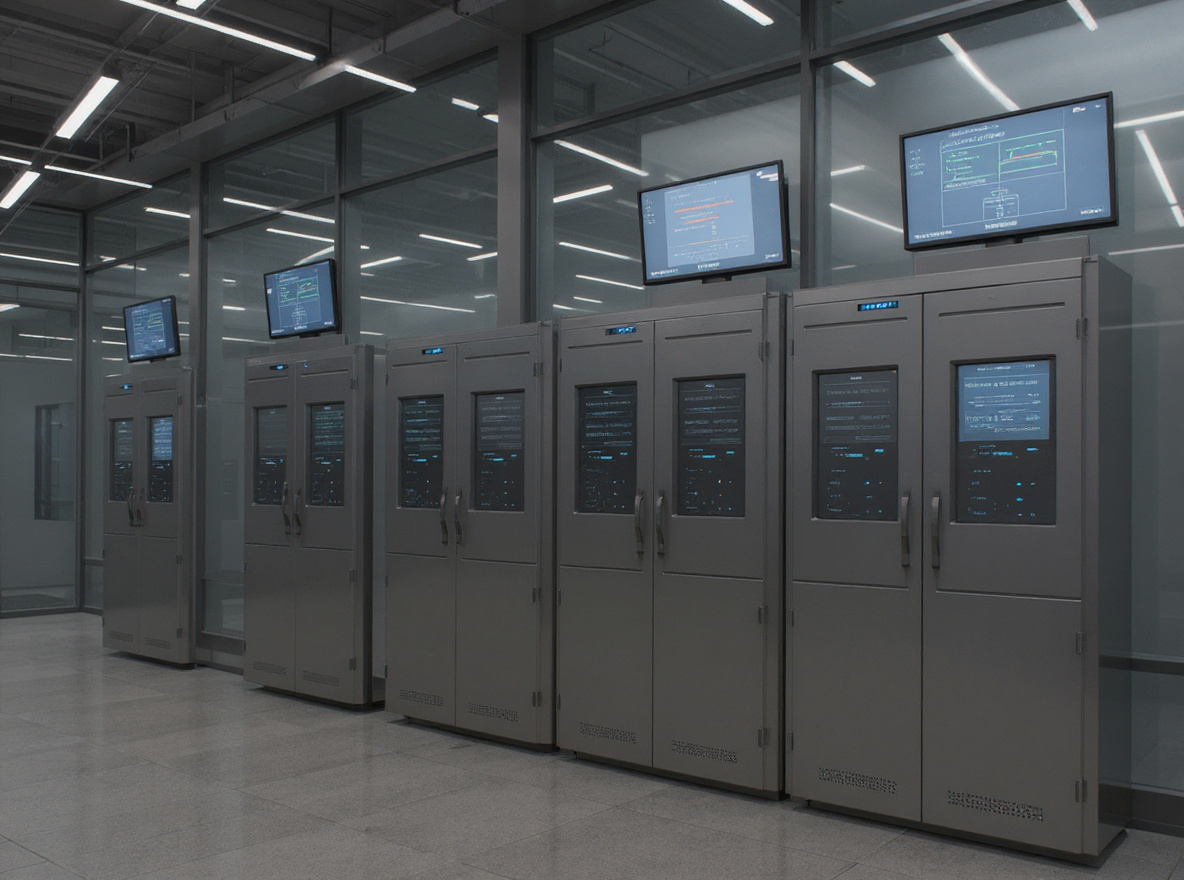

Building automation and energy management systems with smart monitoring displays#1.2

Energy Management

Advanced energy management applications for optimizing power consumption and reducing operational costs in commercial buildings.

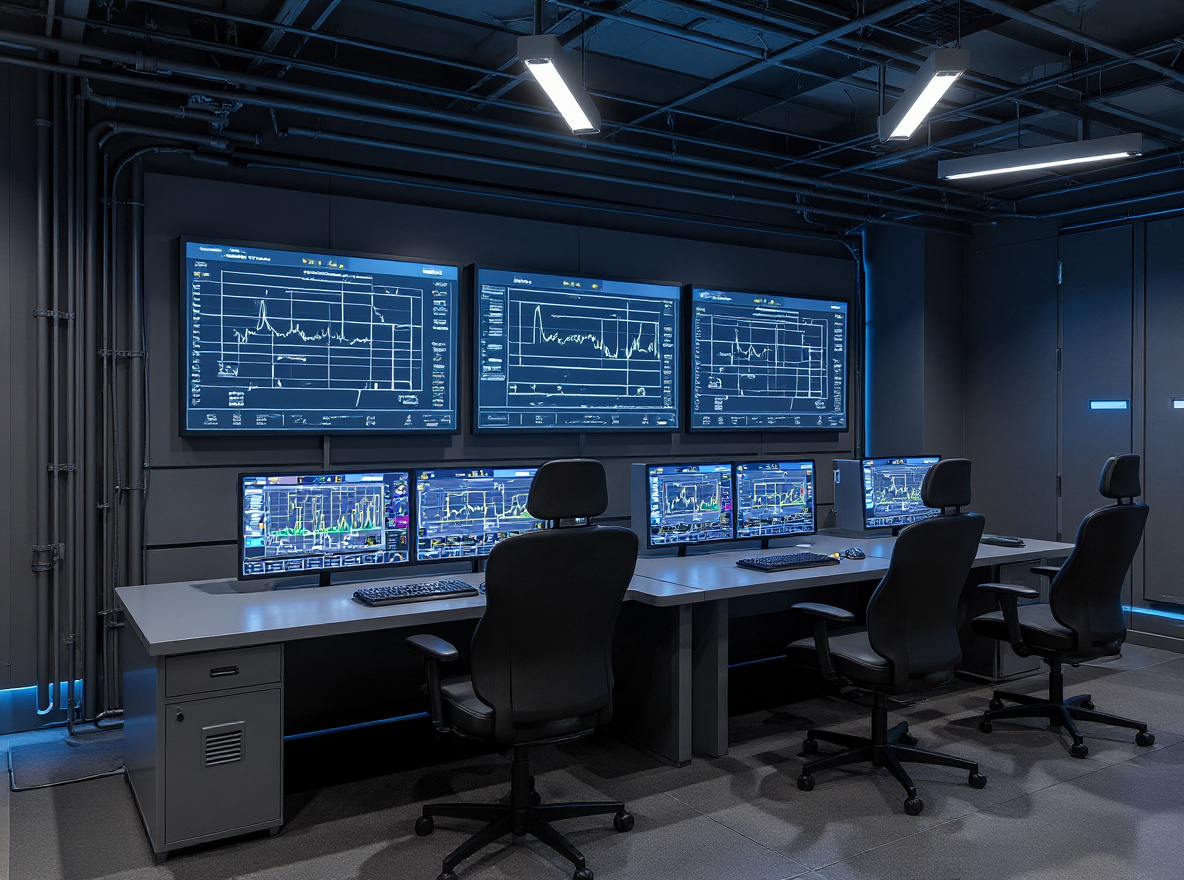

Building management system control room with SCADA integration displays#1.2

BMS & SCADA Integration

Seamless integration with Building Management Systems and SCADA networks for centralized facility monitoring and control.

Remote monitoring dashboard displaying power data visualization and analytics#1.2

Remote Monitoring

Real-time remote monitoring and data visualization capabilities for distributed power systems across multiple locations.

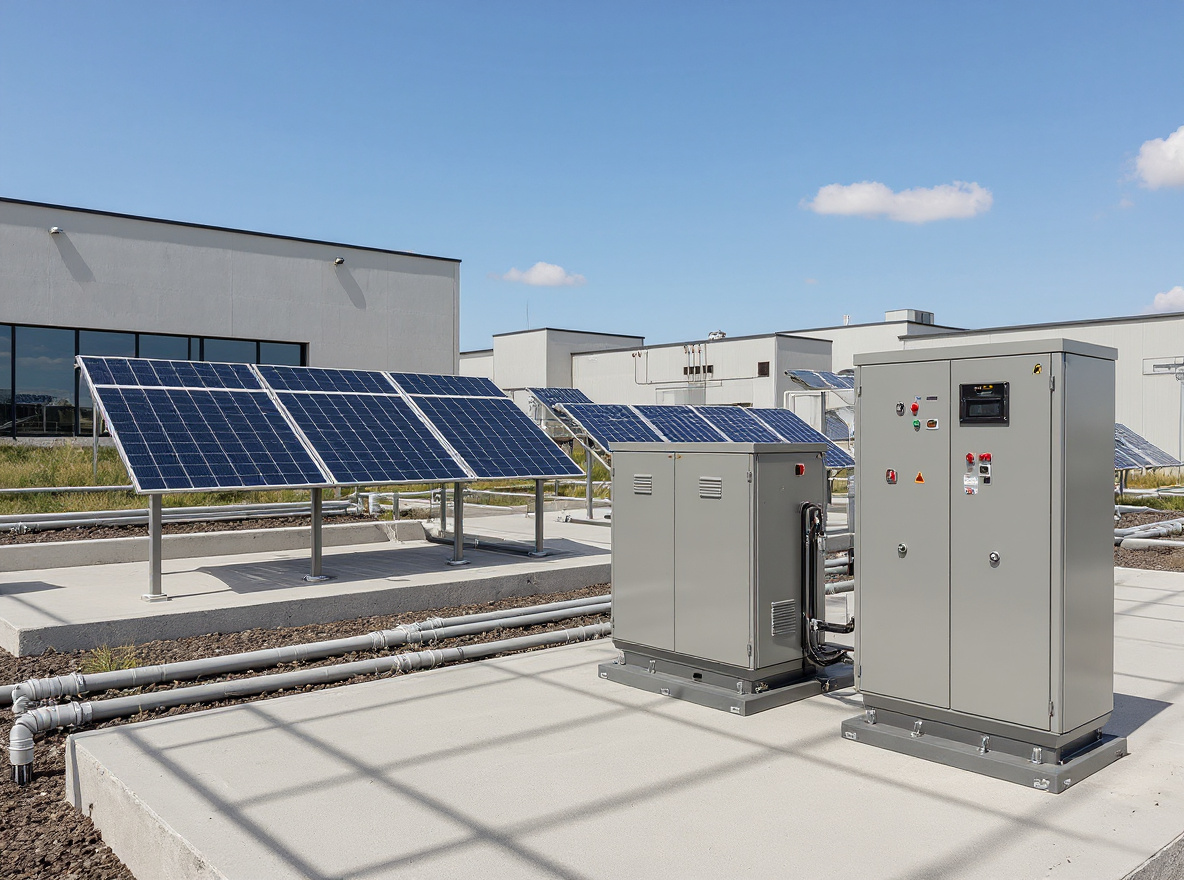

Solar photovoltaic and energy storage systems with power switching monitoring#1.2

PV & ESS Applications

Power switching and monitoring solutions specifically designed for photovoltaic and energy storage system applications.

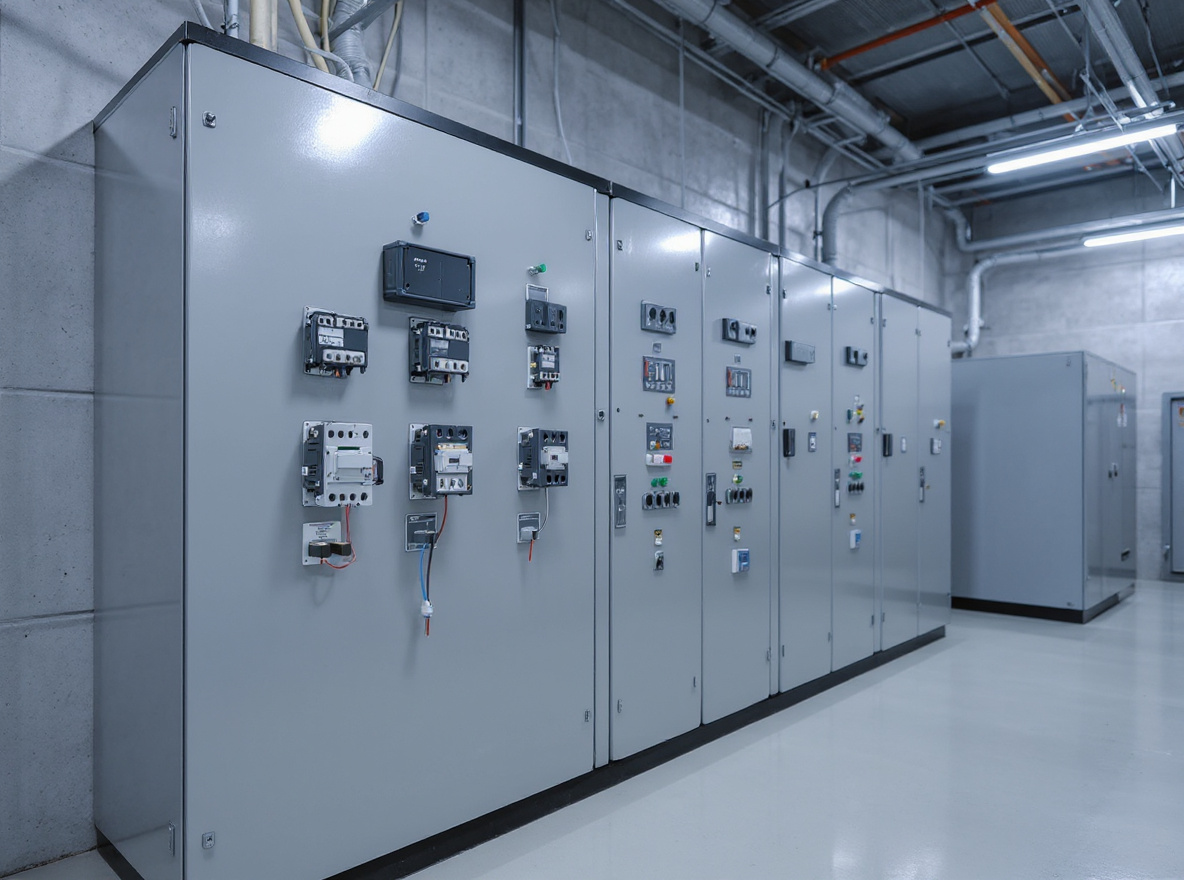

Industrial electrical installation with multiple circuit monitoring panels#1.2

Industrial Electrical

Heavy-duty industrial electrical installations requiring comprehensive monitoring of up to 196 individual circuits for maximum operational efficiency.

What Our Engineering Partners Say

Trusted by professionals worldwide for reliable power monitoring solutions and technical excellence.

Exceptional Technical Support

ValuAdd's expertise with the DIRIS Digiware D saved us significant troubleshooting time. Their technical knowledge and hands-on support made all the difference in our power monitoring implementation.

MJ

Michael Johnson

Maintenance Manager, ABC Manufacturing

Reliable Product Selection

The component selection support and reliability have made ValuAdd our go-to partner for all electrical panel design projects. Their knowledge of power monitoring systems is truly impressive.

ST

Sarah Thompson

Design Engineer, TechSystems Inc

Outstanding Local Support

The local support and territory-based service from ValuAdd is exceptional. They understand our industry challenges and provide solutions that work for our specific applications.

RD

Robert Davis

Operations Director, Industrial Solutions LLC

Comprehensive Integration Support

ValuAdd provided excellent guidance on integrating the DIRIS system with our existing SCADA network. Their understanding of communication protocols saved us countless hours of configuration.

JM

James Martinez

Systems Engineer, Midwest Food Processing

Expert Product Knowledge

Their deep expertise in power monitoring technologies helped us select the perfect configuration for our manufacturing facility. The DIRIS system has exceeded our expectations for reliability and functionality.

LC

Lisa Chen

Project Manager, Advanced Panel Solutions

Quick Response Support

When we needed rapid deployment of power monitoring equipment, ValuAdd delivered both product availability and technical expertise. Their responsiveness is unmatched in the industry.

DR

David Rodriguez

Electrical Manager, AutoTech Manufacturing

Complete DIRIS Digiware Product Family

Discover our comprehensive range of power monitoring solutions designed to meet diverse industrial and commercial requirements.

DIRIS Digiware C-31

Compact RS485 system interface that centralizes all system data with single auxiliary 24 VDC power supply feeding the entire system through Digiware bus for streamlined installations.

ignoreGeneration#DIRIS Digiware C-31 Learn More

DIRIS Digiware RJ45 bus termination

Essential RJ45 terminating resistor for Digiware bus systems that must be placed on the last module to ensure proper communication integrity and signal quality.

ignoreGeneration#DIRIS Digiware RJ45 bus termination Learn More

DC sensor Molex RJ12 cables

Plug & Play pre-crimped cables with color-coded design to avoid errors, carrying power supply from Idc module to DC current sensors with safe low voltage output for easy installation.

ignoreGeneration#DC sensor Molex RJ12 cables Learn More
