UL248-13 certified#1.0 UL248-13
CSA C22.2 certified#1.0 CSA C22.2
IEC 60269 certified#1.0 IEC 60269

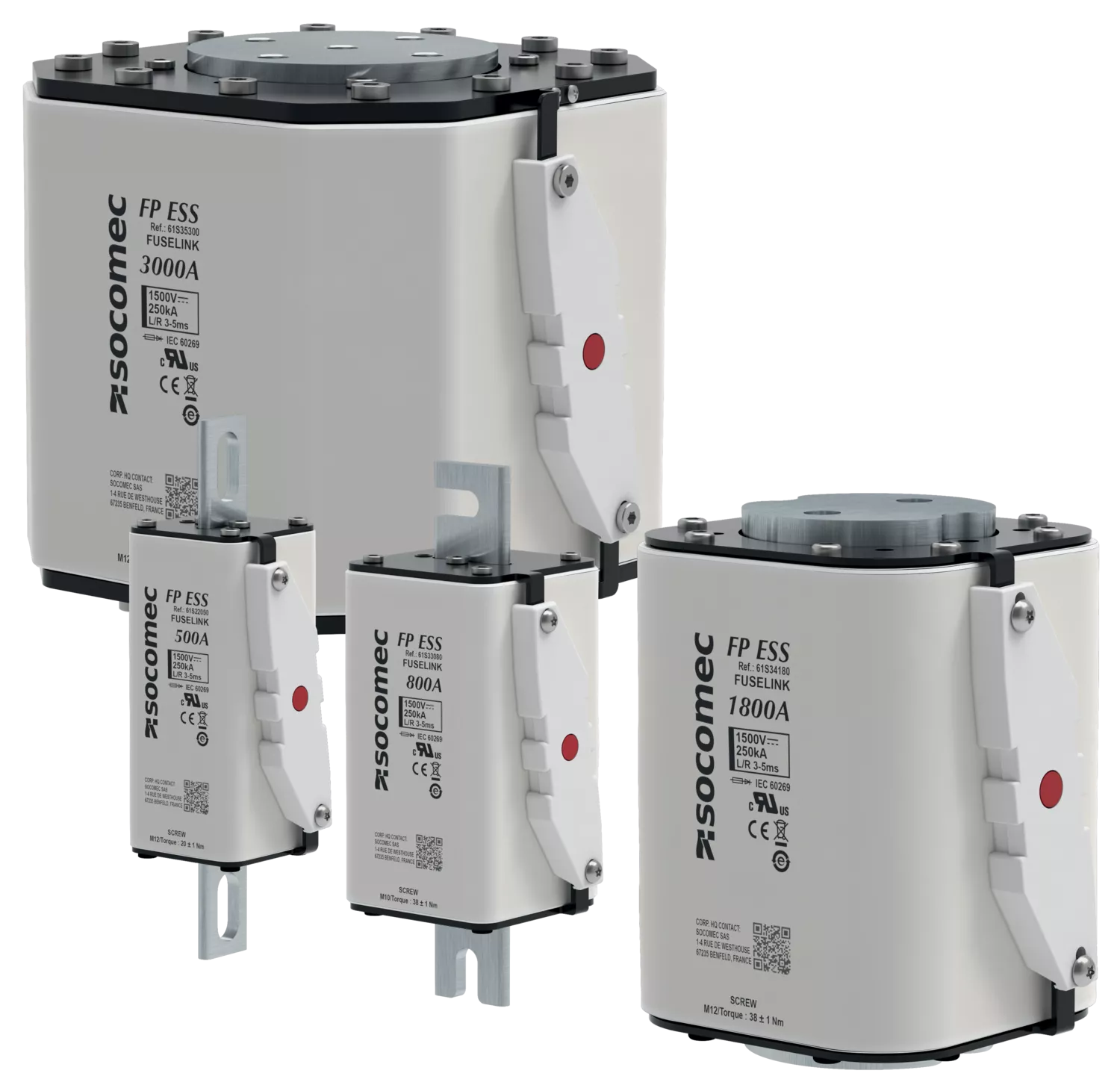

FP ESS

Premium performance for energy storage
Silver-based composition protection
Up to 250 kA capacity
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert technical support
Manufacturer warranty
Certifications: UL248-13, CSA, IEC

FP ESS Technical Specifications

Complete electrical specifications and performance characteristics for the FP ESS energy storage fuses.

Parameter
Specification
Current Range
160 to 3000 A
Continuous Voltage
up to 1500 VDC
Short Circuit Current Capacity
up to 250 kA
Composition
Silver-based composition
Mounting Options
Multiple mounting types available
Protection Features
Premature ageing protection
Application
Energy storage systems
Network Type
DC networks high voltage
Coordination
Certified with load break switches
Country of Origin
🇫🇷 France

Engineered for Energy Storage Excellence

Advanced protection technology specifically designed for demanding DC energy storage applications.

Energy Storage Optimized

Specifically designed for DC networks with high voltage and short circuit levels in energy storage applications, ensuring optimal performance and safety.

Premium Reliability

Increased reliability ensuring consistent performance over time with silver-based composition that protects against premature ageing for extended service life.

High Capacity Protection

Capable of handling up to 250 kA short circuit current with voltage ratings up to 1500 VDC, providing robust protection for critical energy storage systems.

Flexible Installation

Multiple mounting types available to accommodate various installation requirements and certified coordination with load break switches for seamless integration.

Industry Certified

Meets rigorous international standards including UL248-13, CSA C22.2 NO. 248.1-11, IEC 60269-1, and IEC 60269-4 for global compliance and reliability.

Grid Services Ready

Perfect for energy storage grid services applications, battery rack protection, and battery connection panel protection against short circuits and overloads.

Frequently Asked Questions

What makes FP ESS fuses suitable for energy storage systems?
FP ESS fuses are specifically engineered for DC networks with high voltage and short circuit levels found in energy storage applications. They feature silver-based composition for protection against premature aging and offer premium performance with high current capacity up to 3000A and short circuit protection up to 250 kA.
What certifications do FP ESS fuses have?
FP ESS fuses are certified to multiple international standards including UL248-13, CSA C22.2 NO. 248.1-11, IEC 60269-1, and IEC 60269-4. These certifications ensure compliance with safety and performance standards across different markets and applications.
Can FP ESS fuses be used with load break switches?
Yes, FP ESS fuses feature certified coordination with load break switches, ensuring seamless integration and optimal protection performance when used together in energy storage system protection schemes.
What mounting options are available for FP ESS fuses?
FP ESS fuses are available with multiple mounting types to accommodate various installation requirements and cabinet configurations. This flexibility ensures easy integration into different energy storage system designs and layouts.
What technical support is available for FP ESS products?
Comprehensive technical support includes access to product catalogs, operating instructions, technical documents, software, CAD files, and quick start guides. Expert technical assistance is available for custom applications and system design consultation.

Versatile Applications Across Energy Storage Systems

FP ESS fuses provide critical protection across diverse energy storage and grid service applications.

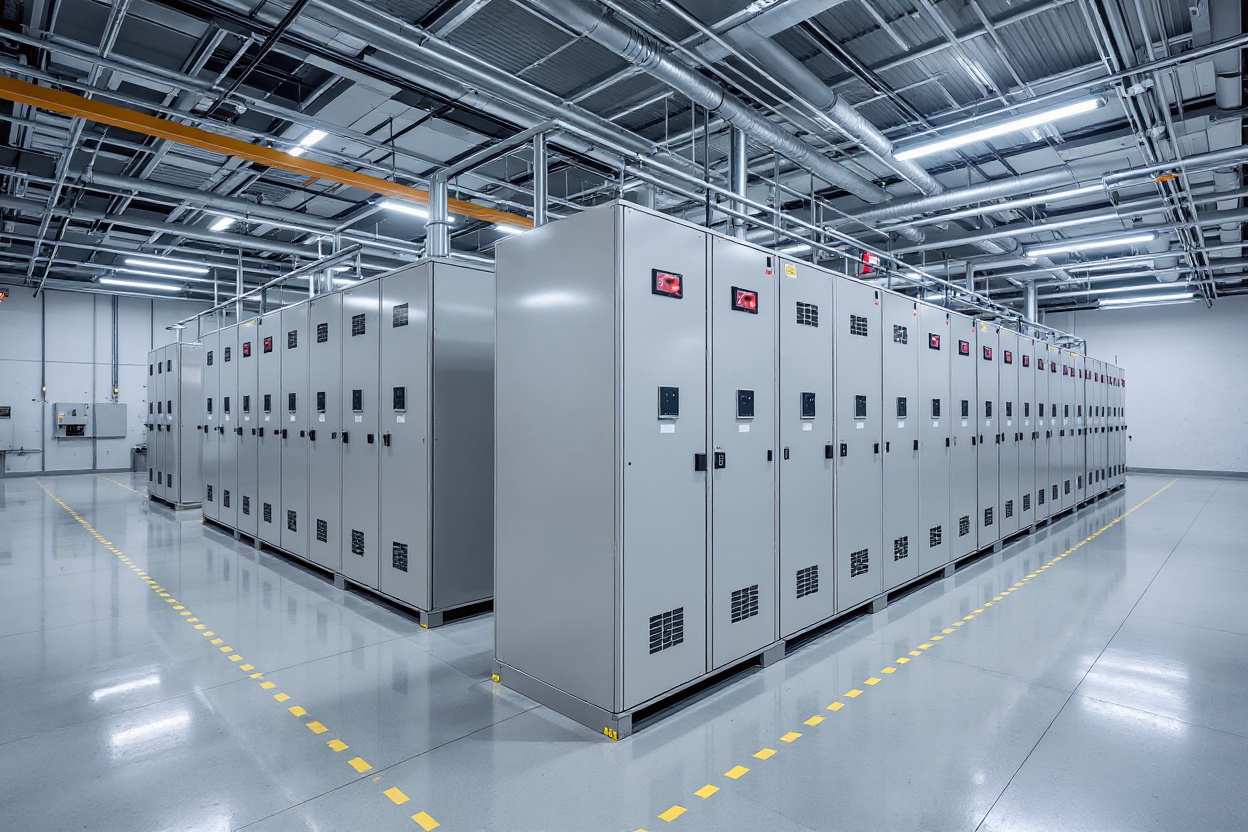

Energy storage battery systems and racks requiring DC protection#1.5

Energy Storage Applications

Critical protection for battery energy storage systems requiring high-performance DC fuse protection for safe and reliable operation.

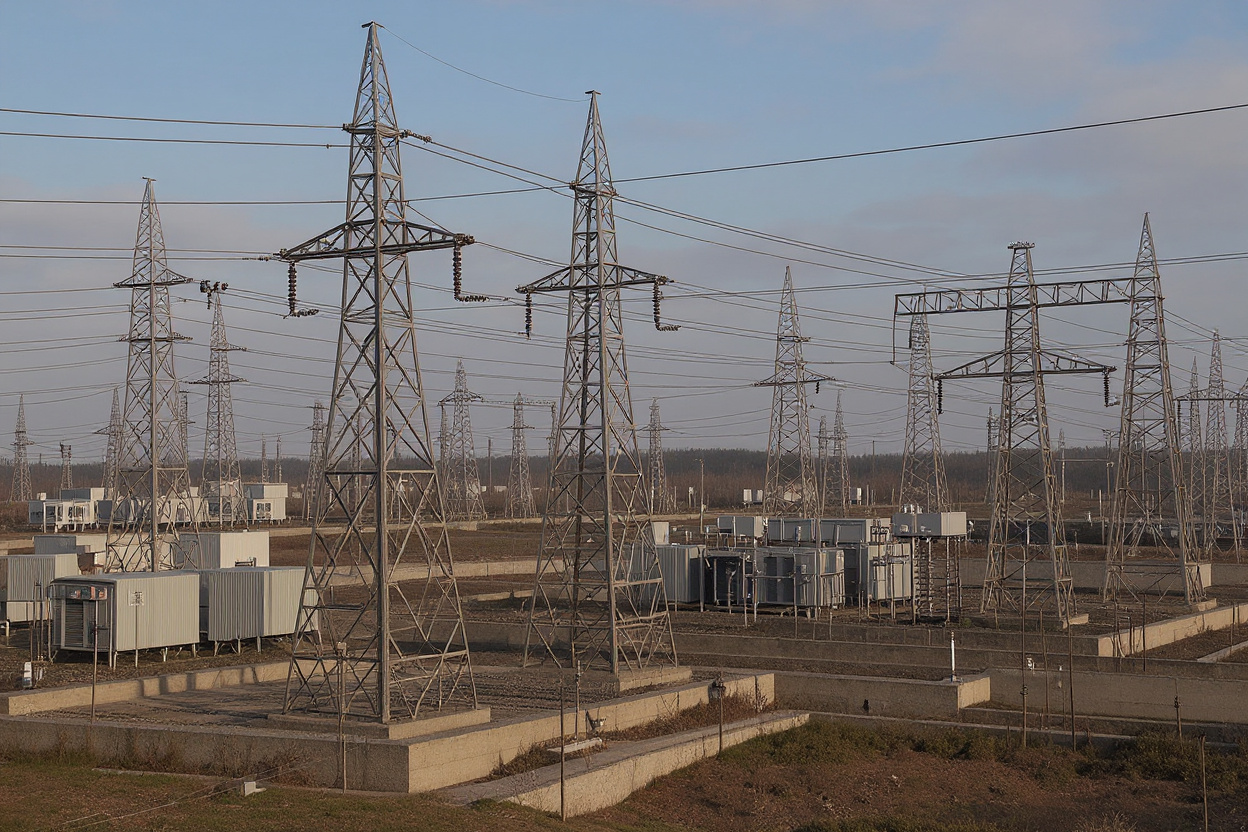

High voltage DC network infrastructure and electrical distribution#1.5

DC Networks

Specialized protection for high voltage DC networks with demanding short circuit levels and premium performance requirements.

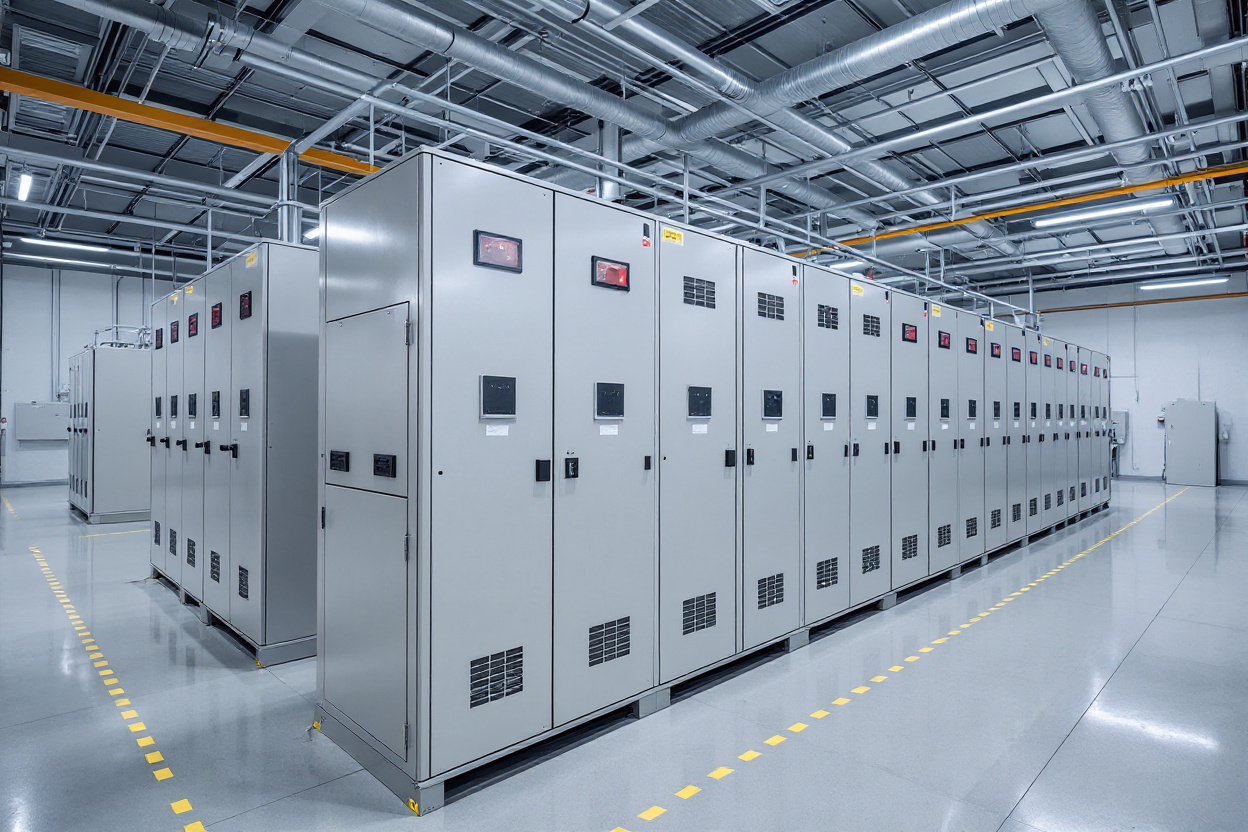

Battery rack protection systems and connection panels for energy storage#1.5

Battery Protection

Comprehensive protection for battery racks and battery connection panels against short circuits and overloads in storage systems.

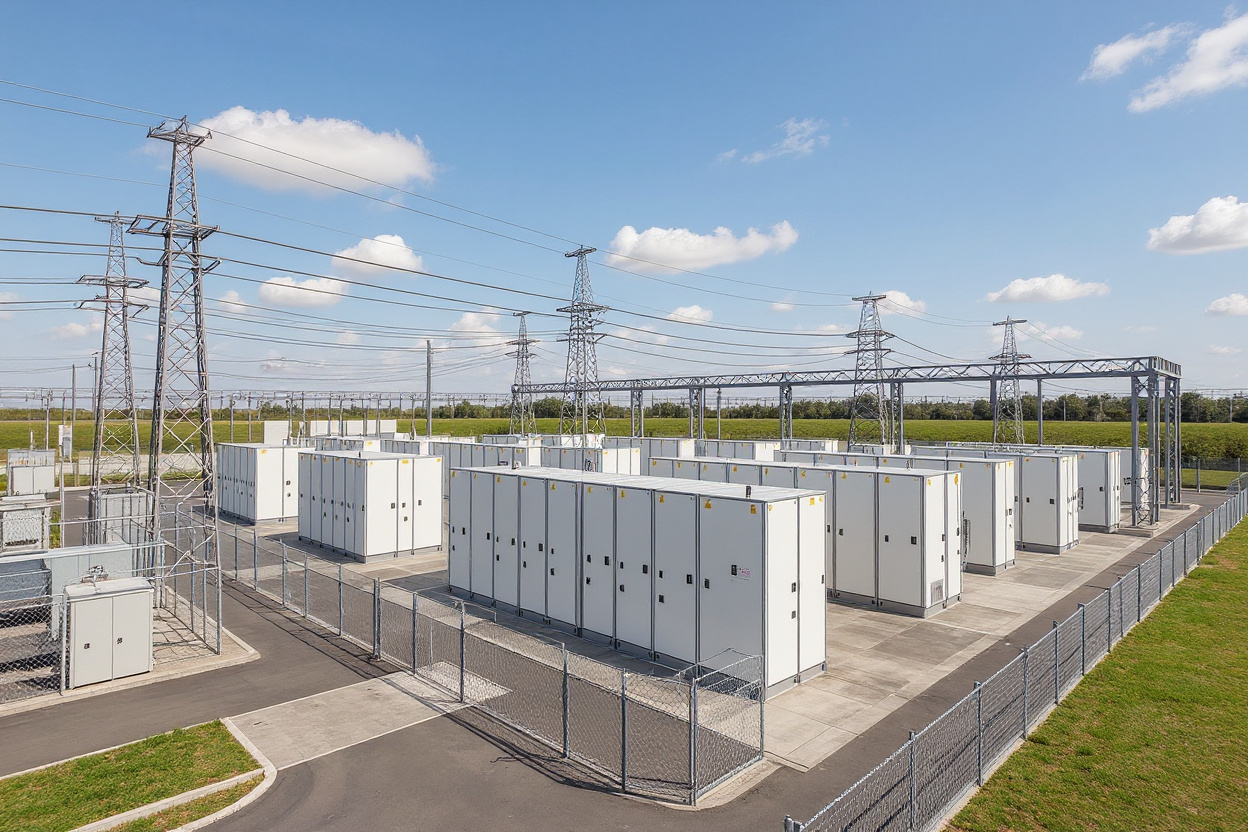

Grid services energy storage systems and utility scale installations#1.5

Grid Services

Essential protection for energy storage systems providing grid services including frequency regulation and peak shaving applications.
