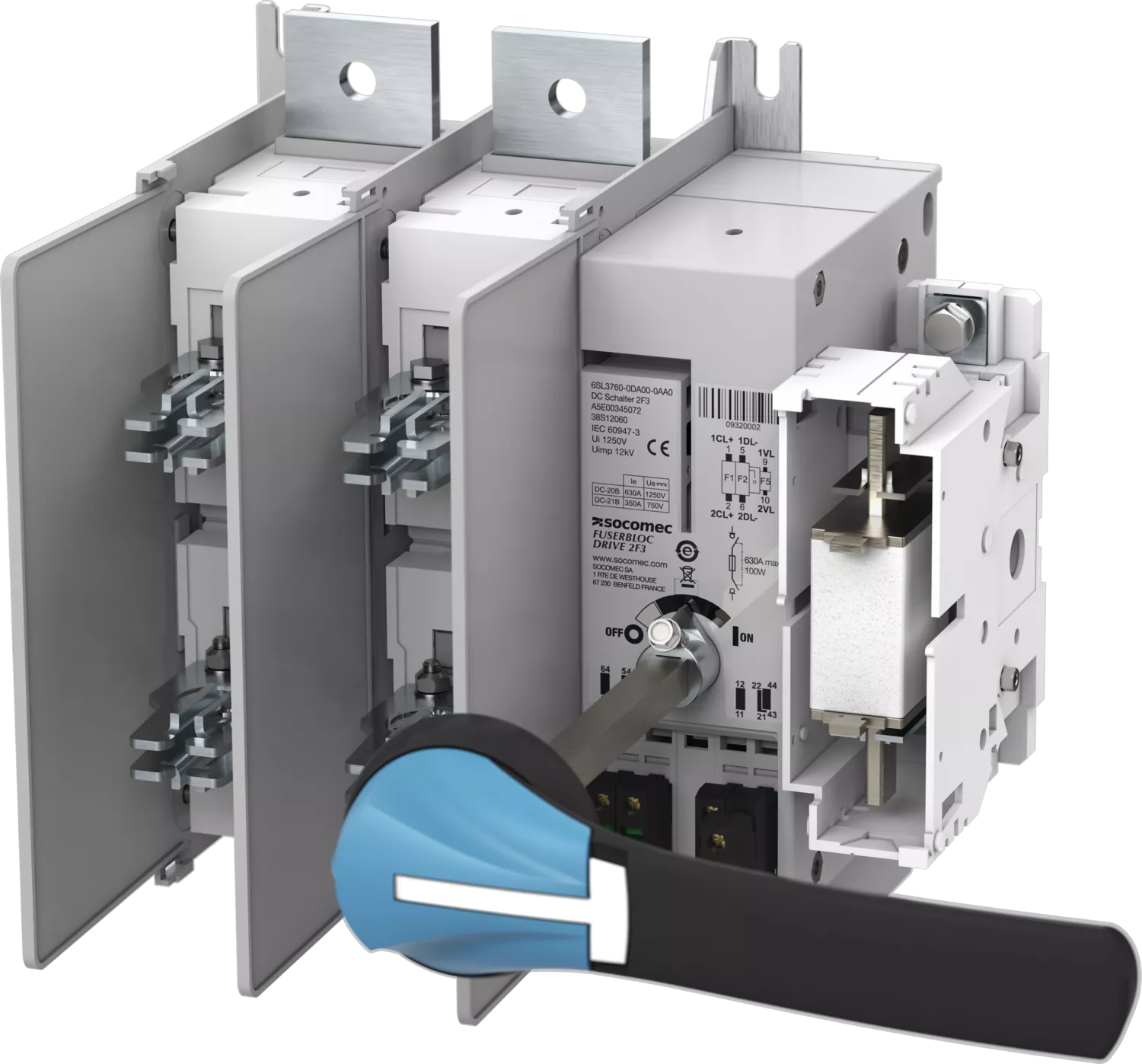

FUSERBLOC DRIVE 1PP

Combines disconnection, protection, and pre-charging
Automatic pre-charging via coil
Safe double phase isolation
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Fast Delivery
Expert Support
Certifications: IEC, UL, RoHS

Technical Specifications at a Glance

Detailed specifications for the FUSERBLOC DRIVE 1PP multipole DC fuse load break switches designed for drive protection applications.

Parameter
Specification
Versions
4 versions with rated currents: 630A (38S12060), 800A (38S12080), 1200A (38S14100), 1700A (38S14160)
Poles
2 or 4 (2//)
Fuse Size
Size 3
Frame Sizes
2F3, 2F4, 2X2F3, 2x2F4
Type
KN/110 or DIN 43620
Operation
Direct and external operation, with 2 power poles plus 1 pre-charged pole, up to 1700 A
Standards Compliance
IEC 60947-3, UL98
Environmental Compliance
REACH compliant, RoHS compliant
Manufacturer
🇫🇷 France

Engineered for Superior Protection

Advanced DC switching technology combining safety, efficiency, and reliability for variable speed drives and inverter applications.

Triple Function Design

Simple and compact solution combining disconnection, protection, and pre-charging in a single device for streamlined installation.

Overcurrent Protection

Offers overcurrent protection for all low-voltage electrical circuits of capacitive loads by limiting high inrush current during circuit power-up.

Automatic Pre-charging

Automatic pre-charging of inverter capacitors managed via coil, eliminating manual intervention and ensuring consistent performance.

Personnel Safety

Double phase isolation (upstream-downstream from the fuse), disconnection, and padlocking capabilities ensure maximum personnel safety.

Maintenance Friendly

Enables maintenance work on part of power system while leaving rest of equipment powered on, reducing downtime and operational costs.

Extended Lifespan

Replace only the fuse - not the entire protection system - to extend installation lifespan and reduce maintenance costs.

Frequently Asked Questions

What makes FUSERBLOC DRIVE different from standard fuse switches?
FUSERBLOC DRIVE combines three critical functions in one device: disconnection, overcurrent protection, and automatic pre-charging of inverter capacitors, providing a complete solution for DC drive applications.
Which current ratings are available for FUSERBLOC DRIVE 1PP?
Four versions are available with rated currents of 630A, 800A, 1200A, and 1700A to accommodate different power requirements for variable speed drives and inverters.
How does the automatic pre-charging function work?
The automatic pre-charging is managed via a coil that controls the pre-charging of inverter capacitors, eliminating high inrush currents and ensuring safe, controlled startup of drives.
Can I perform maintenance without shutting down the entire system?
Yes, FUSERBLOC DRIVE enables maintenance work on part of the power system while leaving the rest of the equipment powered on, minimizing downtime and operational disruption.
What safety certifications does FUSERBLOC DRIVE 1PP have?
The product is certified to IEC 60947-3 and UL98 standards, and is compliant with REACH and RoHS environmental regulations for global market acceptance.

Versatile Applications

FUSERBLOC DRIVE 1PP provides reliable protection across multiple industrial sectors requiring variable speed drive protection.

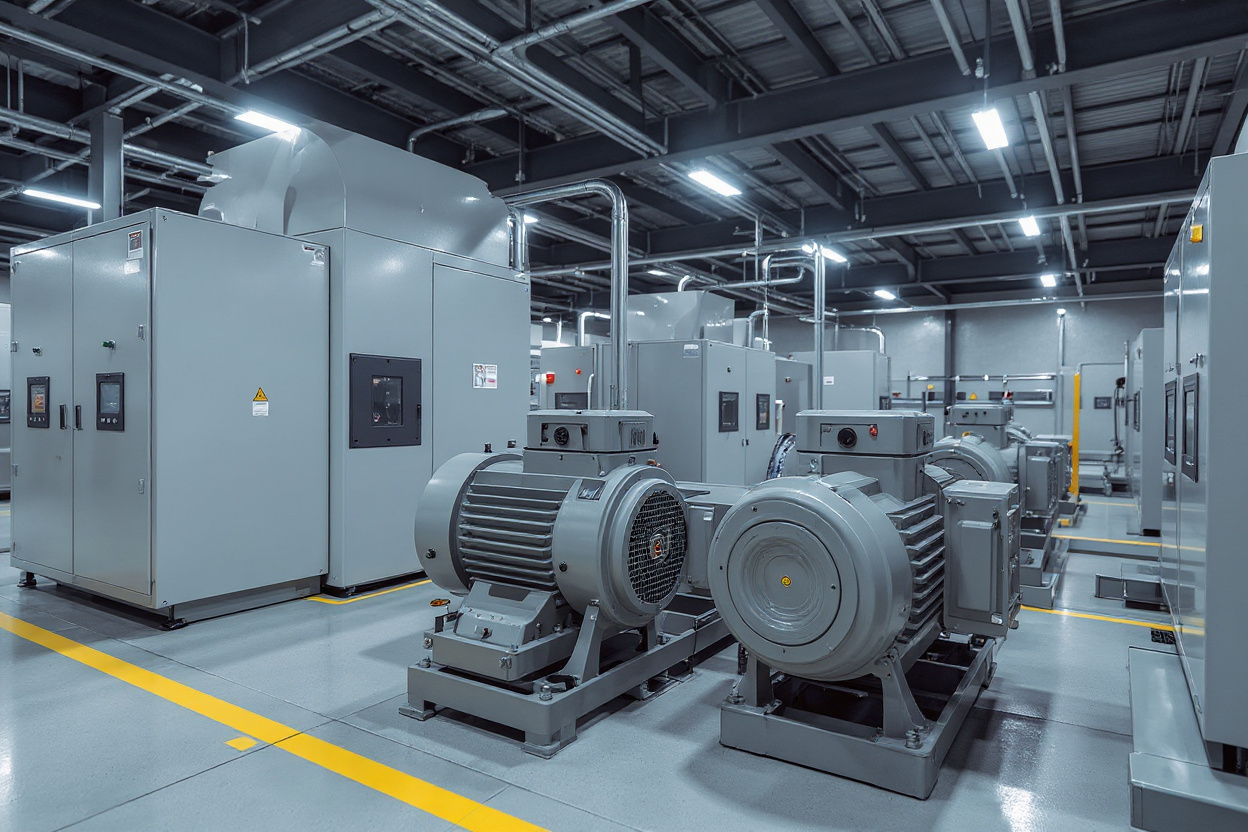

Industrial motor and drive protection applications in manufacturing and automation#1.6

Drive Protection

Essential protection for drives and motors in industrial automation and variable frequency drive applications.

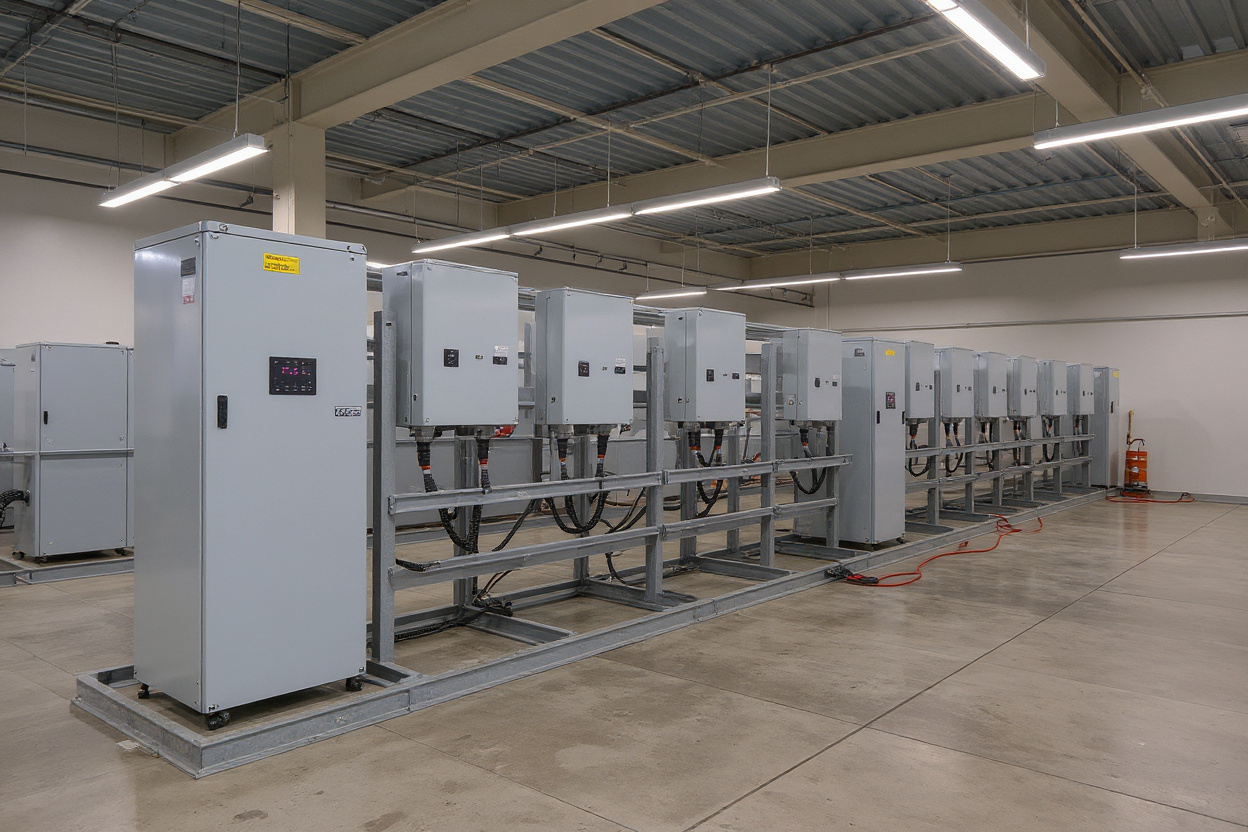

Photovoltaic inverter systems requiring DC circuit protection and switching#1.6

PV Inverters

Designed for maintenance work on DC/AC variable speed drives or PV inverters without shutting down entire installations.

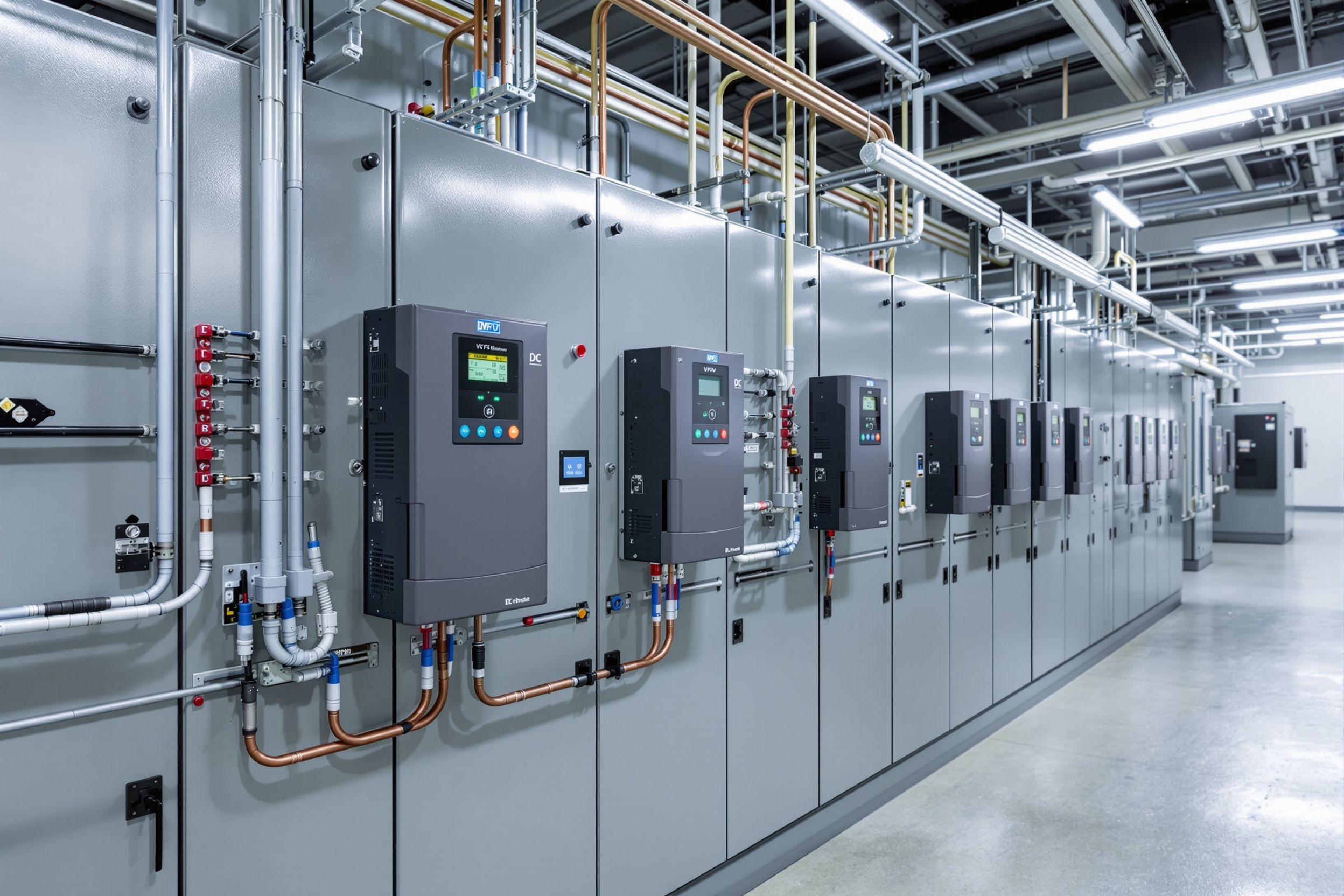

Variable speed drives under common DC bus configurations for shared power systems#1.6

DC Bus Systems

Ideal for variable-speed drives under a common DC bus where selective protection and maintenance is required.
