IEC certified#1.0 IEC Certified
UL certified#1.0 UL Certified

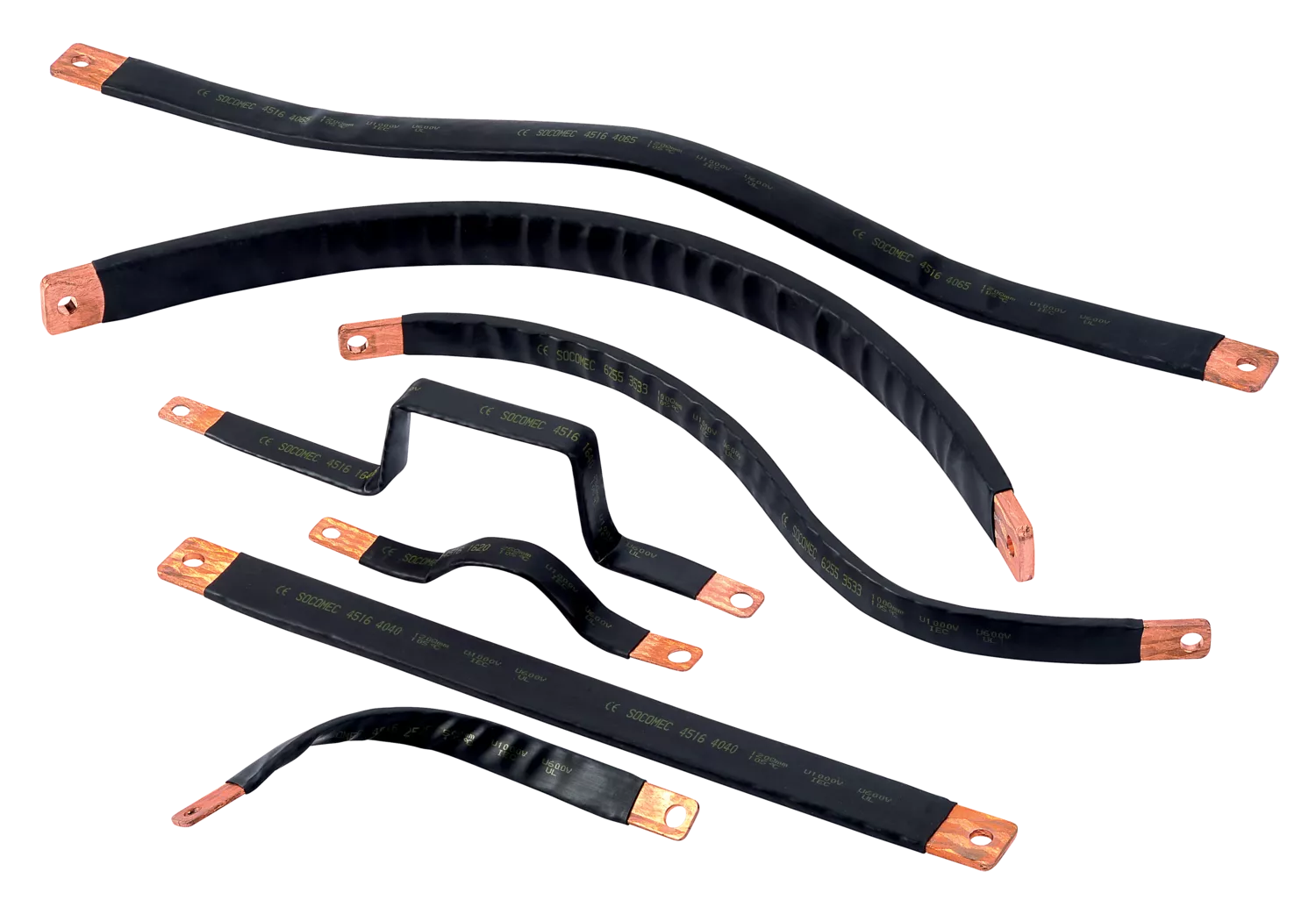

Insulated Copper Braids

Flexible electrical connections
Compact design
Amperage up to 1000A
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Contact for shipping details
Technical support available
Certifications: IEC, UL
View Specs

Technical Specifications Overview

Comprehensive technical details for Socomec Insulated Copper Braids including dimensions, certifications, and performance characteristics.

Specification
Details
Available Versions
27 versions available
Height Range
20-32mm
Thickness Range
1.5-10mm
Length Range
220-824mm
Current Rating
Up to 1000A
Conductor Material
Copper
Construction
Pre-wired, flexible braided design
Certifications
IEC certified, UL certified
Compatibility
SOCOMEC devices and commercial circuit breakers

Engineered for Maximum Performance

Socomec Insulated Copper Braids deliver superior electrical connectivity with unmatched flexibility and reliability for demanding industrial applications.

High Current Capacity

Handles amperage up to 1000A with exceptional conductivity and minimal resistance, ensuring reliable power distribution in high-demand electrical systems and panels.

Compact Design

Space-efficient construction enables complex connections in minimal space, perfect for densely packed electrical panels where every inch of space matters for optimal design.

Flexible Installation

Pre-wired braided construction with adaptable orientation allows for easy installation and configuration changes, reducing installation time and maintenance complexity significantly.

Certified Quality

IEC and UL certified ensuring compliance with international safety standards and regulatory requirements for industrial and commercial electrical installations worldwide.

Wide Compatibility

Compatible with SOCOMEC devices and most commercial circuit breakers, providing versatile connectivity options for diverse electrical system configurations and applications.

Multiple Lengths

Available in lengths from 200 to 800mm with various thickness and height options, offering customized solutions for specific installation requirements and panel configurations.

Frequently Asked Questions

What is the maximum current rating for these copper braids?
Socomec Insulated Copper Braids can handle amperage up to 1000A, making them suitable for high-current applications in industrial electrical panels and distribution systems.
Are these braids compatible with different circuit breakers?
Yes, the braids are designed to be compatible with SOCOMEC devices and most commercial circuit breakers, providing versatile connectivity options for various electrical systems.
What length options are available for these copper braids?
Insulated Copper Braids are available in lengths from 200 to 800mm with various thickness and height configurations to meet specific installation requirements.
What certifications do these copper braids have?
The Insulated Copper Braids are IEC certified and UL certified, ensuring compliance with international safety standards and regulatory requirements for industrial applications.
How many versions of copper braids are available?
There are 27 different versions available, offering various combinations of height, thickness, and length specifications to suit different electrical panel configurations and requirements.

Versatile Applications Across Critical Industries

Socomec Insulated Copper Braids provide reliable power connections for distribution panels, upstream devices, and complex electrical configurations across multiple industrial sectors.

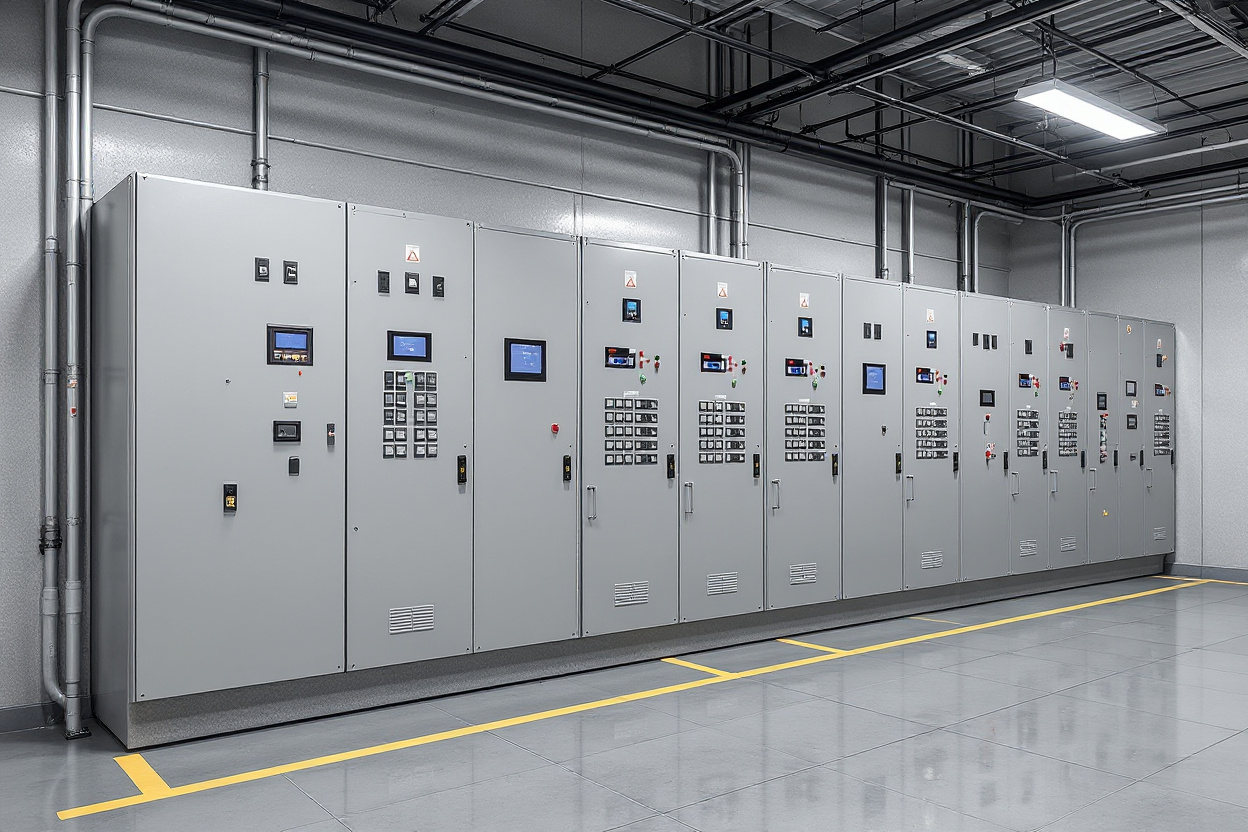

Power distribution systems for electrical panels and control cabinets#1.5

Electrical Panels

Power connections between series of distribution busbars and upstream devices within electrical panels for reliable electrical distribution.

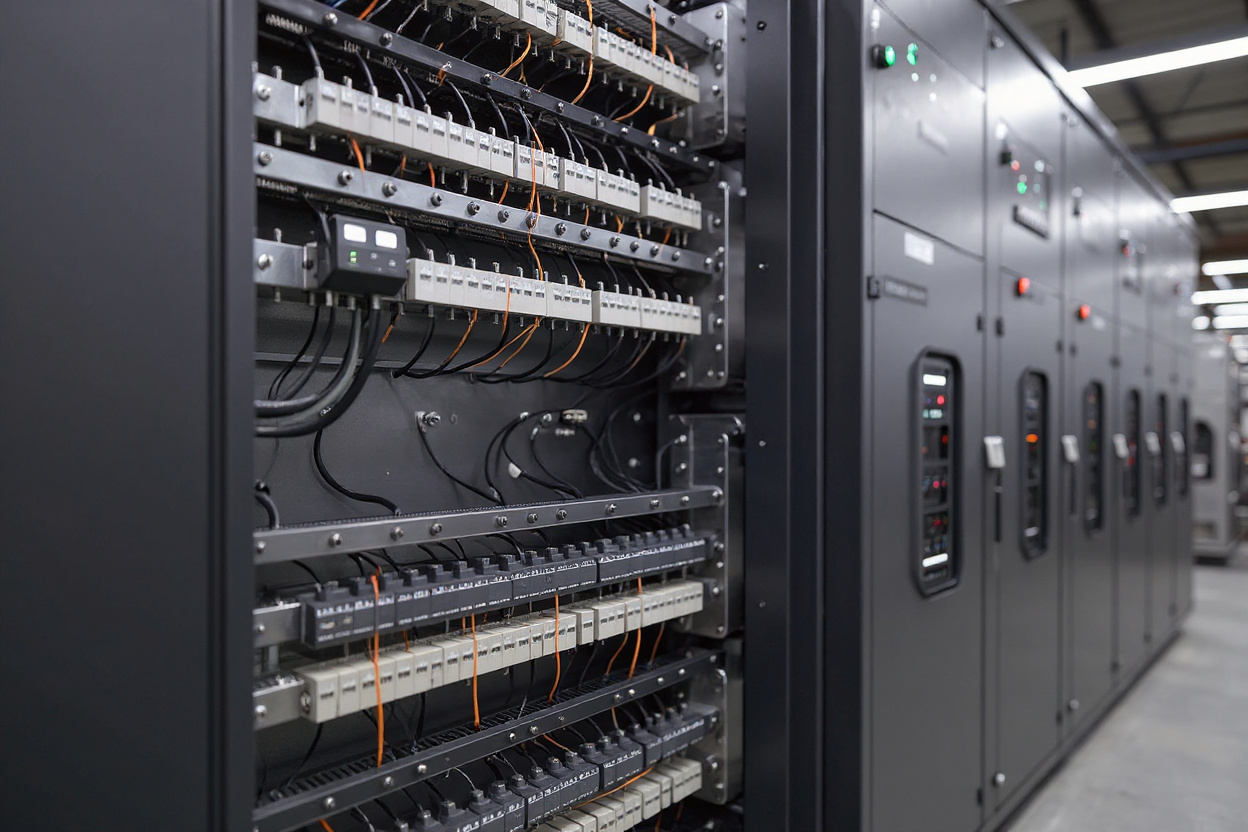

Complex electrical connections in compact industrial automation systems#1.5

Industrial Automation

Complex and customized connections in minimum space for industrial automation systems requiring flexible electrical connectivity solutions.

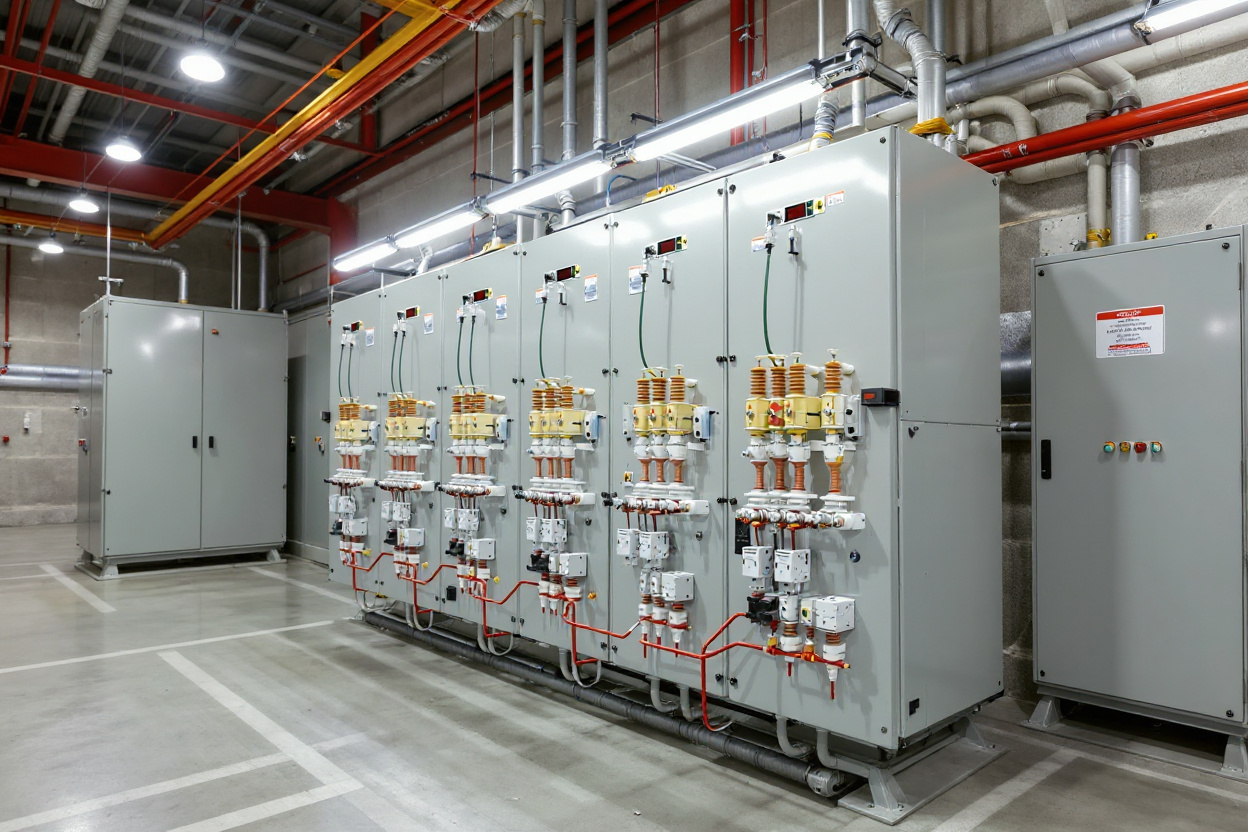

High current applications up to 1000A in power distribution systems#1.5

High Current Applications

Wide range of applications with amperage up to 1000A for heavy-duty industrial power distribution and high-current electrical systems.
