Isoflexx® laminated busbars

Very good flexibility

UL approval

40% smaller cross-section than cables

Price Price Available on Request

Custom cutting available

SPS assembly services

Certifications: UL, CE, ISO 9001

Technical Specifications Overview

Detailed technical parameters and specifications for Isoflexx® laminated busbars.

Parameter

Specification

Cross Sections

Up to 1200 mm²

Standard Length

2000 mm

Lamella Thickness

0.5 - 1.0 mm

Copper Material

Cu-ETP

Tensile Strength

200 MPa [R200]

Electrical Conductivity

58 MS/m

Dielectric Strength

16-21 kV/mm

Temperature Range

-40°C / +105°C (Classic)

Voltage Rating

1000 VAC/1500 VDC

Country of Origin

🇩🇪 Germany

Engineered for Superior Performance

Experience the advantages of Isoflexx® laminated busbars designed for modern electrical installations.

Excellent Flexibility

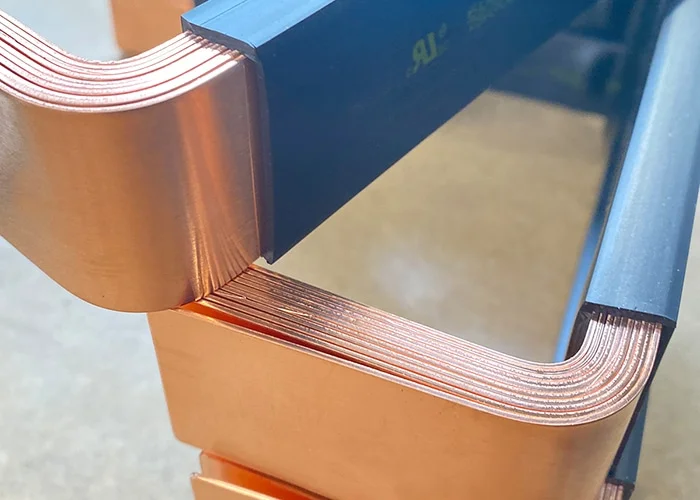

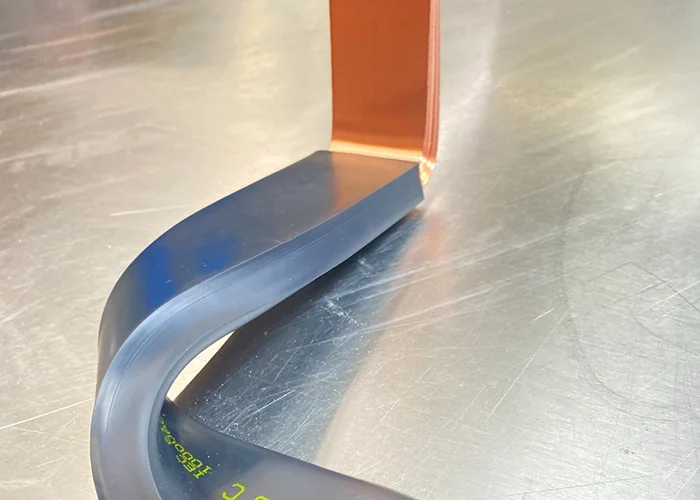

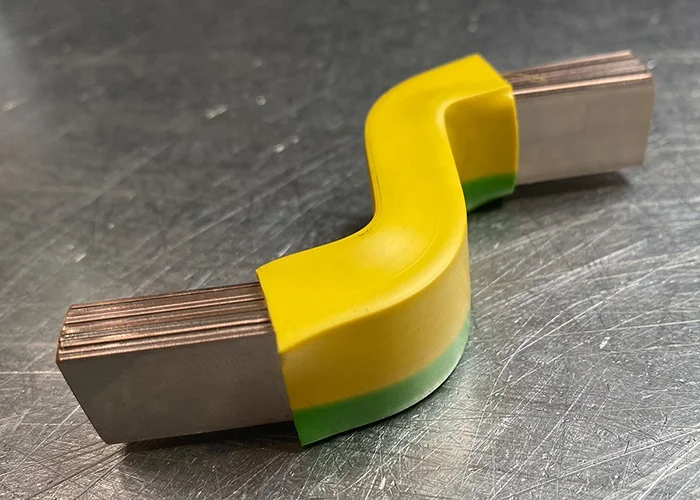

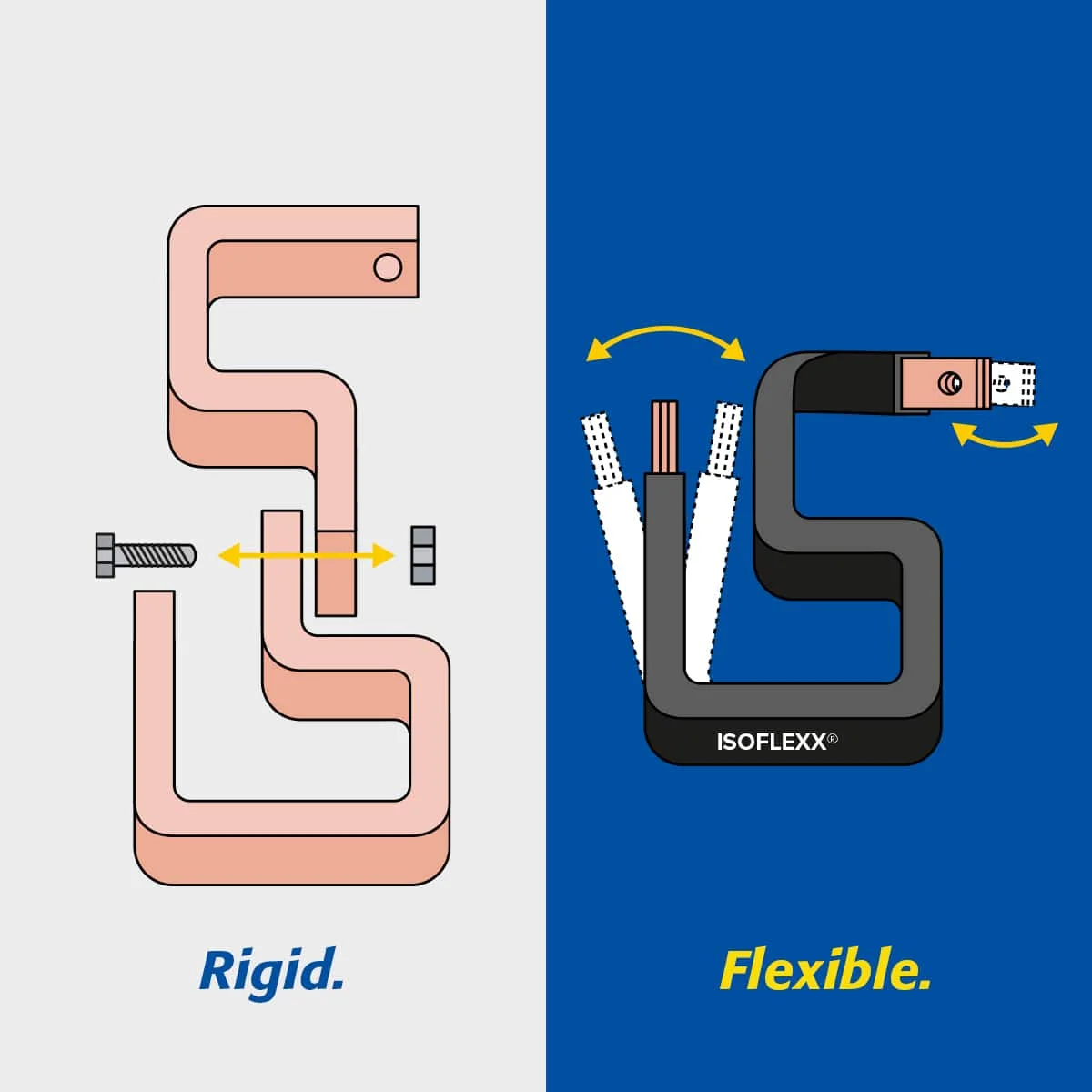

Loose lamellae design allows easy bending and twisting, providing exceptional flexibility during installation while maintaining structural integrity and performance.

Space Saving Design

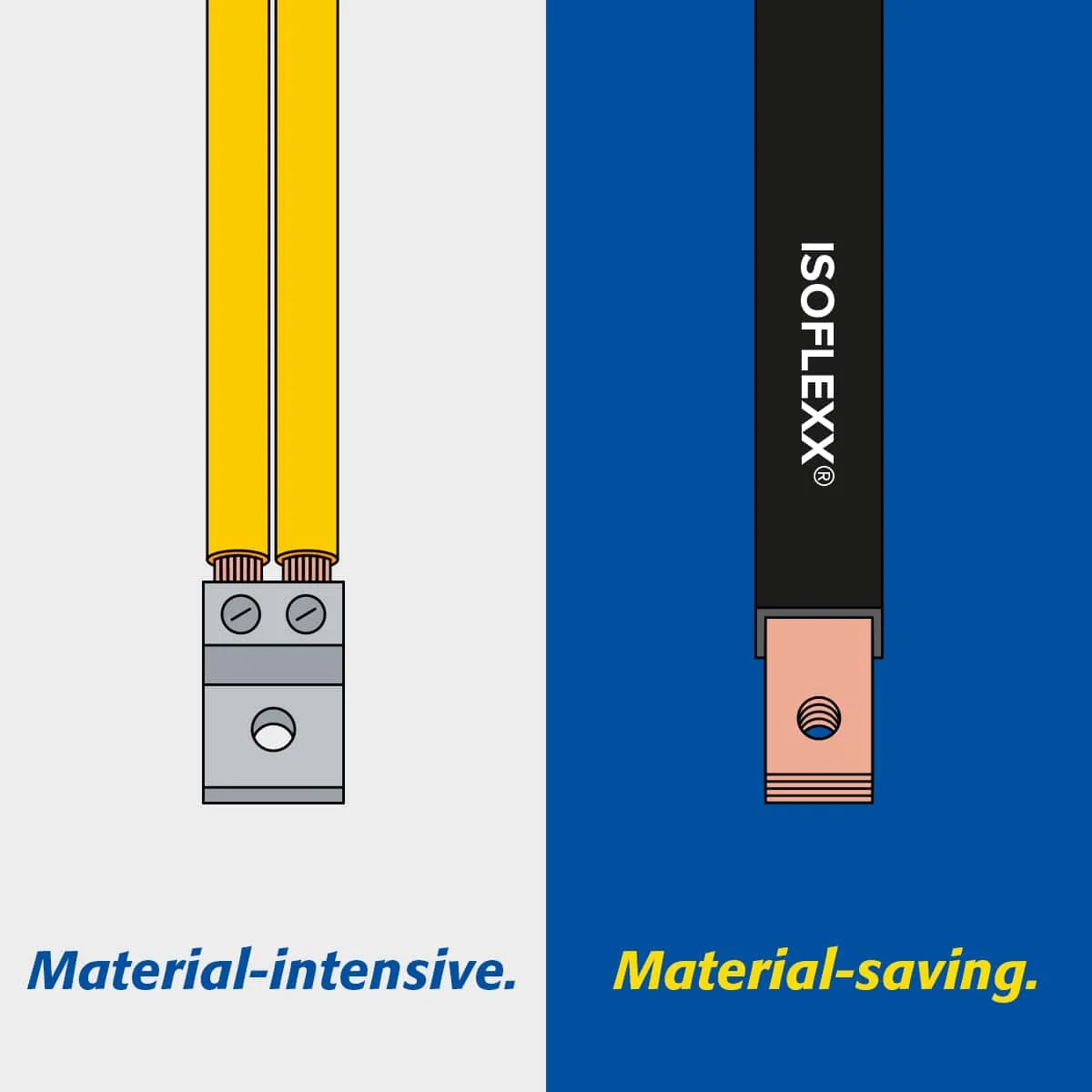

Up to 40% smaller conductor cross-section compared to cables with same current capacity, allowing smaller bending radii and more compact installations.

UL Certified Quality

UL 758 and UL 508 approvals ensure compliance with international safety standards for control cabinet and low-voltage applications.

High Inherent Strength

Reinforced edges and uniform insulation provide robust protection with excellent dielectric strength and heat resistance for demanding applications.

Easy Self-Assembly

Simple installation process reduces assembly time while compensating for construction tolerances, making installation efficient and reliable.

Customization Options

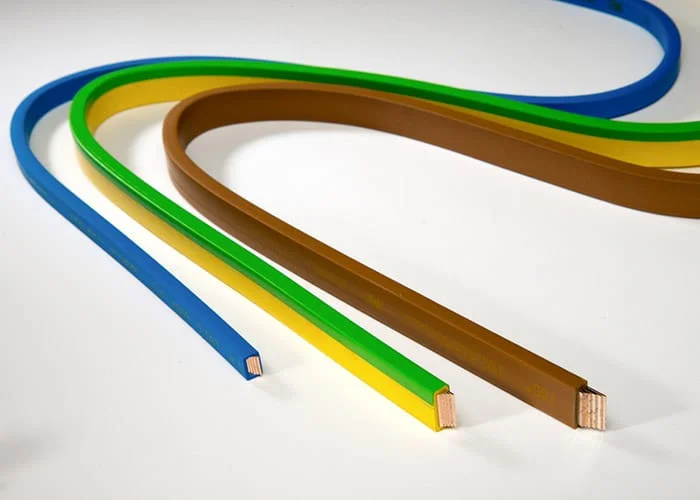

Choose standard colors or personalize your Isoflexx® busbars with custom specifications, hole patterns, and lengths to meet specific requirements.

Frequently Asked Questions

What are the main advantages of Isoflexx® busbars over traditional cables?

Isoflexx® busbars offer up to 40% smaller conductor cross-section than cables with same current capacity, excellent flexibility for easy installation, space-saving design, and reduced assembly time with construction tolerance compensation.

What certifications and standards do Isoflexx® busbars meet?

Isoflexx® busbars are certified to UL 758, UL 508, DIN EN ISO 9001, IEC 61439-1, CE, RoHS, REACH, and DIN EN 45545-2 for rail applications, ensuring compliance with international safety and quality standards.

What customization and assembly services are available?

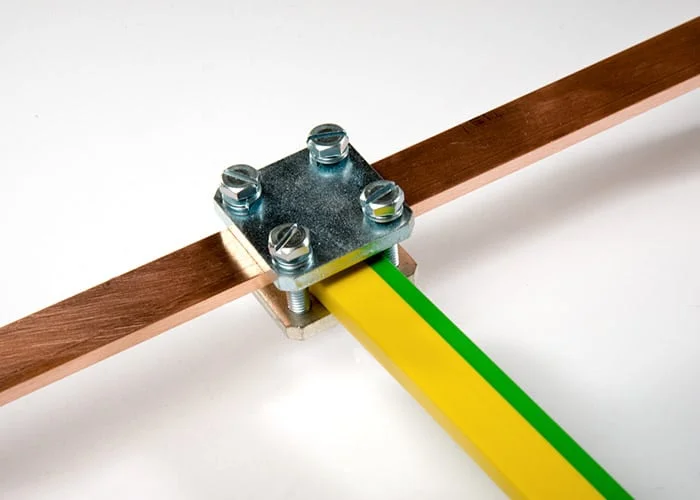

SPS offers cutting to length, bending, twisting, hole pattern insertion, press welding connections, personalizations, and custom packaging. Matching accessories include drilling templates, twisting tools, and connection clamps.

What are the temperature and voltage ratings for different Isoflexx® variants?

Classic and Rail variants operate from -40°C to +105°C, while Premium variant operates up to +190°C. All variants support 1000 VAC/1500 VDC with dielectric strength of 16-21 kV/mm depending on variant.

What applications are Isoflexx® busbars suitable for?

Ideal for control cabinet connections, low-voltage installations, generator/transformer connections, switchgear applications, machine switches, immersion baths, and as risers in electrical panels with drilling/punching capability.

Get Product Documentation

Request technical specifications and installation guides for Isoflexx® busbars.

Versatile Applications Across Multiple Industries

Isoflexx® laminated busbars provide flexible electrical connections for diverse industrial applications worldwide.

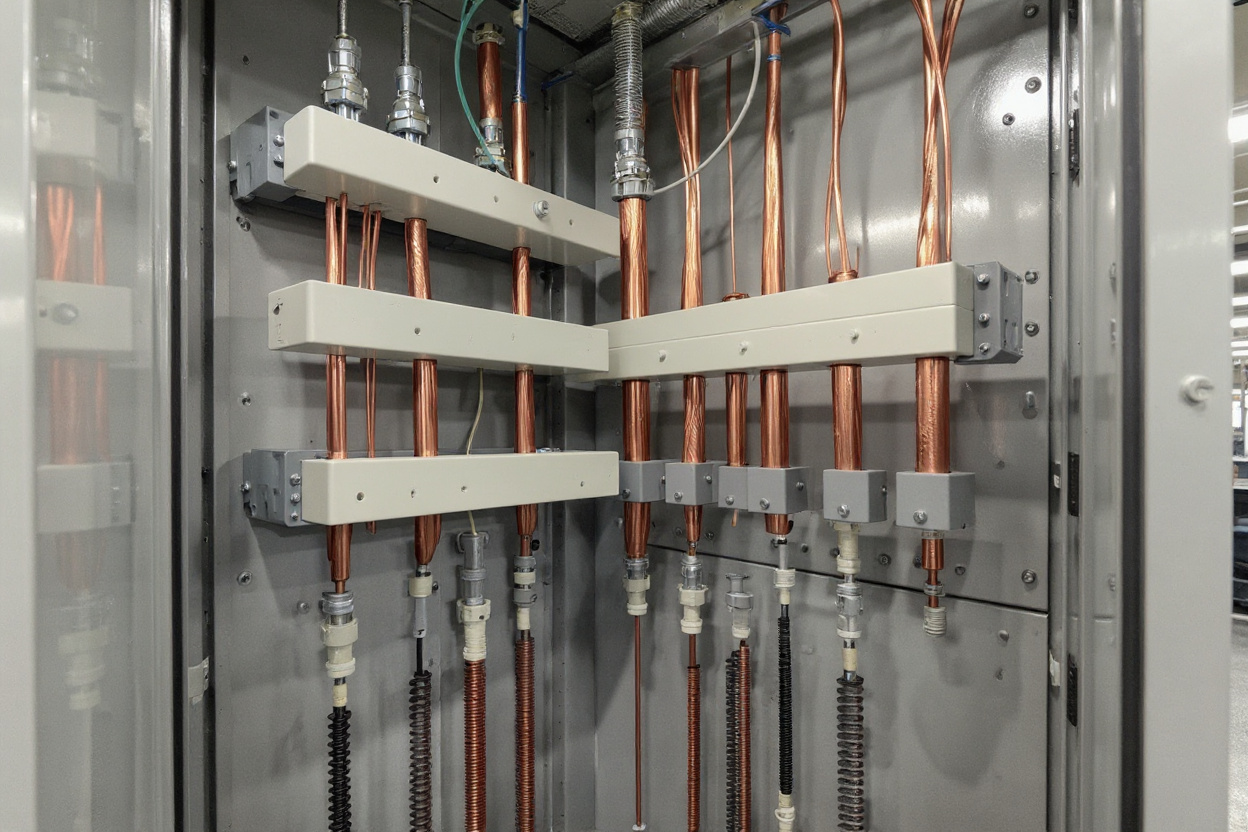

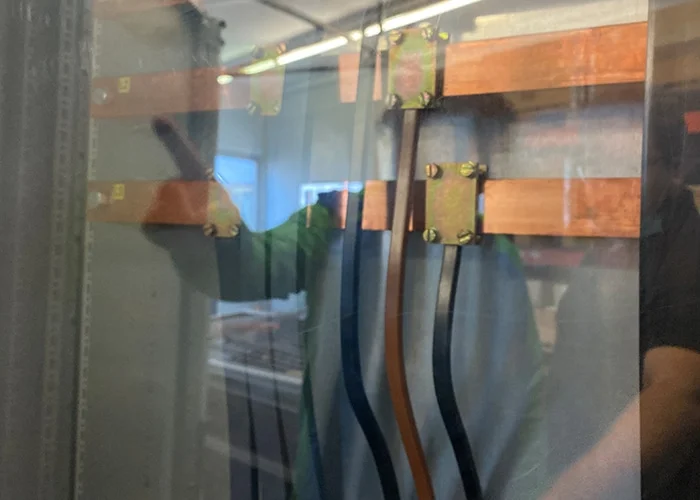

Control cabinet electrical connections with busbar systems#1.5

Control Cabinets

Flexible electrical connections for modern control systems and automation panels.

Generator and transformer electrical switchgear connections#1.5

Power Generation

Reliable connections for generators, transformers, and high-power distribution systems.

Machine switch and immersion bath electrical installations#1.5

Industrial Machinery

Durable supply lines for machine switches, immersion baths, and manufacturing equipment.

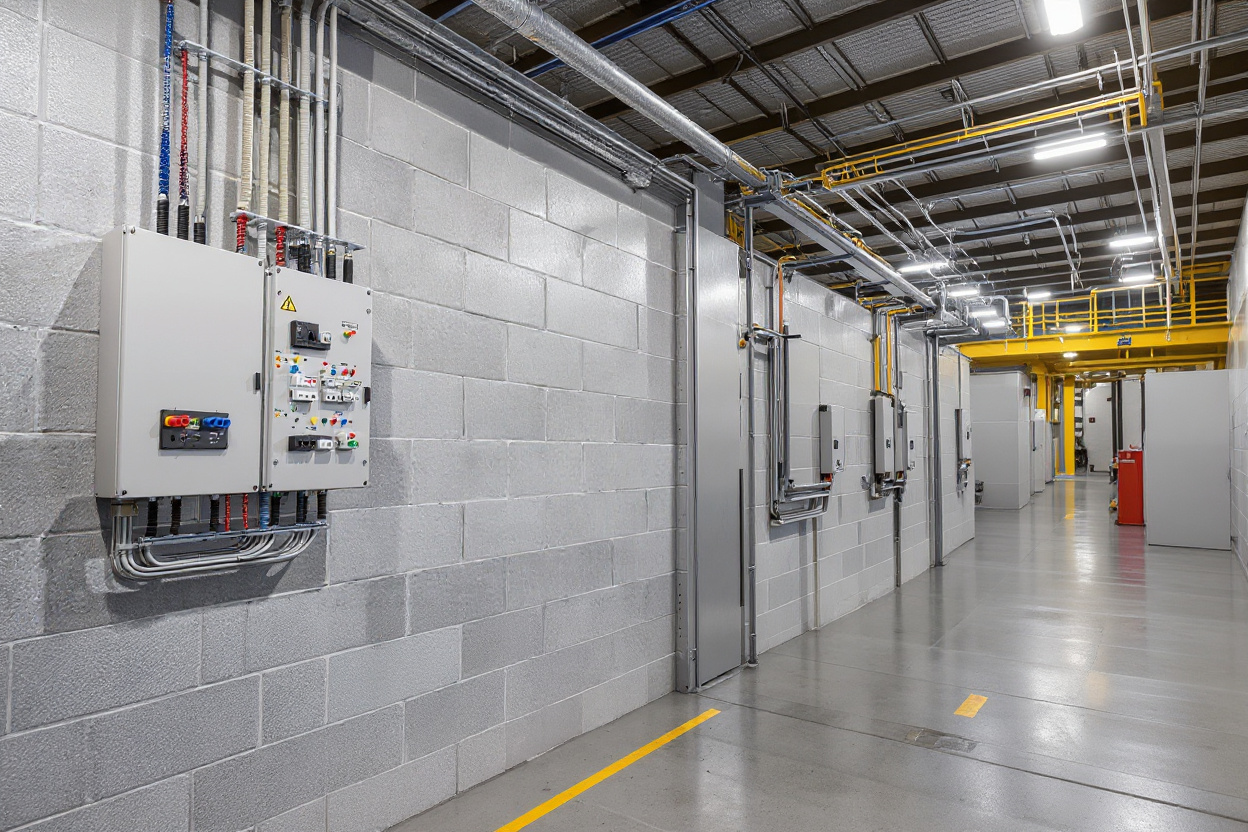

Low voltage switchgear and riser electrical installations#1.5

Low-Voltage Systems

Cost-effective solutions for switchgear risers and low-voltage distribution networks.

What Our Clients Say About Isoflexx®

Discover how engineers and technicians benefit from our innovative busbar solutions.

Installation Time Reduced by 60%

The flexibility of Isoflexx® busbars has dramatically reduced our installation time. The ability to bend and twist easily while maintaining excellent electrical performance has transformed our control panel assembly process.

Exceptional Quality and Reliability

The UL certification and robust insulation of Isoflexx® busbars give us confidence in our designs. The space-saving design allows us to create more compact panels without compromising performance.

Perfect for Construction Tolerance

Isoflexx® busbars compensate for construction tolerances beautifully. The flexibility allows us to adjust connections during installation without compromising electrical integrity or safety.

Cost-Effective Solution

The material savings from smaller conductor cross-sections and the reduced assembly time make Isoflexx® a very cost-effective choice for our electrical projects.

Excellent Heat Resistance

The temperature ratings and heat resistance of Isoflexx® busbars perform exceptionally well in our high-temperature applications, providing reliable long-term performance.

Outstanding Customization Support

The ability to get custom lengths, hole patterns, and personalized colors makes Isoflexx® perfect for our specialized automotive manufacturing equipment requirements.

Explore Our Busbar Solutions

Discover our complete range of copper busbar systems designed for diverse electrical applications.

Rigid Copper Bars

Solid copper bars for primary or secondary distribution busbars providing reliable electrical distribution.

Learn More

Insulated Flexible Copper Bars

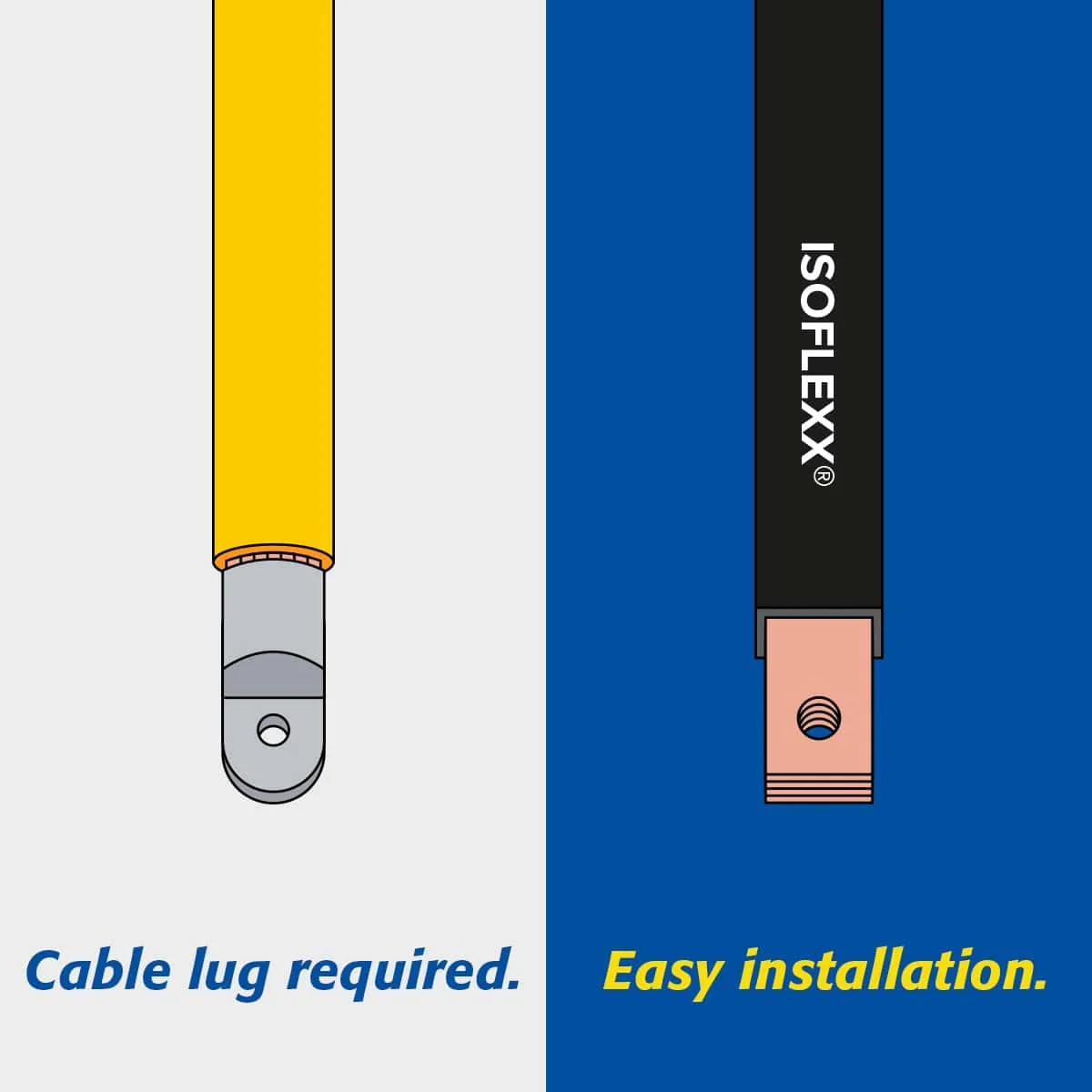

Easy setup with compact design, highly flexible and time-saving solution with no terminal lugs required.
