UL 4248-4 certified#1.0 UL 4248-4
CSA C22.2 certified#1.0 CSA C22.2
Guide IZLT certified#1.0 Guide IZLT

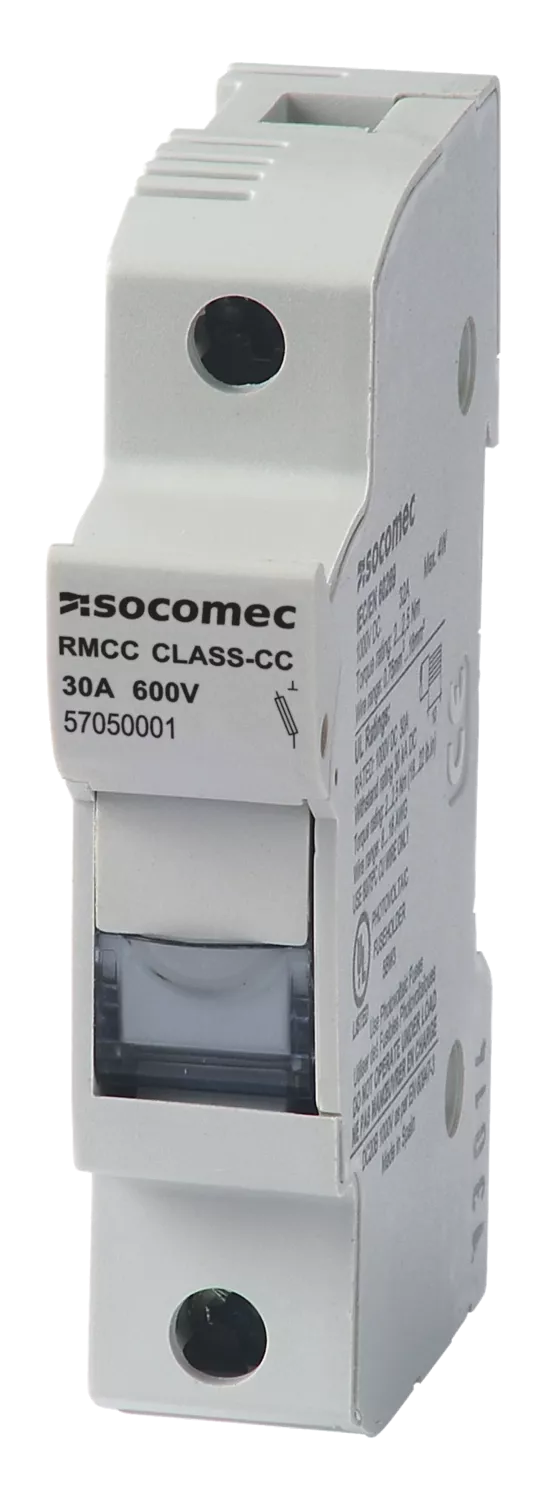

RM CC

Modular DIN rail-mounted design
LED indication available
IP20 safety protection
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Shipping: 7-10 days
Free Returns
Certifications: UL 4248-4, CSA C22.2

Technical Specifications at a Glance

Complete electrical and mechanical specifications for the RM CC modular fuse holder series.

Parameter
Specification
Rated Current
30 A at 600 V
Breaking Capacity
200 kA rms
Fuse Size
10x38 CC
Size
RM32
Available Versions
1-pole, 2-pole, 3-pole
Protection Rating
IP20
Optional Features
Fuse melting indicator (LED)
Mounting
DIN rail
Modular Design
45 mm cut-out
Country of Origin
🇫🇷 France

Engineered for Reliability

Experience superior circuit protection with advanced safety features and modular design flexibility for industrial applications.

Advanced Safety Protection

IP20 protection rating ensures safe operation by preventing accidental contact with live parts, while high dielectric strength provides excellent electrical isolation for enhanced personnel safety.

High Breaking Capacity

Exceptional 200 kA rms breaking capacity delivers reliable protection against overloads and short circuits, ensuring safe circuit isolation even under extreme fault conditions.

Modular Installation

DIN rail mounting with 45mm modular design allows flexible installation configurations, while multipolar simultaneous disconnection simplifies maintenance and enhances operational safety.

LED Status Indication

Optional LED fuse melting indicator provides immediate visual status feedback, enabling quick fault identification and reducing downtime for maintenance personnel and operators.

Frequently Asked Questions

What types of fuses are compatible with the RM CC fuse holder?
The RM CC is specifically designed for UL Class CC fuses with a 10x38 size format. These fuses provide excellent current limiting characteristics and are ideal for motor control and distribution protection applications.
Can I install the RM CC in different pole configurations?
Yes, the RM CC is available in 1-pole, 2-pole, and 3-pole versions, allowing you to select the appropriate configuration for your specific application requirements and circuit protection needs.
What is the advantage of the LED indication feature?
The optional LED indication provides immediate visual feedback when a fuse has melted, allowing for quick fault identification and reducing troubleshooting time, which minimizes system downtime and maintenance costs.
Is the RM CC suitable for industrial DIN rail installations?
Absolutely. The RM CC is specifically designed for DIN rail mounting with a modular 45mm cut-out design, making it ideal for industrial panel installations and electrical control cabinets.
What safety certifications does the RM CC have?
The RM CC is certified to UL 4248-4, Guide IZLT File E307648, and CSA C22.2 class 6225-01 File 265615, ensuring compliance with North American safety standards for industrial electrical equipment.

Versatile Applications

Trusted circuit protection solution across diverse industrial applications and electrical systems.

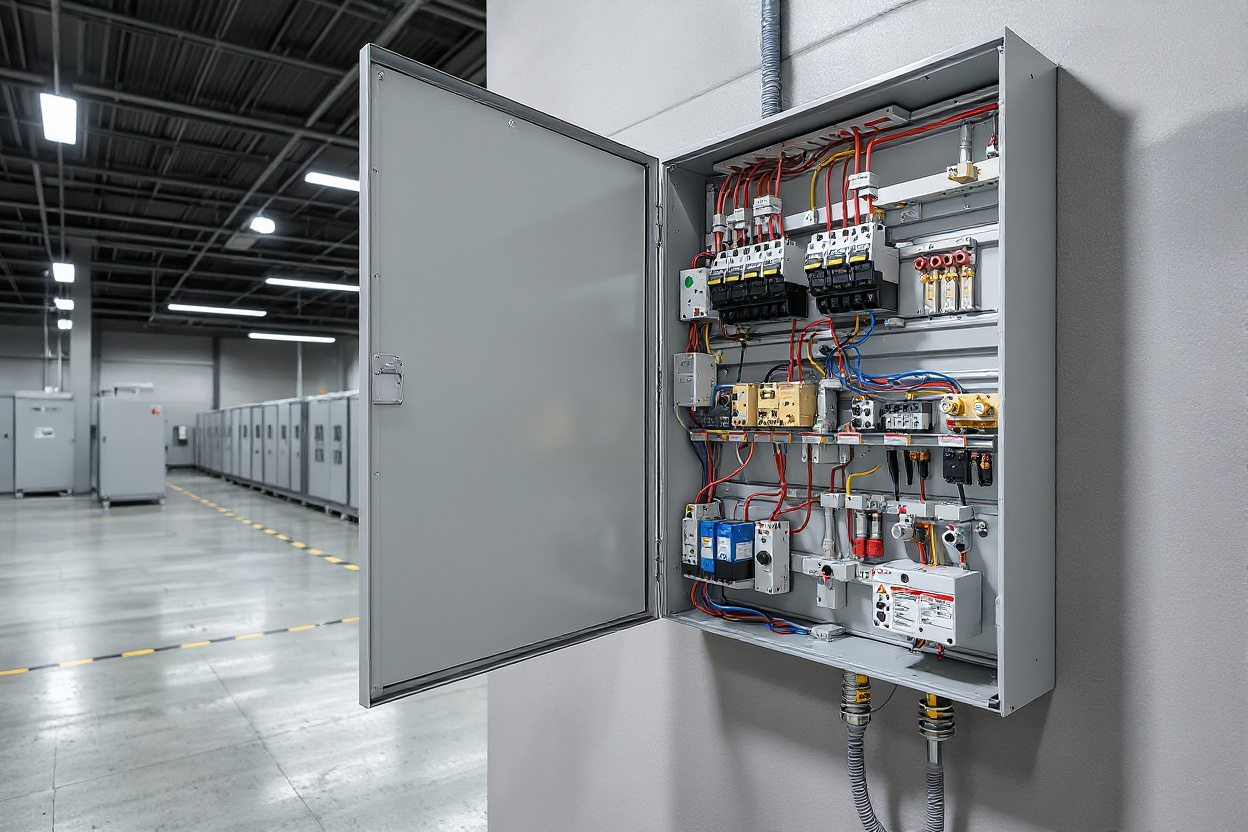

Electrical circuit protection in industrial control panels#1.5

Overload Protection

Essential safety protection against electrical overloads and short circuits in industrial control panels and distribution systems.

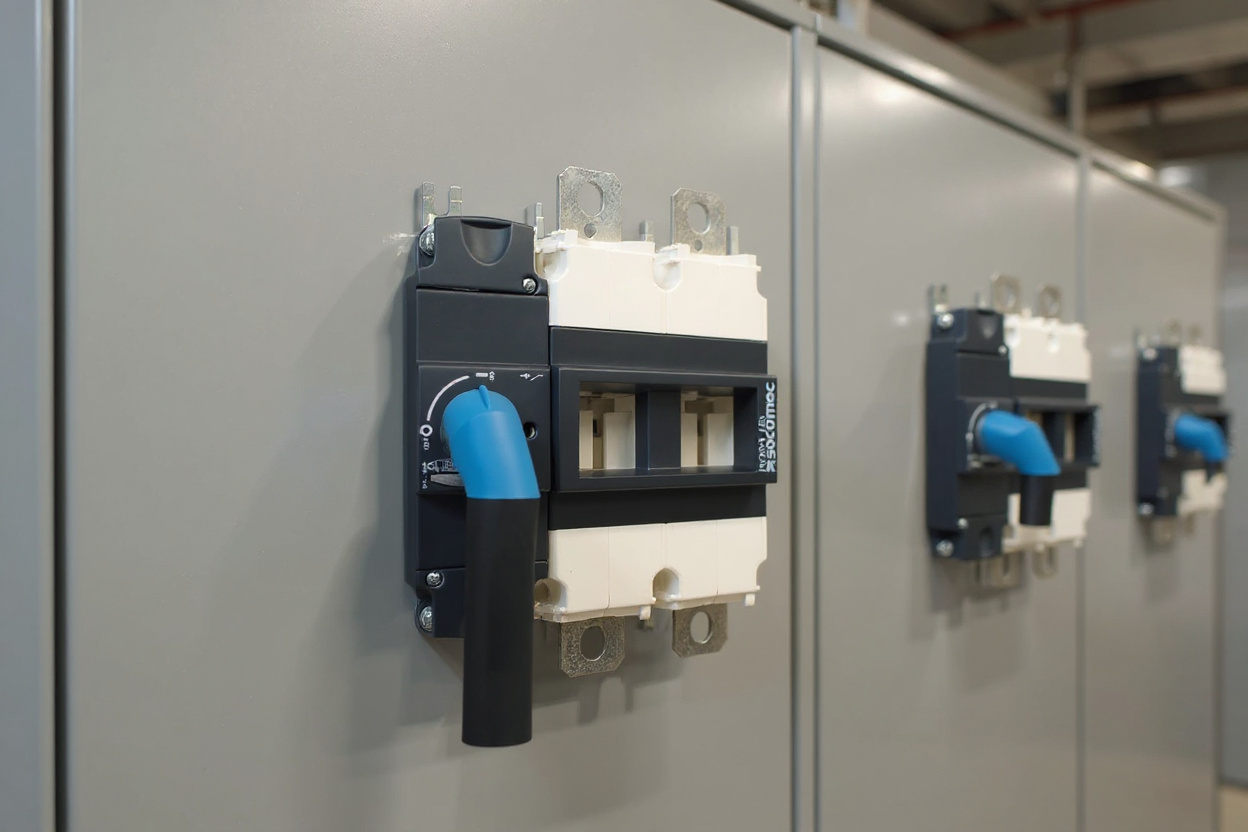

Circuit isolation and breaking systems for electrical safety#1.5

Circuit Isolation

Safe breaking and isolation of electrical circuits for maintenance operations and system protection in industrial facilities.

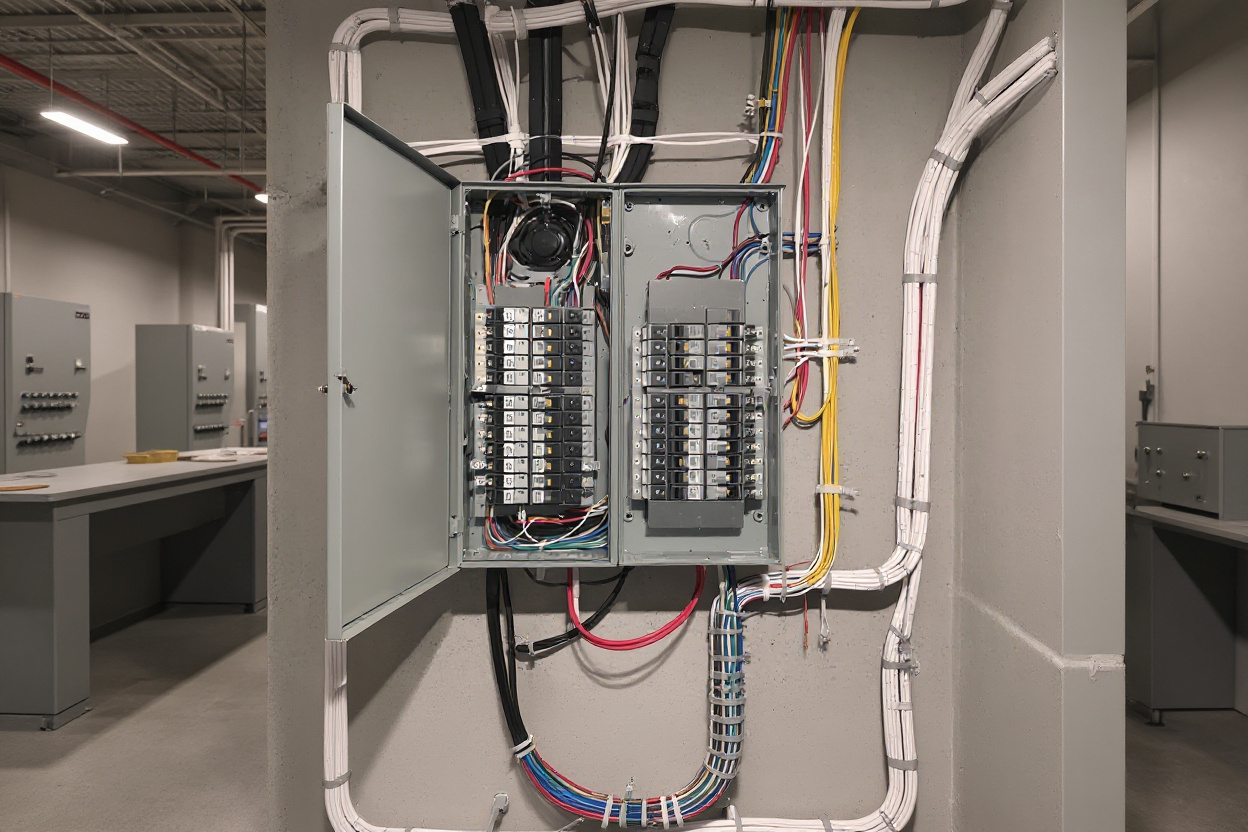

Circuit identification and labeling in electrical control systems#1.5

Circuit Identification

Clear circuit identification through integrated label holders, improving maintenance efficiency and system organization in electrical installations.
