IEC 61439-1 certified#1.0 IEC 61439-1
IEC 60865-1 certified#1.0 IEC 60865-1

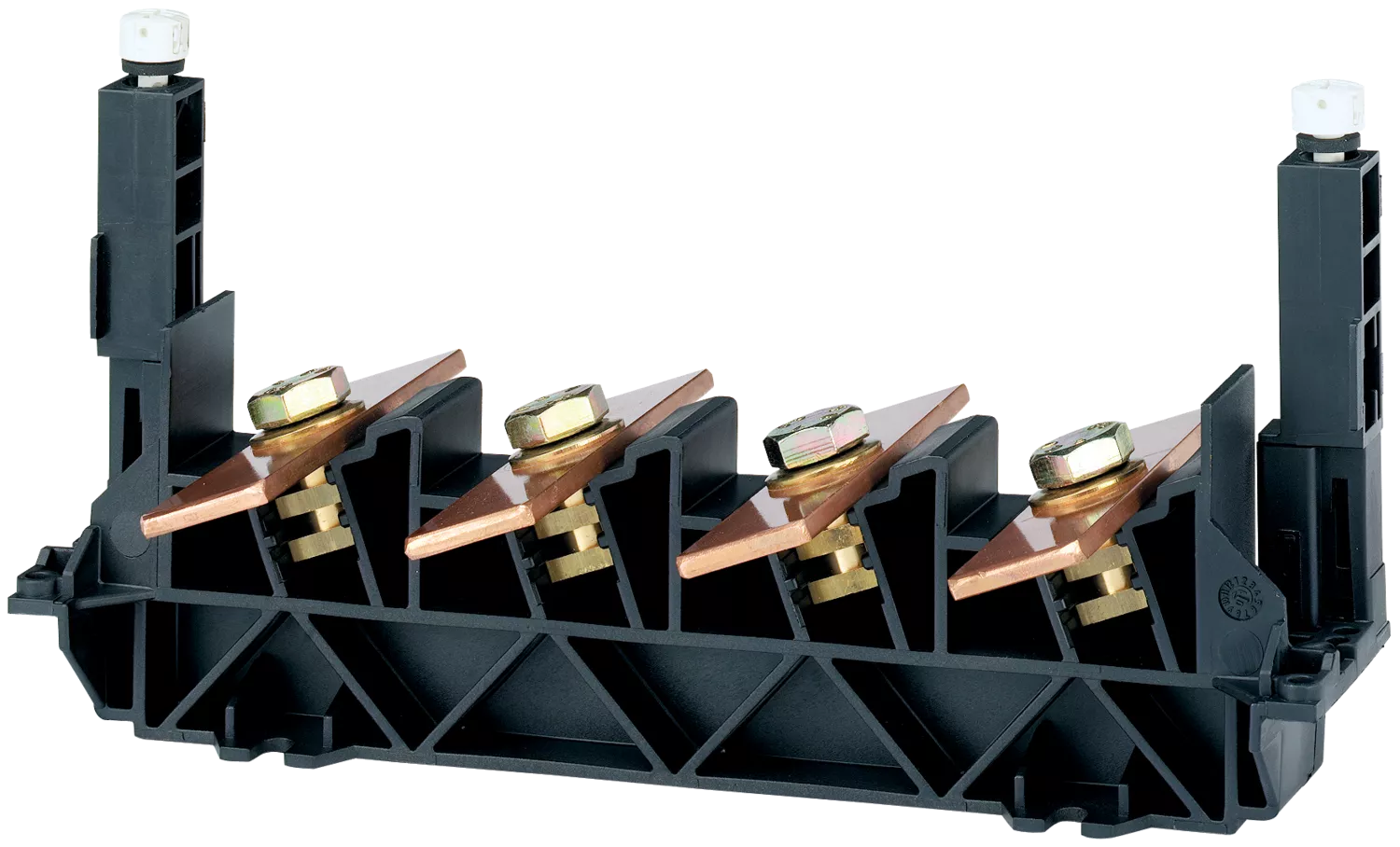

SB 44 Busbar Support

Short Circuit Tested Support
M8 Screw Connection
Thermoplastic Insulation
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Fast Territory Delivery
Certifications: IEC 61439-1, IEC 60865-1

Technical Specifications at a Glance

Detailed technical specifications and ratings for the SB 44 busbar support system.

Parameter
Specification
Section
15x3..32x6
Poles
4
Rated Voltage
690 VAC
Busbar Distance
150..1000
Item Number
50280410
Country of Origin
🇫🇷 France

Engineered for Reliable Performance

Advanced features and superior design ensure optimal busbar mounting performance in electrical enclosures.

Short Circuit Tested

Rigorously tested to hold busbars securely during short circuit conditions, ensuring electrical safety and system reliability in demanding industrial applications.

Insulating Material

Made using thermoplastic reinforced fibreglass insulating material that eliminates risks in clearance and creepage distances for optimal electrical isolation.

Robust Connection

M8 screw connection provides outstanding mechanical robustness and secure mounting for long-term reliability in industrial electrical enclosures.

Universal Compatibility

Distance compatible with all commercially available enclosures, ensuring easy installation and retrofitting across various electrical panel configurations.

IEC Certified

Meets IEC 61439-1 and IEC 60865-1 standards for safety and performance, providing compliance assurance for international electrical installations.

Frequently Asked Questions

What busbar sizes is the SB 44 compatible with?
The SB 44 busbar support is designed for copper or aluminium busbars with sections ranging from 15x3 to 32x6 millimeters, providing versatile mounting solutions for various electrical configurations.
What certifications does this busbar support have?
The SB 44 is certified to IEC 61439-1 and IEC 60865-1 standards, ensuring compliance with international electrical safety and short circuit performance requirements for professional installations.
Is the SB 44 suitable for short circuit conditions?
Yes, the SB 44 has been specifically tested to hold busbars securely during short circuit conditions, meeting IEC 60865-1 requirements for dynamic and thermal short circuit withstand capability.
What enclosures is the SB 44 compatible with?
The SB 44 features universal distance compatibility with all commercially available electrical enclosures, making it suitable for standard panel configurations and custom installations across various manufacturers.
What material is the SB 44 made from?
The SB 44 is manufactured using thermoplastic reinforced with fibreglass insulating material, providing excellent electrical insulation properties and mechanical strength for long-term electrical applications.

Versatile Applications for Electrical Systems

The SB 44 busbar support provides reliable mounting solutions across diverse electrical applications and industrial environments.

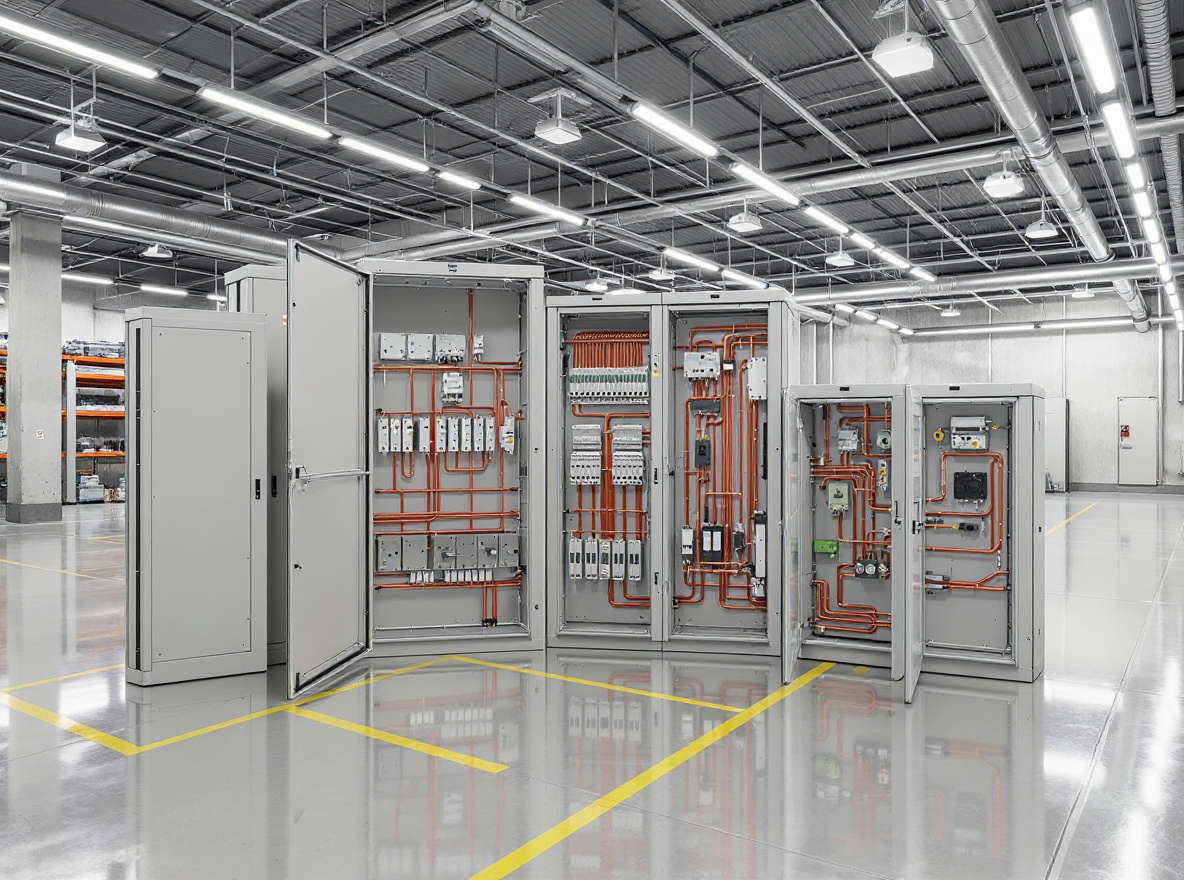

Electrical enclosures with busbar support mounting hardware for industrial control systems and panel boards#1.3

Electrical Enclosures

Essential for mounting copper or aluminium busbars in electrical enclosures, ensuring secure positioning and optimal electrical performance.

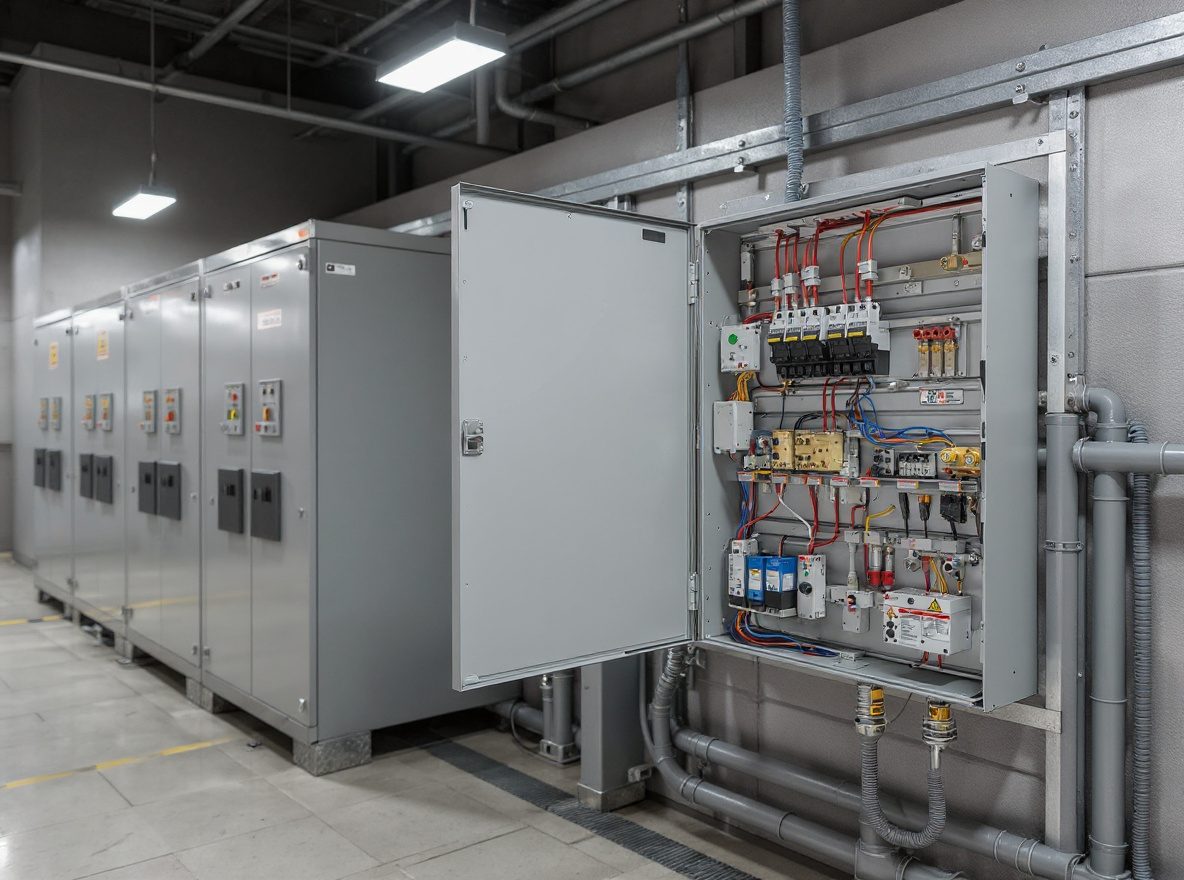

Short circuit protection systems with secure busbar mounting for electrical safety applications#1.3

Short Circuit Protection

Critical for securing busbars during short circuit conditions, providing tested reliability for electrical safety and system protection.
