UL 508 certified#1.0 UL 508 Listed
UL 98 certified#1.0 UL 98 Approved
CSA certified#1.0 CSA Certified

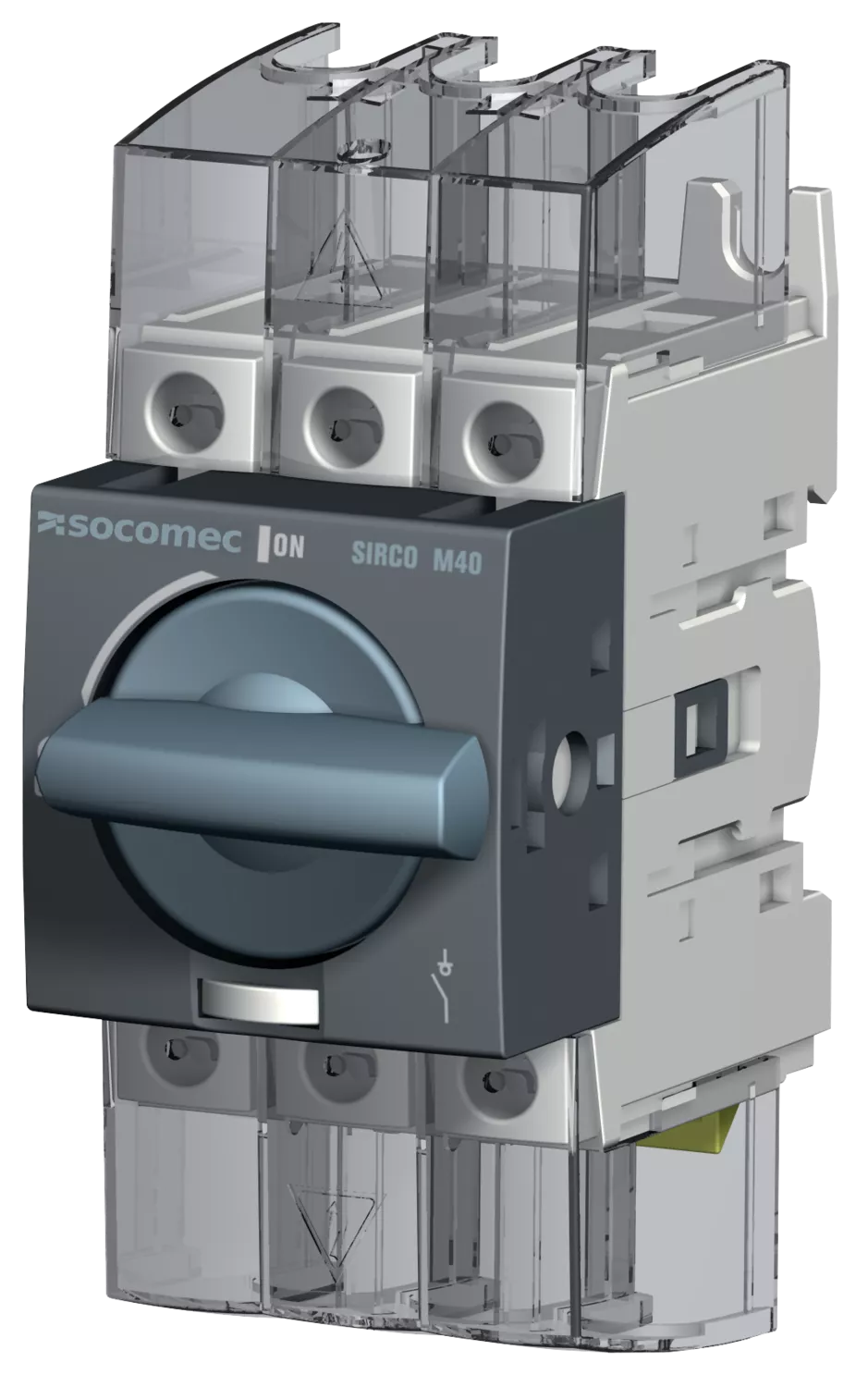

SIRCO M

Compact Non-Fusible Design
On/Off Load Switching
16-100A Ratings
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Same Day Shipping
Technical Support
Certifications: UL 508, UL 98, CSA, IEC
View Specs

Technical Specifications Overview

Detailed electrical and mechanical specifications for SIRCO M disconnect switches.

Parameter
Specification
Current Rating
16-100A
Voltage Rating
600 VAC
Number of Poles
3-Pole
Frame Sizes
M1, M2, M2 CD, M3
Operation Types
Rotary and Toggle
UL 98 Rating
30-100A Branch Circuit Disconnect
UL 508 Rating
16-100A Motor-Rated Disconnect
Control Operators
Direct (M00/M01) and External (S00, S0, S01)
Available Versions
18 Different Configurations
Country of Origin
🇫🇷 France

Built for Demanding Applications

SIRCO M switches deliver superior performance with integrated functionality and reliable operation across the most challenging industrial environments.

Safe Load Switching

Make and break operations under on and off-load conditions with complete safety isolation, ensuring reliable circuit protection in demanding applications.

Extreme Durability

Tested and approved for the most demanding applications using robust design with durable, stable materials that exceed market standards.

Integrated Functions

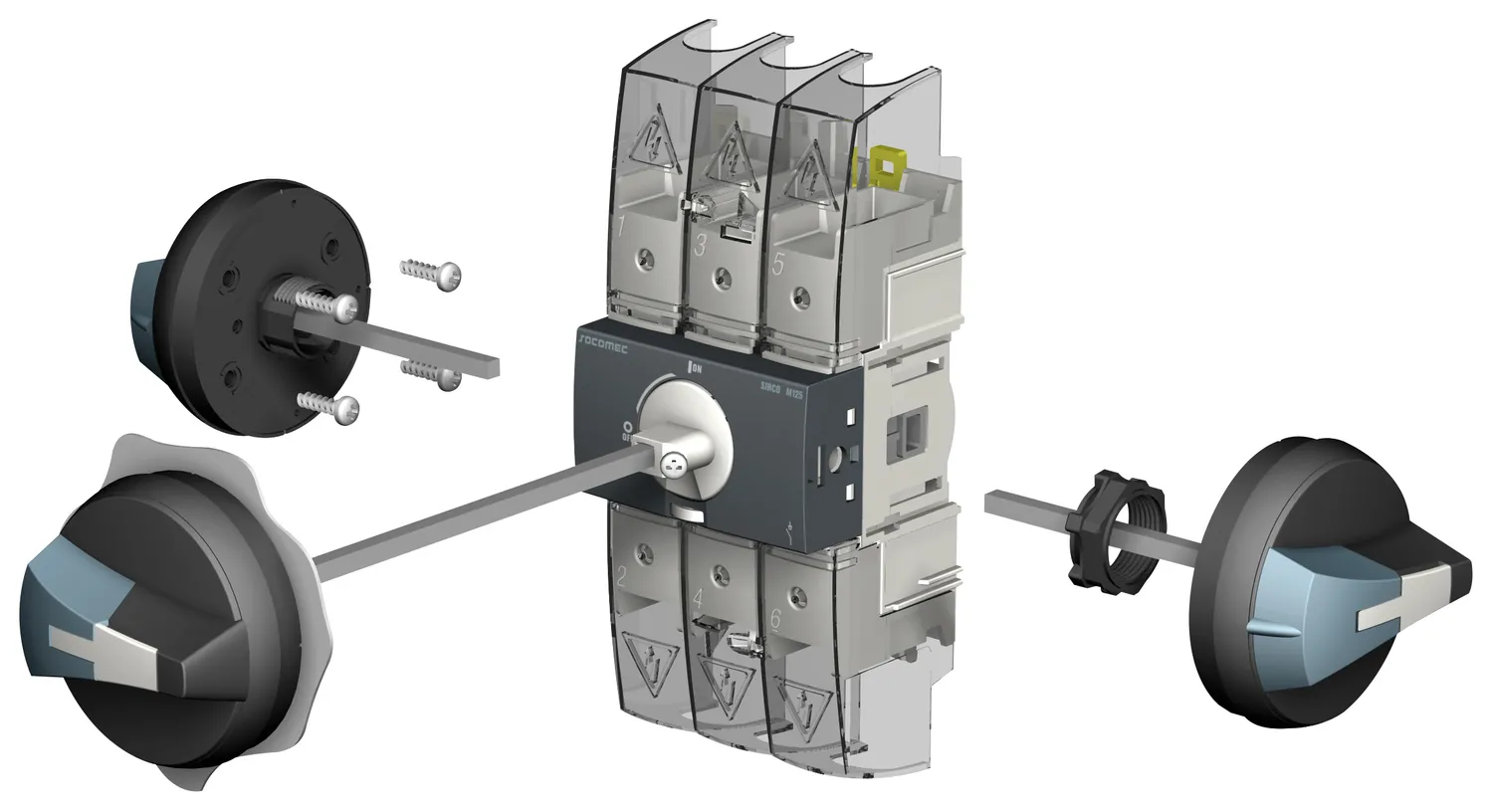

Fully integrates sectioning, breaking, control, switching, and protection functions with front, right-side, or left-side operation flexibility.

Flexible Configuration

Transform from load break switch to changeover switch with highly functional design that adapts to changing application requirements.

Wide Accessories Range

Comprehensive selection of accessories and upgrades available, providing complete customization for specific installation and operational needs.

Environmental Compliance

REACH and RoHS compliant design with PEP ecopassport available, ensuring environmental responsibility and regulatory compliance.

Frequently Asked Questions

What is the difference between UL 98 and UL 508 ratings?
UL 98 switches are rated as branch circuit disconnect switches for general use from 30-100A, while UL 508 switches are specifically designed for motor controllers and motor-rated disconnects from 16-100A.
What frame sizes are available for SIRCO M switches?
SIRCO M switches are available in M1, M2, M2 CD, and M3 frame sizes, offering 18 different versions with current ratings from 16-100A.
Can SIRCO M switches be converted to changeover switches?
Yes, the highly functional design enables transformation from load break switch to changeover switch using available conversion accessories and kits.
What operation types are available?
SIRCO M switches offer both rotary and toggle operation types with direct control operators (M00/M01) and external control operators (S00, S0, S01).
Are technical support and installation guidance available?
Yes, ValuAdd provides comprehensive technical support, installation guidance, CAD files, software tools, and resource access for all SIRCO M applications.

Versatile Applications

SIRCO M disconnect switches provide reliable switching solutions across diverse industrial and commercial applications

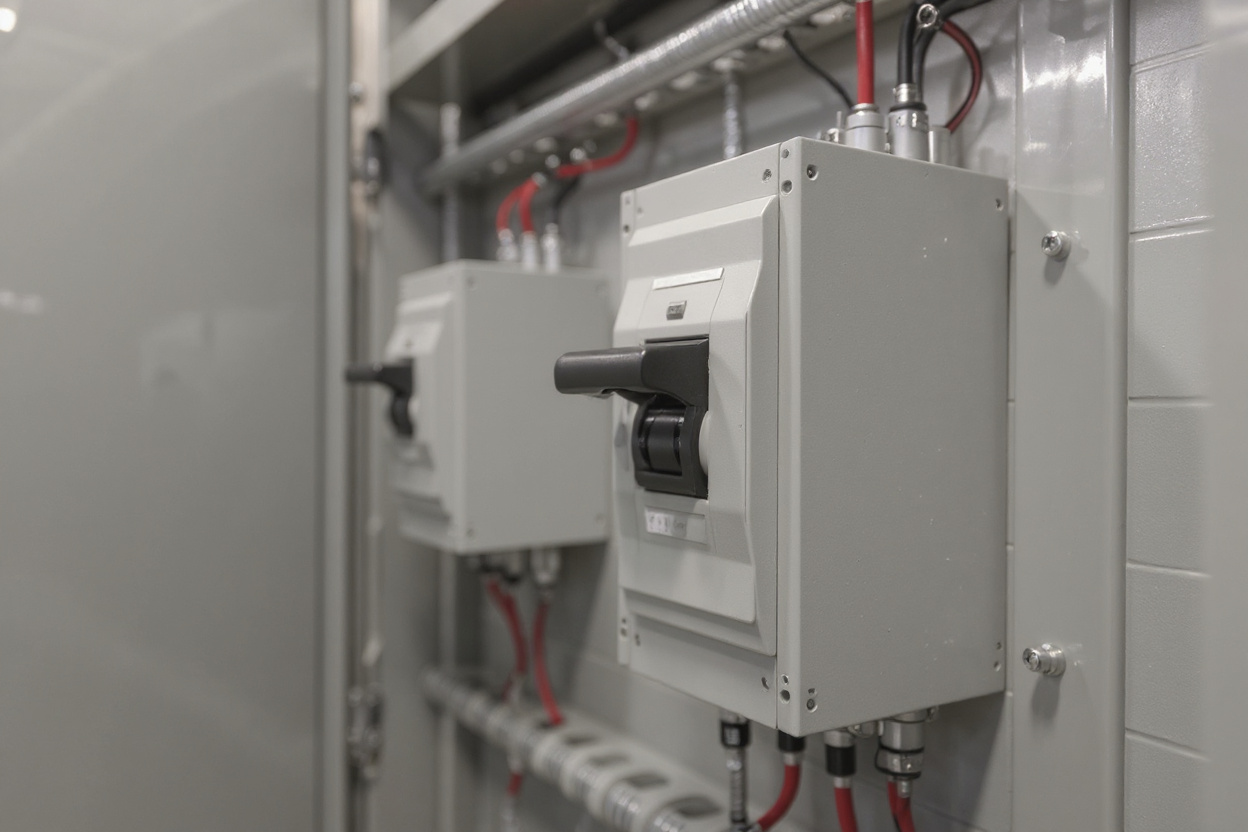

General disconnect switching applications for branch circuit protection in electrical panels and control systems#1.5

General Purpose Disconnect

UL 98 disconnect switches for branch circuit applications providing safe isolation in electrical distribution systems

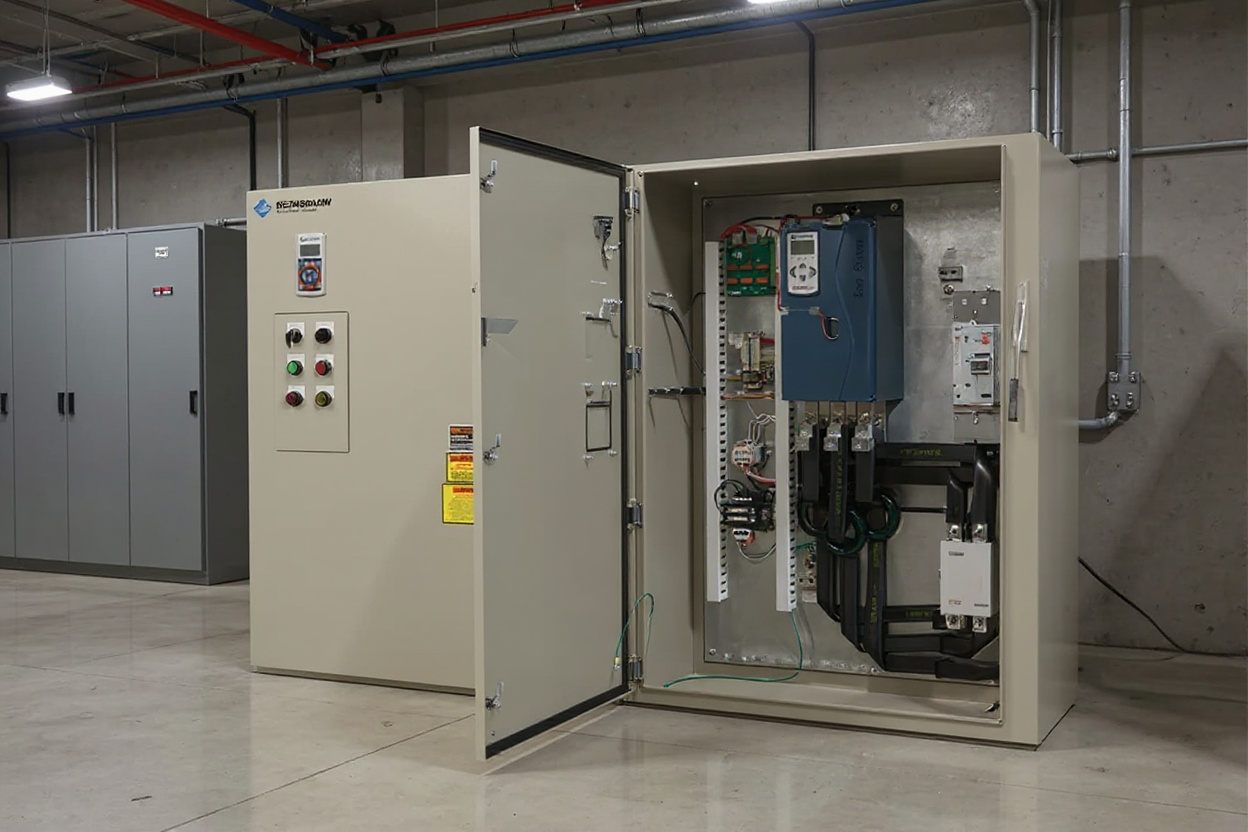

Motor control applications with disconnect switches for industrial motor starting and protection systems#1.5

Motor Control Systems

UL 508 motor-rated disconnects for motor controllers and local disconnection in industrial automation

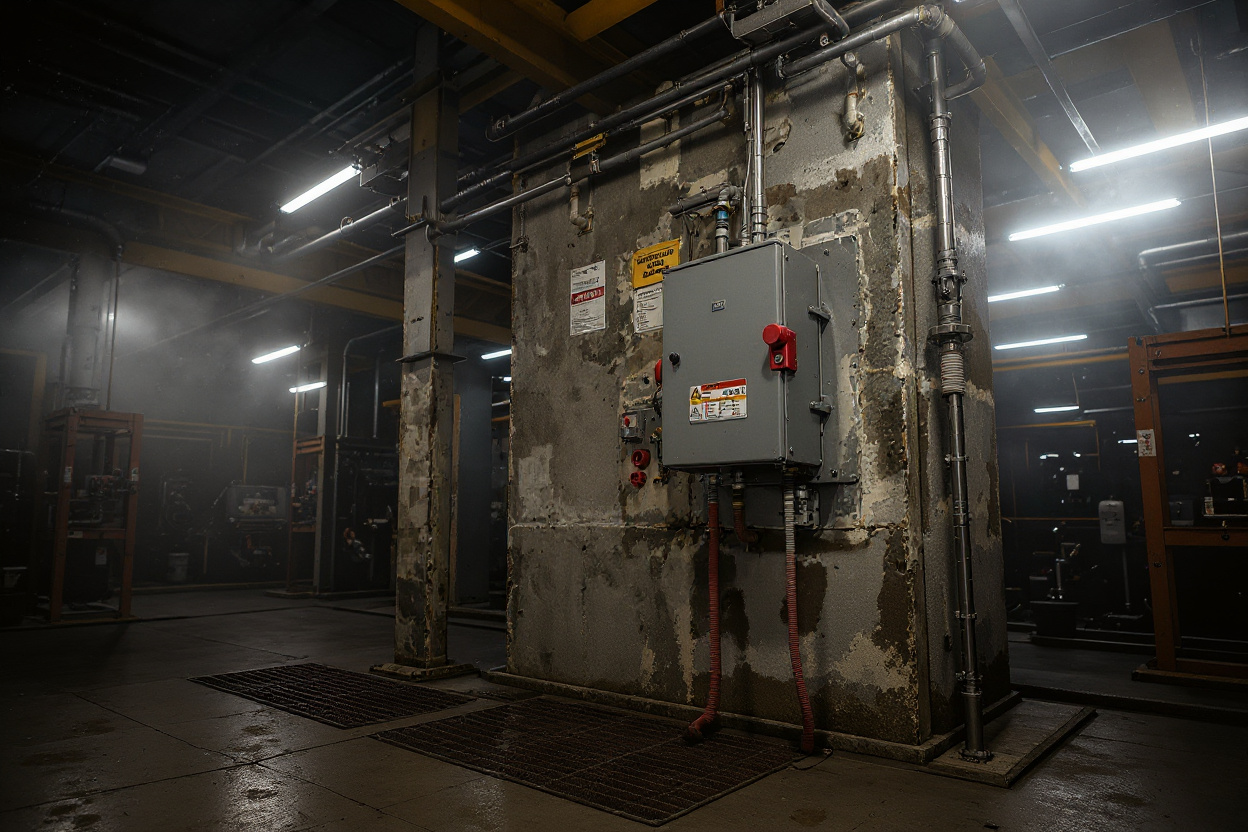

Demanding industrial environments requiring robust electrical switching equipment for harsh operating conditions#1.5

Severe Environments

Designed for the most demanding applications and severe operating conditions requiring extreme durability
