UL 4248-18 certified#1.0 UL 4248-18
CSA C22.2 certified#1.0 CSA C22.2
IEC 60269-2 certified#1.0 IEC 60269-2

RM PV

1000 VDC Rated Voltage
IP2X Fuse Protection
Modular 45-mm Design
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Support Available
Technical Documentation
Certifications: UL, CSA, IEC
View Specs

Technical Specifications Overview

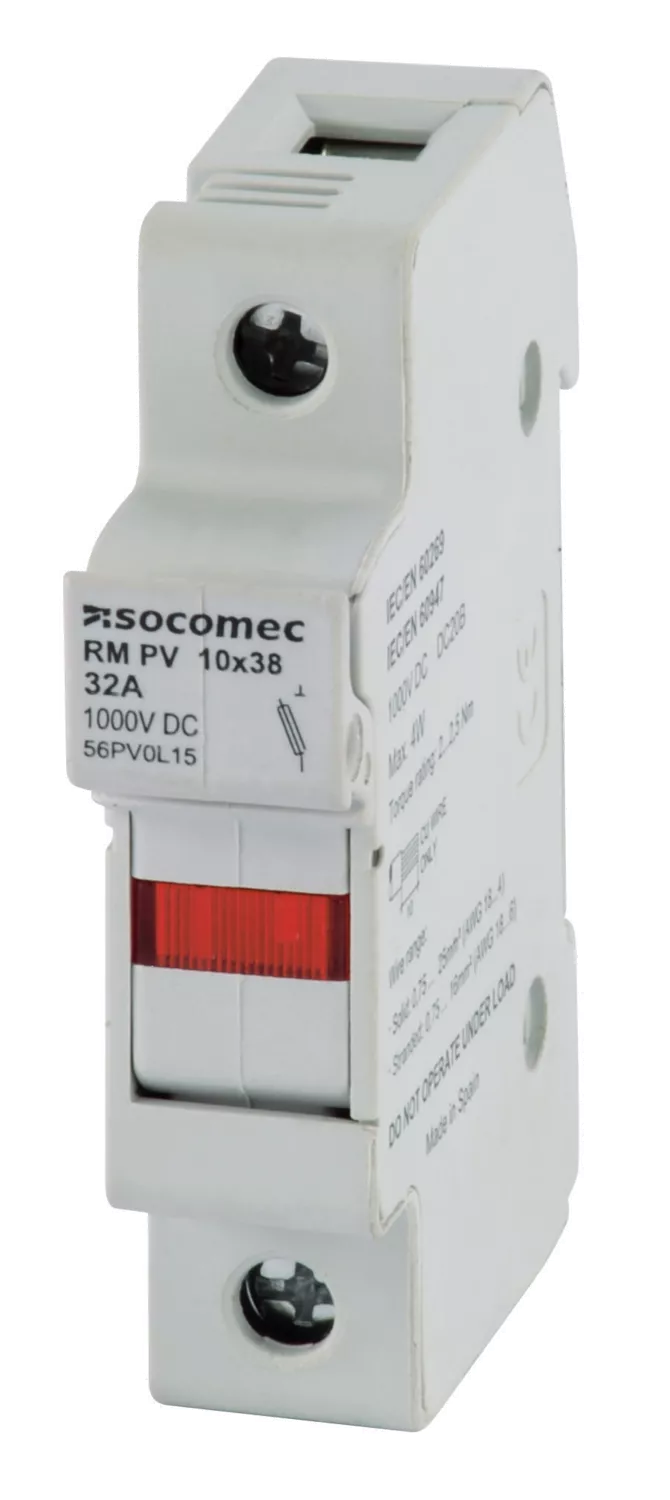

Complete technical specifications for the RM PV modular fuse holder system.

PARAMETER
SPECIFICATION
Rated Current
32A
Poles
1
Fuse Size
10x38
Size
RM32
Rated Voltage
1000 VDC
Fuse Indicator
Available with or without fuse melting indicator
IP Rating
IP2X
Module Width
45mm
Material
Self-extinguishing thermoplastic
Country of Origin
🇫🇷 France

Engineered for Solar Excellence

Advanced protection and safety features designed specifically for photovoltaic applications.

High Voltage Rating

Designed for 1000 VDC applications, providing reliable protection in high-voltage photovoltaic systems with enhanced safety margins.

IP2X Protection

Comprehensive finger-safe protection prevents accidental contact with live parts, ensuring operator safety during maintenance and installation.

Modular Design

45mm modular construction allows flexible installation configurations and easy system expansion while maintaining compact footprint.

Fire Safety

Self-extinguishing thermoplastic material meets stringent fire safety standards, providing additional protection in critical installations.

Visual Indication

Optional LED indication provides immediate visual feedback for blown fuse status, enabling rapid fault identification and maintenance.

Security Features

Lockable design with optional accessories prevents unauthorized access while maintaining easy access for qualified personnel.

Frequently Asked Questions

What voltage applications is the RM PV suitable for?
The RM PV is designed for photovoltaic applications up to 1000 VDC, making it ideal for solar installations requiring high-voltage protection and reliable disconnection capabilities.
Can I use this with different fuse types?
The RM PV is specifically designed for cylindrical gPV fuses with 10x38mm dimensions, ensuring optimal protection for photovoltaic applications up to 30A.
What safety certifications does this product have?
The RM PV is certified to UL 4248-18, CSA C22.2, and IEC 60269-2 standards, ensuring compliance with international safety and performance requirements.
How does the modular design benefit installation?
The 45mm modular cut-out design allows flexible configuration, easy system expansion, and simplified panel layout while maintaining compact installation requirements.
Is blown fuse indication available on all models?
The RM PV is available with or without blown fuse LED indication, allowing you to choose the option that best fits your application requirements and budget.

Versatile Solar Applications

Reliable protection across diverse photovoltaic installations and energy storage systems.

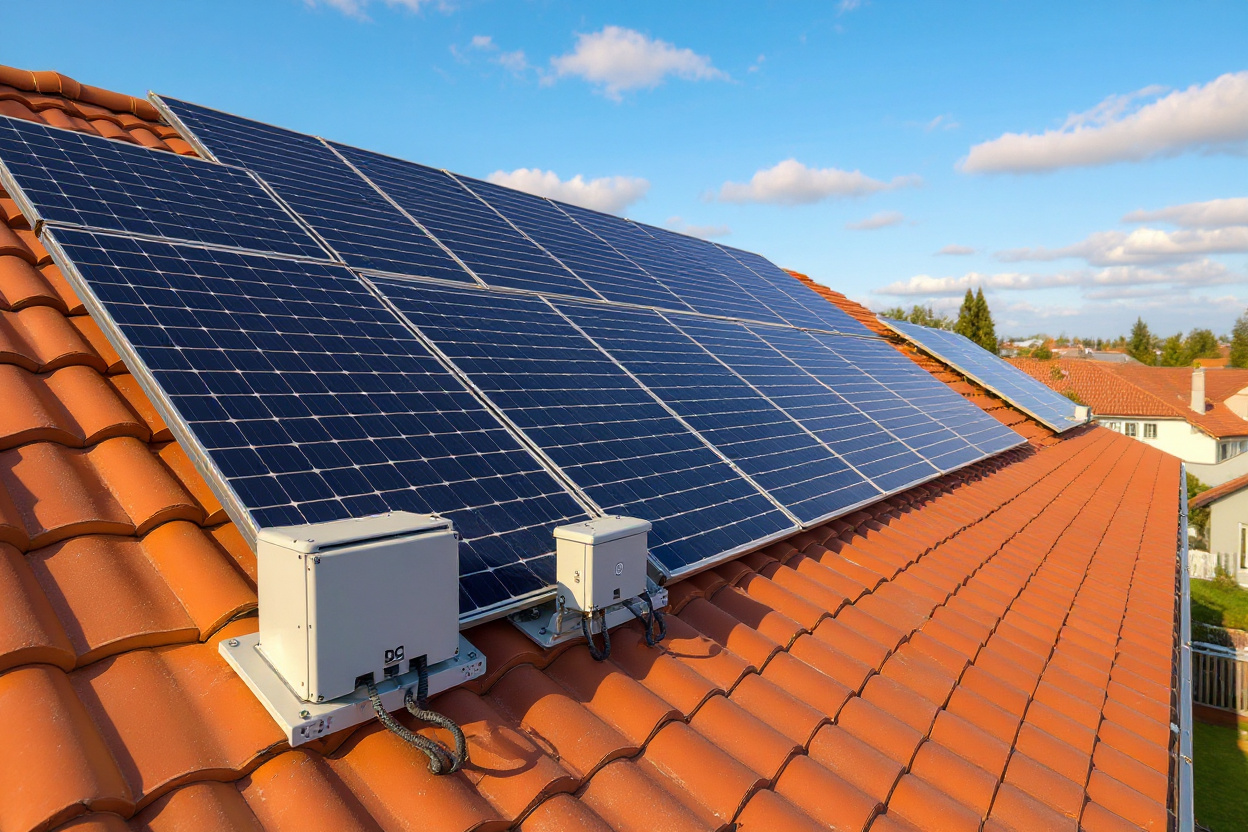

Photovoltaic solar panel installations with DC protection systems#1.6

Photovoltaic Applications

Essential overcurrent protection for solar panel installations, ensuring safe operation and preventing damage from electrical faults.

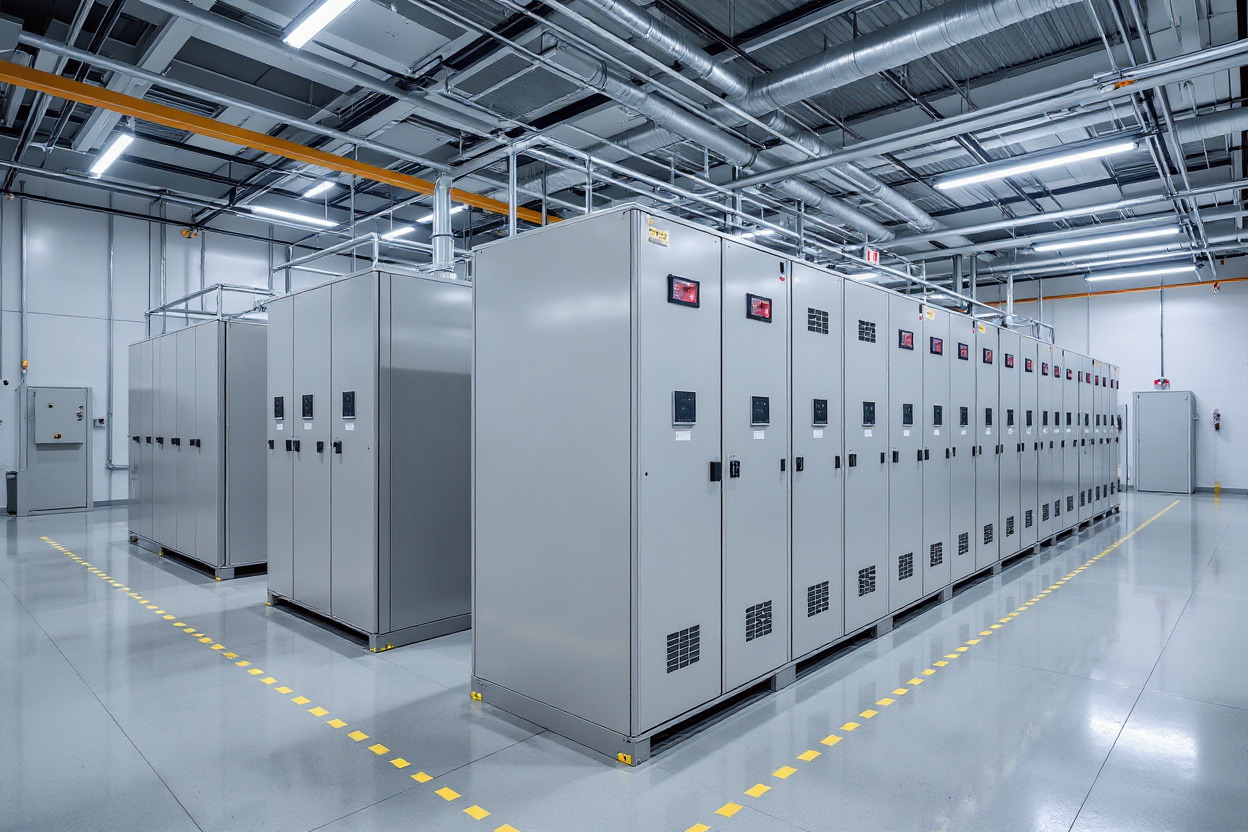

DC power systems and energy storage installations with safety protection#1.6

DC/PV/ESS Applications

Reliable protection for DC power systems, photovoltaic arrays, and energy storage systems with high-voltage safety requirements.

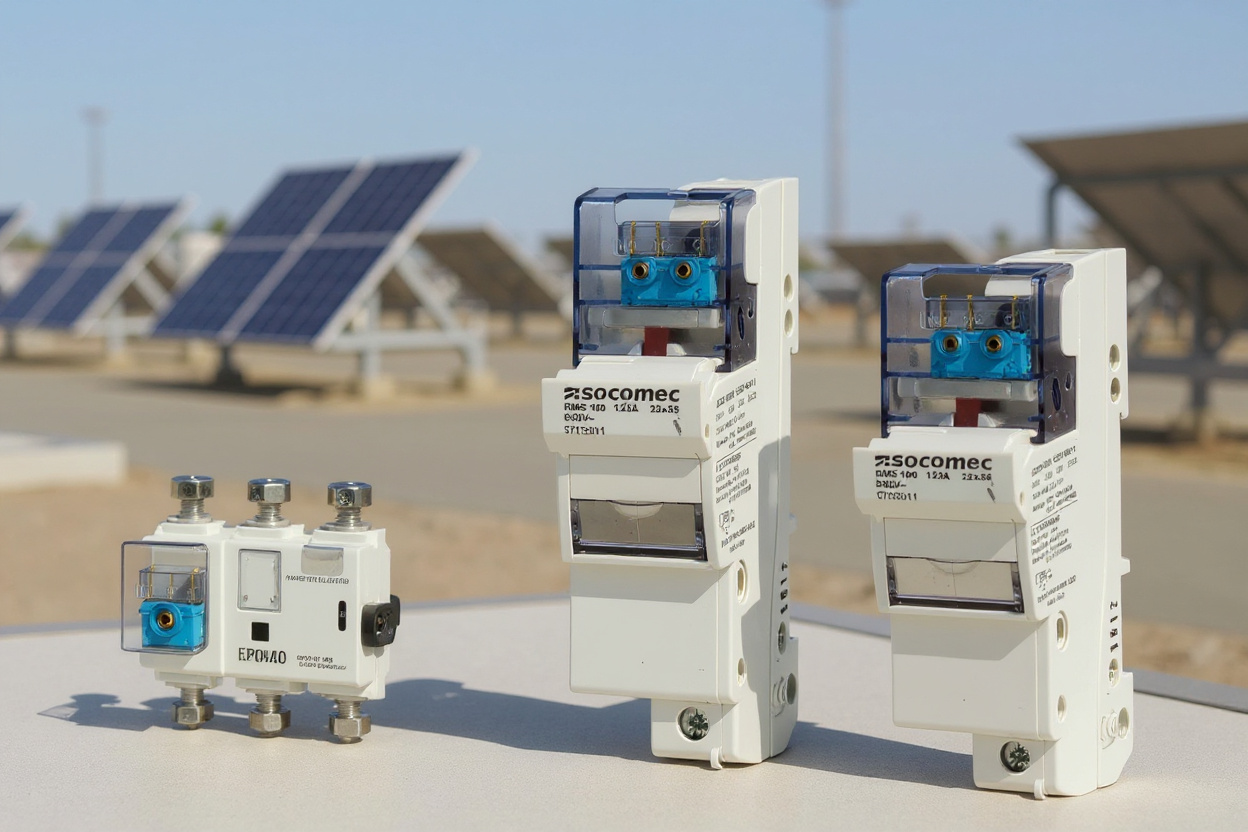

Solar installation overcurrent protection with fuse holders and safety systems#1.6

Solar Installation Protection

Comprehensive overcurrent protection for solar installations, preventing damage and ensuring long-term system reliability and safety.

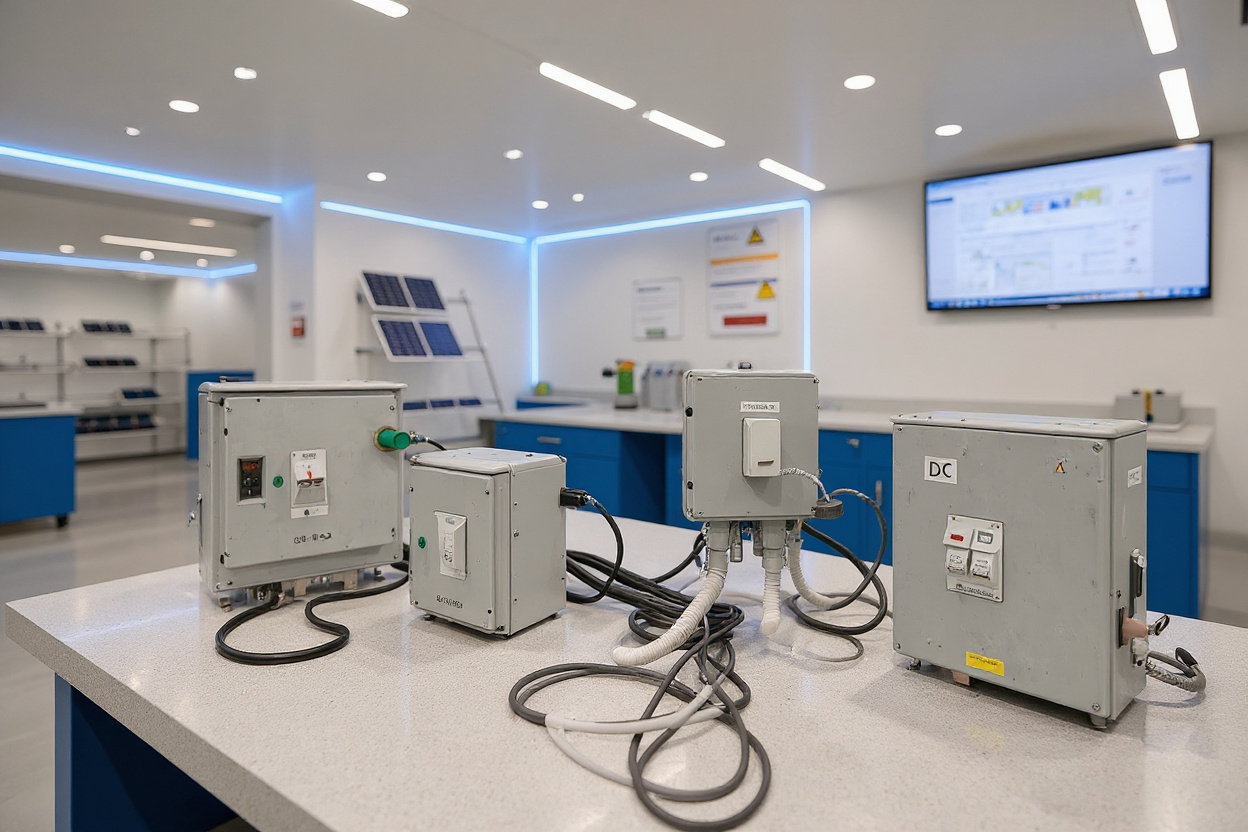

Photovoltaic reverse current protection systems and safety equipment#1.6

Reverse Current Protection

Specialized protection against reverse currents in photovoltaic systems, preventing backfeed and ensuring safe system operation.
