ENCLOSED FUSERBLOC

High Breaking Capacity Protection
Door Interlocking Safety Feature
Replace Fuse Only System
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Territory-Based Service
Certifications: UL489, UL98, CSA, UL508A

Complete Technical Specifications

Detailed technical parameters and specifications for the ENCLOSED FUSERBLOC switch series across all frame sizes and current ratings.

Parameter
Specification
Current Range
30A to 800A
Frame Sizes
1-8
Number of Poles
3
UL489 Certification
Frame sizes 1 and 2
UL98 Certification
Frame sizes 3 to 8
Safety Features
Door interlocking, 3 padlock capability
Terminal Type
Large terminals
Handle Design
Robust and ergonomic with position indication
Environmental Compliance
REACH and RoHS compliant
Country of Origin
🇫🇷 France

Engineered for Industrial Excellence

Delivering superior protection, safety, and reliability for critical industrial electrical systems with advanced switching technology and comprehensive safety features.

High Breaking Capacity

Superior protection against overcurrent conditions with exceptional breaking capacity and high short-circuit rating for demanding industrial applications.

Advanced Safety Features

Door interlocking in ON position, padlock capability in OFF position, and override features ensure maximum personnel safety during operation and maintenance.

Cost-Effective Maintenance

Replace only the fuse, not the entire protection system, reducing maintenance costs and extending installation lifespan with minimal downtime.

Certified Compliance

UL489, UL98, and CSA certified with REACH and RoHS compliance ensuring regulatory approval for North American industrial installations.

Ergonomic Design

Robust and ergonomic handle with clear ON/OFF position indication and large terminals for easy installation and reliable operation.

Reliable Switching

Proven switching technology with fusible disconnect capability ensuring dependable power control for drives, motors, and industrial processes.

Frequently Asked Questions

What are the key safety features of the ENCLOSED FUSERBLOC?
The ENCLOSED FUSERBLOC features door interlocking in ON position, padlocking capability in OFF position, override door interlock functionality, clear ON/OFF position indication, and can accommodate up to 3 padlocks for enhanced personnel safety during maintenance operations.
What current ranges and frame sizes are available?
The ENCLOSED FUSERBLOC is available in current ranges from 30A to 800A across frame sizes 1-8, with 3-pole configurations. Specific models include 30A, 60A, 100A, and 200A variants with different frame size certifications.
What certifications does the ENCLOSED FUSERBLOC have?
The product is certified to UL489 (frame sizes 1-2), UL98 (frame sizes 3-8), CSA22.2 standards, and UL508A. It is also REACH and RoHS compliant for environmental safety requirements.
Can I replace just the fuse or do I need to replace the entire unit?
One of the key advantages is that you only need to replace the fuse, not the entire protection system. This significantly reduces maintenance costs and extends the installation lifespan while minimizing downtime.
What industrial applications is the ENCLOSED FUSERBLOC suitable for?
The ENCLOSED FUSERBLOC is ideal for industrial power availability applications and protection of drives and motors in manufacturing plants, OEM equipment, and industrial automation systems requiring reliable overcurrent protection.

Versatile Industrial Applications

Engineered for critical power protection across diverse industrial sectors requiring reliable overcurrent protection and safe switching operations.

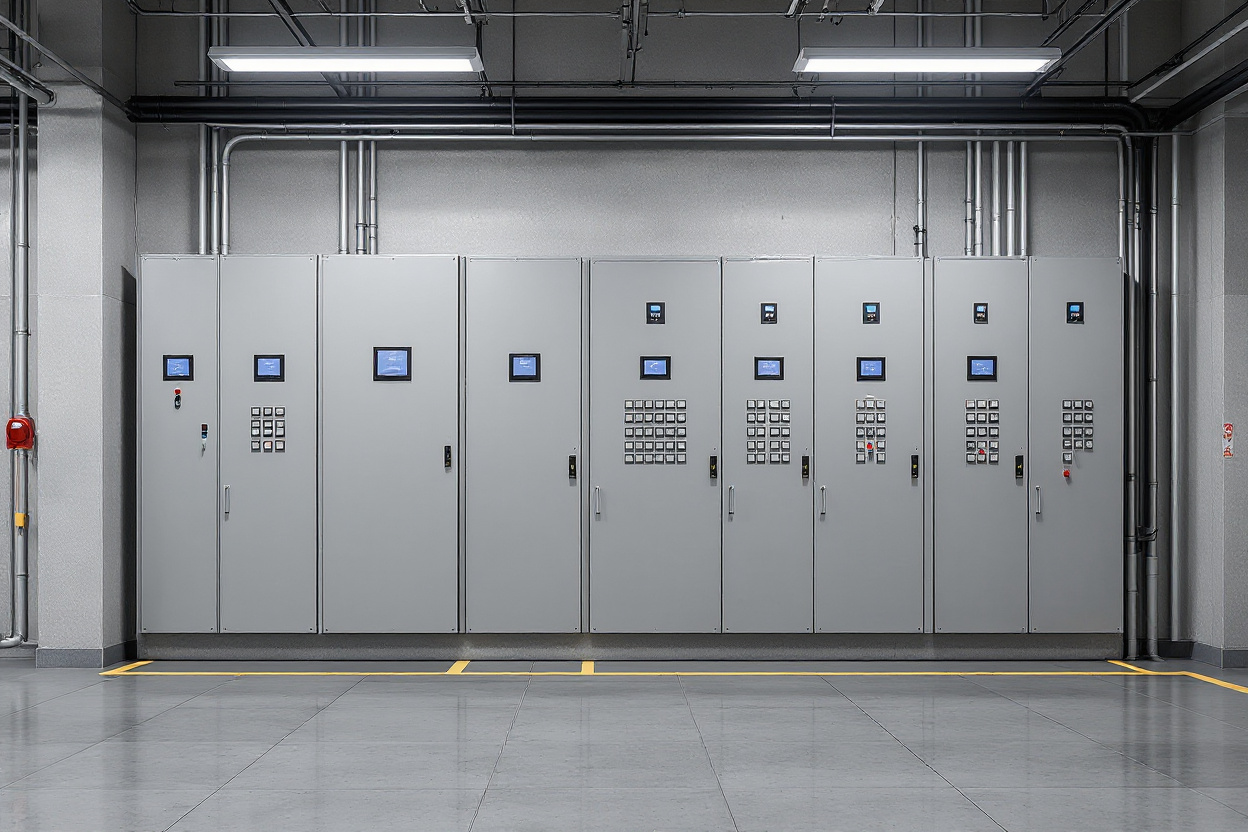

Industrial manufacturing power systems#1.6

Industrial Power Systems

Critical power availability and protection for industrial processes, ensuring continuous operation of manufacturing equipment and production lines with reliable overcurrent protection.

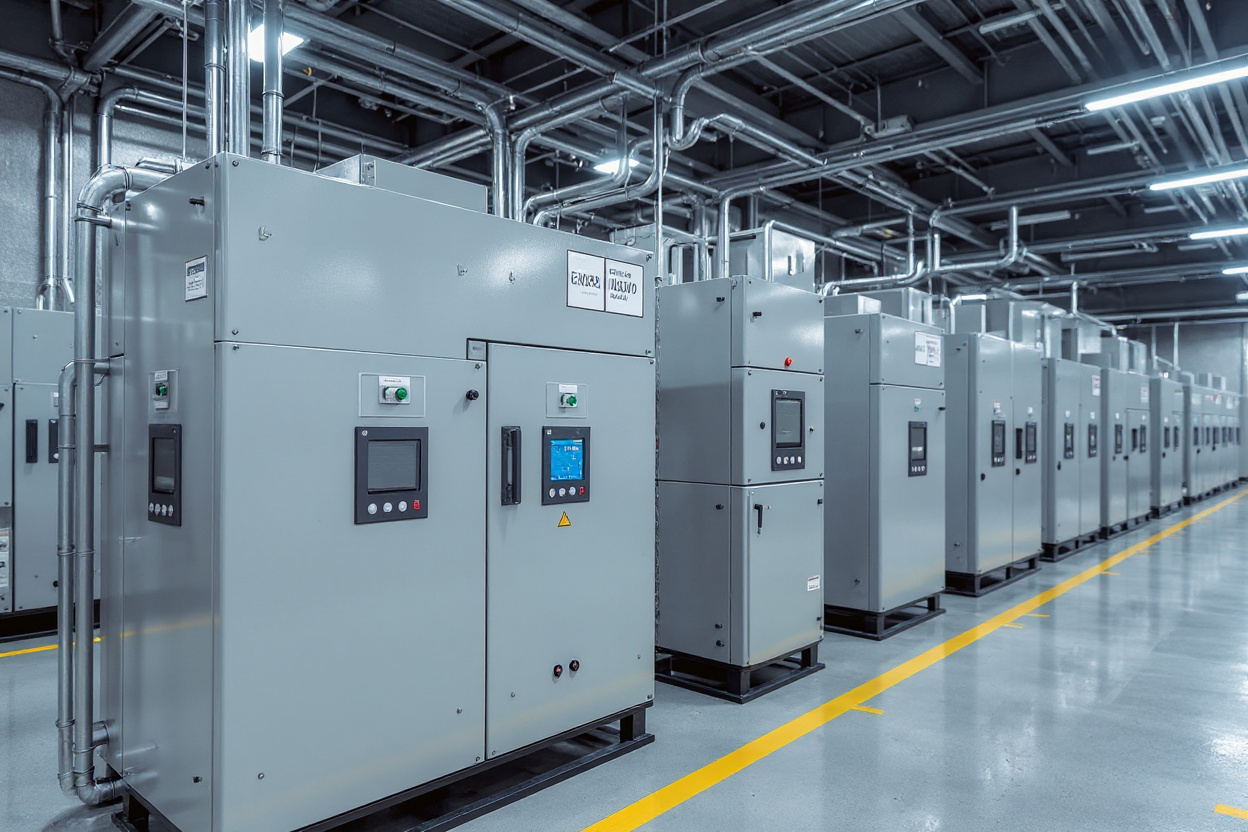

Motor drive protection systems in industrial automation#1.6

Motor & Drive Protection

Specialized protection for electric drives and motors in automation systems, providing safe switching and overcurrent protection for precision motor control applications.
